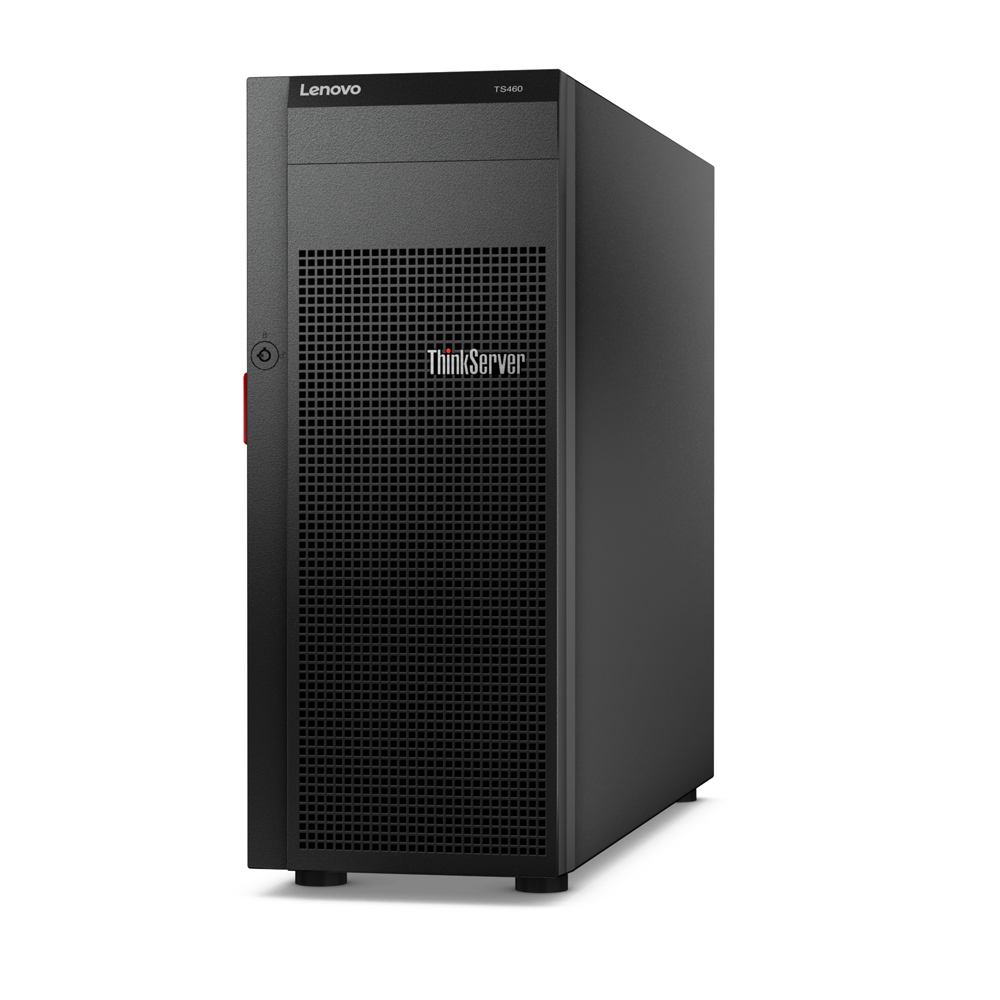

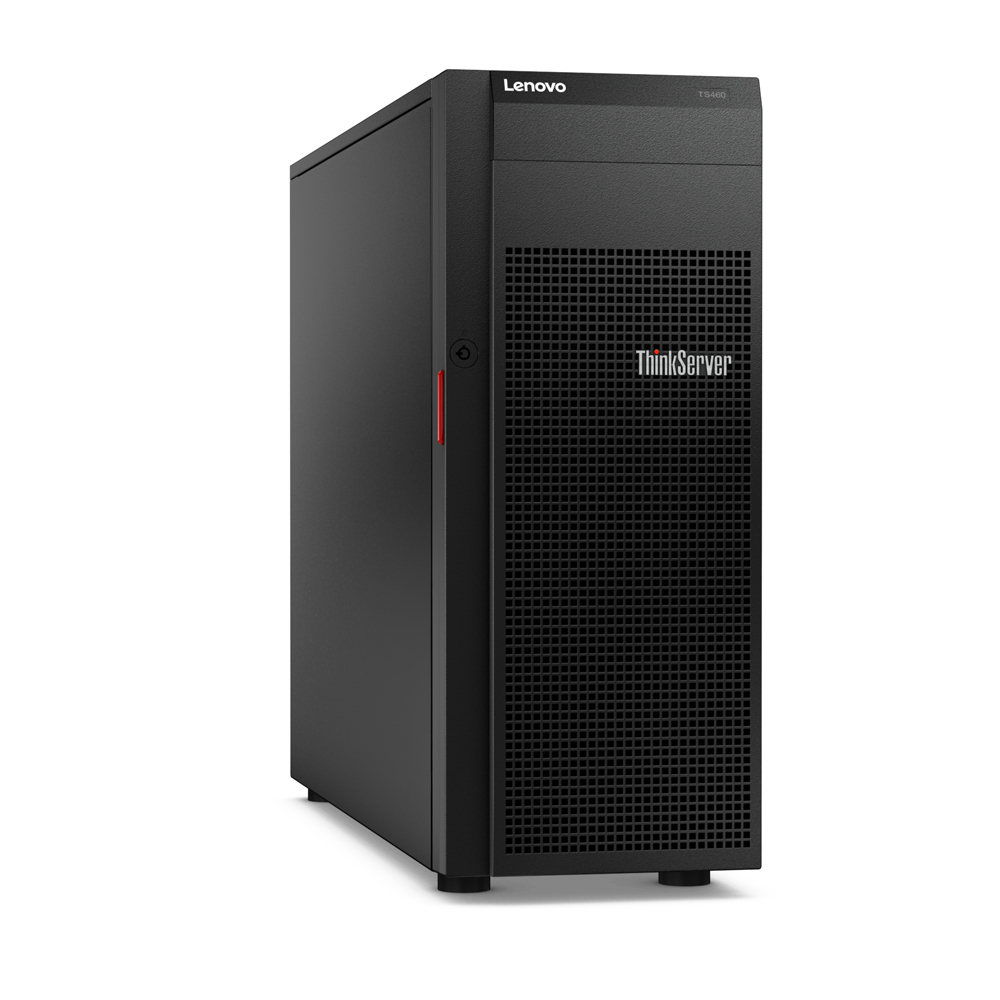

ThinkServer TS460 70TT 4U Xeon E3-1220V5 / 8GB DVD Raid520i (70TT000DEA)
ITCurry #: M852FX56 | Article #: 70TT000DEA-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Flexible and Scalable
The Lenovo ThinkServer TS460 offers flexibility in configuration: a choice of processors, including enterprise-class Intel® Xeon® E3-1200 Processor v5 series, as well as Core® i3 and Pentium® processors. Up to 64GB of ECC 2133MHz DDR4 UDIMM memory capacity enables you to run larger workloads, complete them faster, and virtualize for more efficient server usage.
Storage options include combinations of 5.25-inch optical/tape drives, 3.5-inch HDDs, and 2.5-inch HDDs/SSDs, plus support for an M.2 SSD. The 64TB of hot-swap SAS/SATA storage capacity is the industry’s largest for an entry tower server. The TS460 is ideal for storage-intense workloads and supports all major server operating systems for complete flexibility.
Enterprise Quality and Manageability
Enterprise-quality features include an IPMI 2.0-compliant ThinkServer Management Module (TMM), WebUI support, Lenovo XClarity software for easy centralized management, and a dedicated Ethernet port for systems management.
Availability and security options include hot-swap drives; 6Gb and 12Gb hardware RAID; hot-swap/redundant power; ECC memory; multiple 1Gb/10Gb Ethernet adapters with failover support; internal LTO tape, RDX cartridges, and rewritable DVDs for backup; and an optional TPM module.
Remote/Branch Office Use
The TS460 is optimized for remote office/branch office (ROBO) use. Its office-quiet acoustics and compact size (suitable for deskside or under-desk deployment) are perfect for an office environment, and the combination of energy-efficient processors, 1.2V DDR4 memory, and 80 PLUS Gold (up to 92% efficient) power supplies saves you money and helps the environment.
| Processor | |
| Processorfabrikant | Intel |
| Processorfamilie | Intel© Xeon© E3 v5 |
| Processormodel | E3-1220V5 |
| Frequentie van processor | 3 GHz |
| Maximale turbofrequentie van processor | 3,5 GHz |
| Aantal processorkernen | 4 |
| Processor cache | 8 MB |
| Geheugenkanalen ondersteund door processor | Dual |
| Aantal ge‹nstalleerde processoren | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| Systeembus | 8 GT/s |
| Processor socket | LGA 1151 (Socket H4) |
| Processor lithografie | 14 nm |
| Processor aantal threads | 4 |
| Processor operating modes | 64-bit |
| Stepping | R0 |
| Bus type | QPI |
| Codenaam processor | Skylake |
| Maximaal intern geheugen ondersteund door processor | 64 GB |
| Geheugentypen ondersteund door processor | DDR3L-SDRAM, DDR4-SDRAM |
| Klokgeheugen-snelheden ondersteund door processor | 1333,1600,1866,2133 MHz |
| Geheugenbandbreedte ondersteund door de processor ( max) | 34,1 GB/s |
| ECC ondersteund door processor | Ja |
| Voltage geheugen ondersteund door processor | 1,35 V |
| Execute Disable Bit | Ja |
| Idle States | Ja |
| Thermal Monitoring Technologies | Ja |
| Maximaal aantal PCI Express-lijnen | 16 |
| PCI Express configuraties | 1x16, 1x8+2x4, 2x8 |
| Verpakkingsgrootte processor | 37.5 x 37.5 mm |
| Ondersteunde instructie sets | AVX 2.0, SSE4.1, SSE4.2 |
| Processorcode | SR2LG |
| Schaalbaarheid | 1S |
| Ingebouwde opties beschikbaar | Nee |
| Graphics & IMC lithografie | 14 nm |
| Processorserie | Intel Xeon E3-1200 v5 |
| Conflictvrije processor | Ja |
| Geheugen | |
| Intern geheugen | 8 GB |
| Intern geheugentype | DDR4-SDRAM |
| Geheugenslots | 4 |
| ECC | Ja |
| Kloksnelheid geheugen | 2133 MHz |
| Geheugenlayout | 1 x 8 GB |
| Maximum intern geheugen | 64 GB |
| Opslagmedia | |
| HDD interface | SATA III, Serial Attached SCSI (SAS) |
| HDD omvang | 2.5" |
| Maximum aantal HDD's per behuizing | 8 |
| Ondersteunde HDD-groottes | 2.5" |
| RAID support | Ja |
| Soorten RAID | 0, 1, 10 |
| Ondersteunde RAID-controllers | RAID520i |
| Hot-swap | Ja |
| Soort optische drive | DVDñRW |
| Grafisch | |
| Ingebouwde grafische adapter | Ja |
| On-board graphics adapter model | Aspeed AST2400 |
| Netwerk | |
| Ethernet LAN | Ja |
| Bekabelingstechnologie | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 2 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 6 |
| VGA (D-Sub)poort(en) | 1 |
| Seri‰le poort(en) | 1 |
| Uitbreidingsmodules | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express slots versie | 3.0 |
| Design | |
| Type behuizing | Tower (4U) |
| Rack-montage | Ja |
| Prestatie | |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Inclusief besturingssysteem | Nee |
| Compatibele besturingssystemen | Microsoft Windows Server & Hypervisor 2012R2 & 2016, Microsoft Windows Storage 2012R2 & 2016, VMware Vsphere (ESXi), Red Hat Enterprise Linux Server |
| Processor speciale functies | |
| CPU configuratie (max) | 1 |
| Enhanced Intel SpeedStep Technology | Ja |
| Intel© Wireless Display (Intel© WiDi) | Nee |
| Intel© Virtualization Technology for Directed I/O (VT-d) | Ja |
| Intel© Hyper Threading Technology (Intel© HT Technology) | Nee |
| Intel© Turbo Boost Technology | 2.0 |
| Intel© Quick Sync Video Technology | Nee |
| Intel© InTruT 3D Technology | Nee |
| Intel© Clear Video HD Technology (Intel© CVT HD) | Nee |
| Intel© InsiderT | Nee |
| Intel© AES New Instructions (Intel© AES-NI) | Ja |
| Intel© Trusted Execution Technology | Ja |
| Intel© Enhanced Halt State | Ja |
| Intel© VT-x with Extended Page Tables (EPT) | Ja |
| Intel© Secure Key | Ja |
| Intel© TSX-NI | Ja |
| Intel© OS Guard | Ja |
| Intel© Clear Video-technologie | Nee |
| Intel© Software Guard Extensions (Intel© SGX) | Ja |
| Intel© Clear Video Technology for Mobile Internet Devices (Intel© CVT for MID) | Nee |
| Intel© 64 | Ja |
| Versie Intel© Secure Key Technology | 1,00 |
| Intel© Virtualization Technology (VT-x) | Ja |
| Versie Intel© TSX-NI | 1,00 |
| ARK ID processor | 88172 |
| Energie | |
| Redundante voeding | Ja |
| Netvoeding | 450 W |
| Aantal ondersteunde redundante voedingen | 2 |
| Aantal ge‹nstalleerde redundante voedingen | 2 |
| Aantal hoofdvoedingen | 2 |
| Eisen aan de omgeving | |
| Temperatuur bij opslag | -40 - 60 øC |
| Luchtvochtigheid bij opslag | 10 - 90 procent |
| Hoogte, in bedrijf | 0 - 3048 m |
| Certificaten | |
| Certificering | RoHS, GREENGUARD |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 84714100 |
| Warranty | |
| Base Warranty | Non Non |
| Gewicht en omvang | |
| Breedte | 173 mm |
| Diepte | 593 mm |
| Hoogte | 443,5 mm |
| Technische details | |
| Duurzaamheidscertificaten | ENERGY STAR |
| Overige specificaties | |
| Ge‹ntegreerde BMC met IPMI | Ja |
