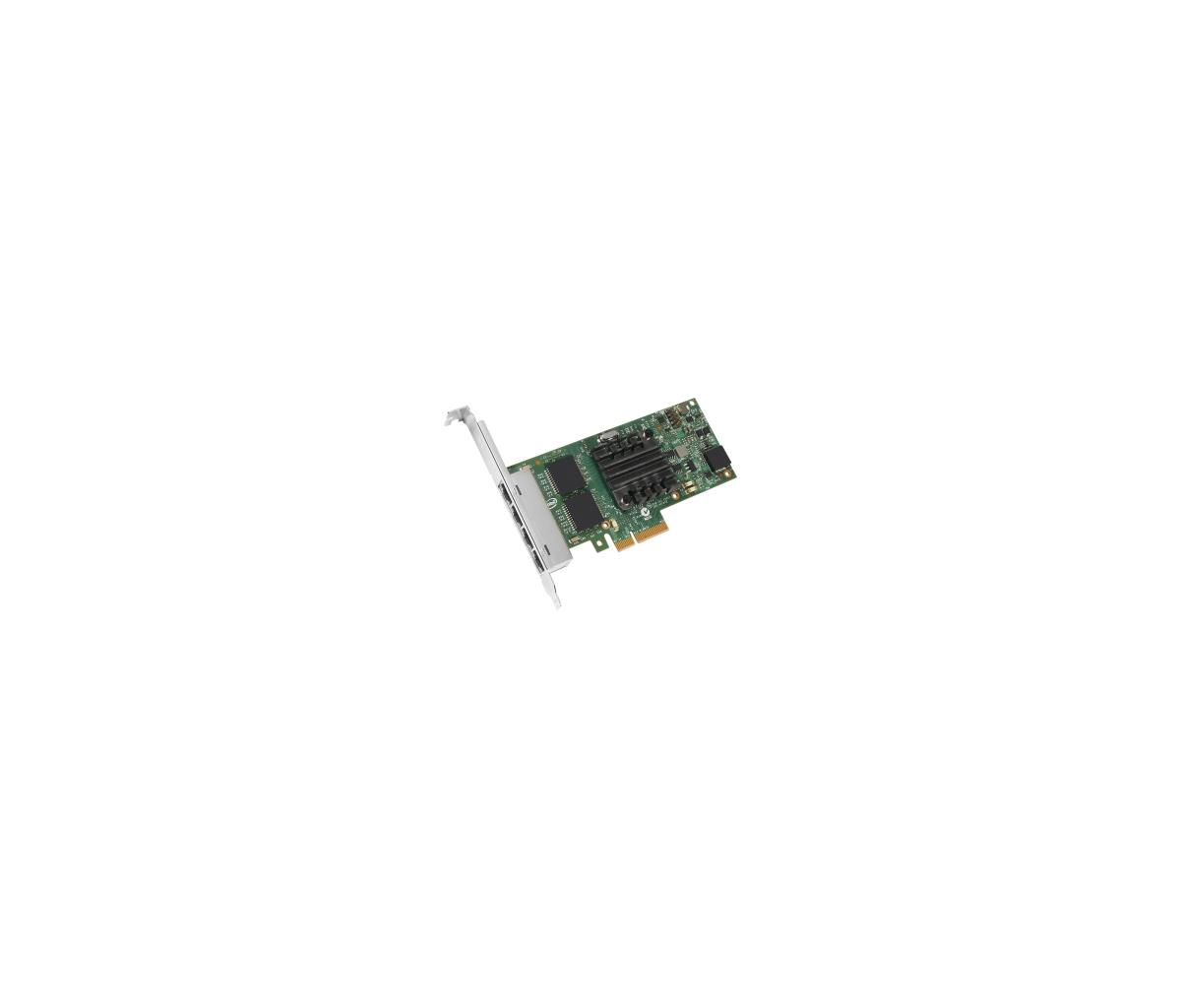

Ethernet Server Adapter i350-t4v2 Oem Gen Pci-e
ITCurry #: 2730E192 | Article #: I350T4G2P20-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Hostinterface | PCI Express |
| Interface | Ethernet |
| Aantal Ethernet LAN (RJ-45)-poorten | 4 |
| PCI versie | 2.1 |
| PCI Card form factor | Full-height (low-profile) |
| Netwerk | |
| Maximale overdrachtssnelheid van gegevens | 1000 Mbit/s |
| Netwerkstandaard | IEEE 802.1Q, IEEE 802.1as, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Bekabelingstechnologie | 10/100/1000BaseT(X) |
| VLAN-tagging | Ja |
| iSCSI support | Ja |
| Maximale afstand | 100 m |
| LAN controller | Intel© I350 |
| Design | |
| Kleur van het product | Groen |
| Intern | Ja |
| Minimale systeemeisen | |
| Compatibele besturingssystemen | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
| Ondersteunt Linux | Ja |
| Ondersteunde server operating systems | Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2012 R2, Windows Server 2012 R2 x64 |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Overige specificaties | |
| Gegevensoverdrachtsnelheid | 5 GT/s |
| Soort kabel | Cat 5 up to 100m |
| Marktsegment | Server |
| Aantal VLANs | 4096 |
| Ingebouwde opties beschikbaar | Nee |
| Intel© Virtual Machine Device Queues (VMDq) | Ja |
| PCI-SIG* SR-IOV Capable | Ja |
| On-chip QoS and Traffic Management | Ja |
| Intel© Flexible Port Partitioning | Ja |
| Snelheid en sleuf breedte | 5.0 GT/s, x4 Lane |
| Lage halogeen opties beschikbaar | Nee |
| Intelligent Offloads | Ja |
| iWARP/RDMA | Nee |
| Intel© Ethernet Power Management | Ja |
| Intel© Virtualization Technology for Connectivity (VT-c) | Ja |
| Soort aansluiting | PCIe v2.1 (5.0 GT/s) |
| Type product | Network Interface Card |
| Thermal Design Power (TDP) | 5 W |
| Lanceringsdatum | Q3'14 |
| Processorfamilie | Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) |
| Opslag via ethernet | iSCSI, NFS |
| Kaartkabeldrager netwerkinterface | Copper |
| Kaarttype netwerkinterface | Server |
| URL productsamenvatting | http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350 |
| Status | Launched |
| Laatste wijziging | 63903513 |
| Ethernet-adapter ARK ID | 84805 |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Optische drivecontroller | Intel I350 |
| Bekabelingstype | Cat 5 up to 100m |
| Brackethoogte | Low-Profile (LP) / Full-Height (FH) |
| Productfamilie | Intel Gigabit server adapter |
| Productserie | Intel© I350 |
| Productcodenaam | Powerville |
| Warranty | |
| Base Warranty | Non Non |
