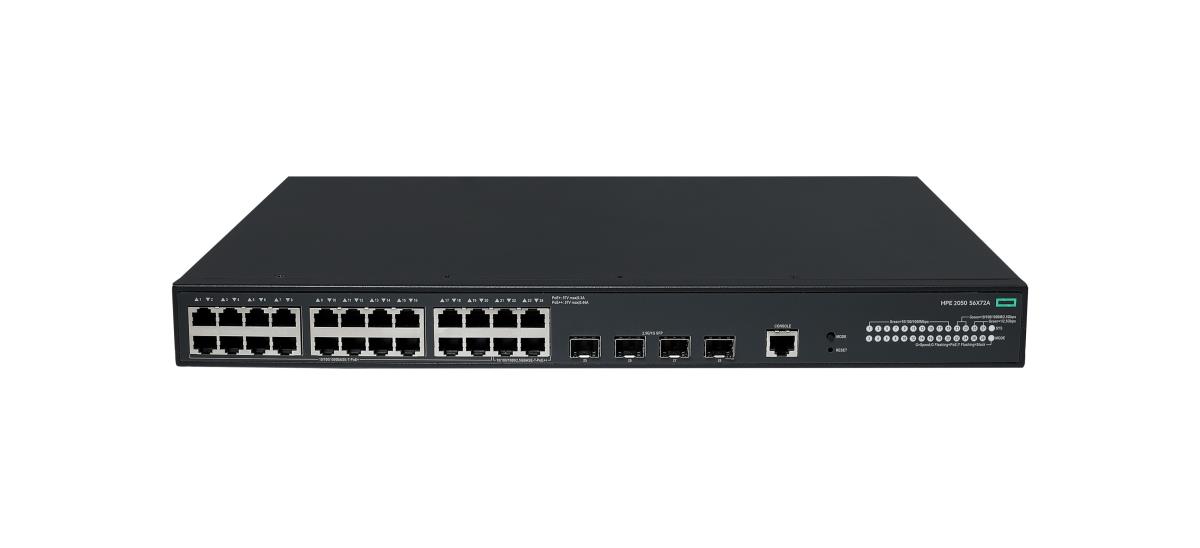

Networking CW 2050 24p 10/100/1000BT PoE+ 4p SFP 1G/2.5G 420W Switch
ITCurry #: 1171AYE1 | Article #: S6X72A-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
HPE Networking CW 2050 Switch Series is designed to empower your business with next-level connectivity. Whether you run a small or medium-sized business, or manage branch offices, the CW 2050 series offers seamless, secure, and high-performance networking without the complexity or high cost. This fully managed, stackable switch features advanced HPE Smart Rate 1G/2.5G ports and high-power PoE to support a wide range of devices, from computers to IP phones and wireless access points. With intuitive management through a web GUI and the Smart Management Center (SmartMC) dashboard, setting up and monitoring your network is simple—even for non-IT experts. For more advanced needs, the CW 2050 series integrates easily using CLI, SNMP, or REST API, ensuring compatibility with your existing systems. Choose the CW 2050 series for a reliable, scalable, and affordable solution that grows with your business.
What is new supporting point:
Fully managed, stackable Layer 2 switch series with 24- and 48-port non-PoE and PoE models, supporting IRF stacking with up to two switches
Four dedicated 1G/2.5G SFP uplink ports
24-port non-PoE model includes four HPE Smart Rate 1G/2.5G ports; 24-port PoE model includes four PoE++ 1G/2.5G ports delivering up to 100?W per port
Powerful PoE provides up to 420?W (35?W per port) to support APs, IP phones, surveillance cameras, door locks, and other IoT devices
Fanless design on the 24-port non-PoE model for acoustically sensitive environments
Flexible, simplified management with default Web GUI, SmartMC management dashboard, CLI, SNMP, and REST API for integration with customer dashboards
| Data-uitwisseling | |
| Switchingcapaciteit | 80 Gbit/s |
| Throughput | 59,52 Mpps |
| Design | |
| Stapelbaar | Ja |
| Prestatie | |
| Type processor | Ja |
| Energie | |
| AC-ingangsspanning | 100 - 240 V |
| Energieverbruik opmerking | 23W, AC |
| Netvoeding voetnoot | Internal, 90V-264V AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Overige specificaties | |
| Latentie | 1 GE: =5æs (64 byte LIFO) |
| Geheugen en processor | CPU: Single-core Arm 1.25 GHz Flash: 256 MB Packet buffer: 0.5 MB |
| Aansluitingen | 20 x 10/100/1000BASE-T PoE+ ports 4 x 1G/2.5G BASE-T PoE++ ports 4 x 1G/2.5G BASE-X SFP ports 1 x RJ-45 console port |
| Prestatiebeheer | Web GUI Command Line Interface (CLI) Smart Management Center (SmartMC) HPE Intelligence Management Center (IMC) HPE Networking Management Software (AirWave) SNMP RestAPI |
| Gewicht (imperiaal) | 5,2 kg (11.5 lbs) |
| Afmetingen (B x D x H) (Brits) | 384 x 558 x 134,9 mm (15.1 x 22 x 5.31") |
| Fan | 2 |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -5 - 45 øC |
| Warmtedissipatie | 1542 BTU/h |
| Gewicht en omvang | |
| Breedte | 384 mm |
| Diepte | 558 mm |
| Hoogte | 134,9 mm |
| Gewicht | 5,2 kg |
| Warranty | |
| Base Warranty | Non Non |
