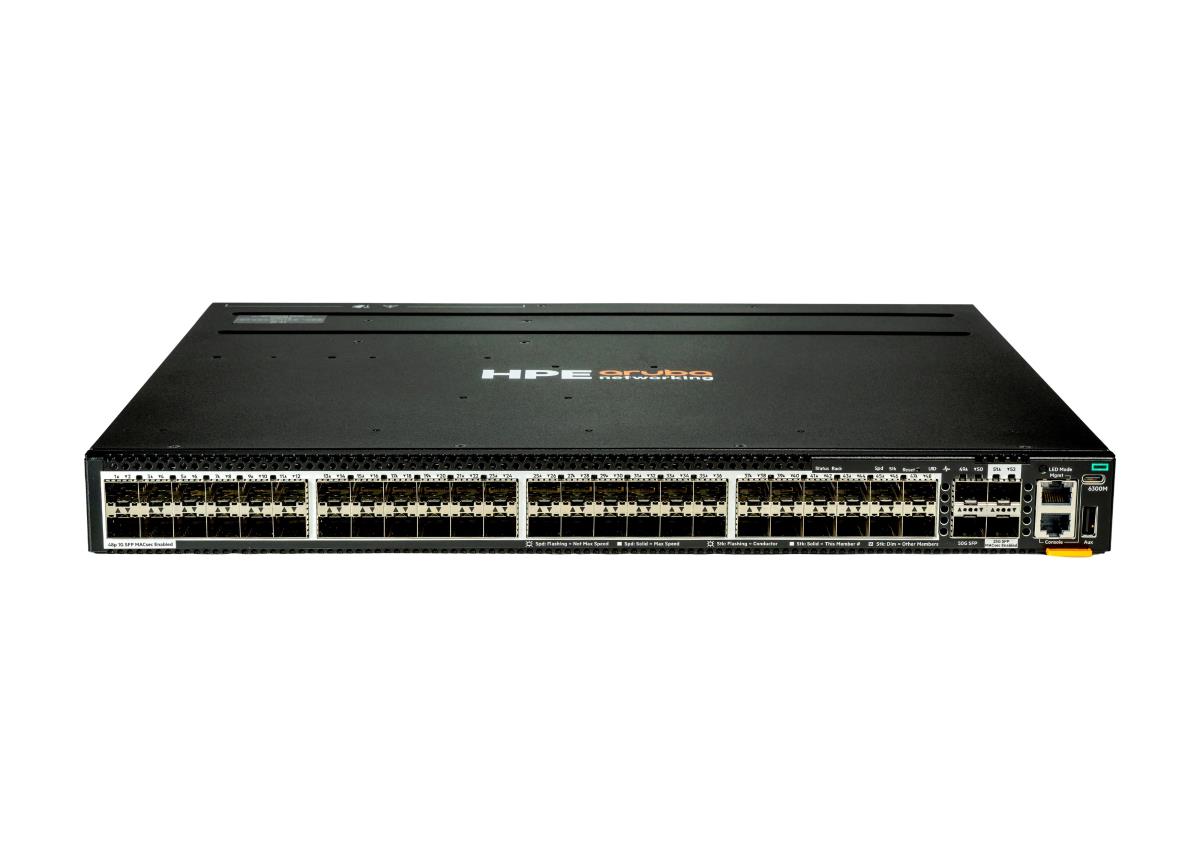

Aruba Networking CX 6300M 48p SFP 1G 2p SFP56 50G 2p SFP28 25G MACsec Switch
ITCurry #: 1171ATX3 | Article #: S4P43A-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). Featuring a cloud-native design and fully programmable operating system (OS). The CX 6300 delivers advanced monitoring and troubleshooting with capabilities like a real-time network analytics engine, HPE Aruba Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations. A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high-speed uplinks and supports high-density IEEE 802.3bt high-power PoE with HPE Smart Rate multi-gigabit Ethernet.
What is new supporting point:
Three stackable Layer 2-only CX 6300L switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for high performance access deployments
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880 to 1760 Gbps system switching capacity, 660 to 1310 Mpps of system throughput and up to 200 to 400 Gbps stacking bandwidth
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48-port of HPE Smart Rate multi-gigabit (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.11bt PoE, all with telemetry and automation via the CX Network Analytics Engine
Manage through single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT
The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM [1]
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L3 |
| Web-gebaseerd management | Ja |
| Locatie-instellingen (CLI) configureren | Ja |
| Poorten & interfaces | |
| Type basis-switching RJ-45 Ethernet-poorten | Nee |
| Aantal ge‹nstalleerde SFP modules | 48 |
| Aantal ge‹nstalleerde SFP+ modules | 2 |
| Aantal moduleslots SPF | 48 |
| Aantal USB Type-A-poorten | 1 |
| Aantal USB-Type-C-poorten | 1 |
| Aantal beheerpoorten | 3 stuk(s) |
| Fibre channel-poorten | 54 |
| Vezel-optische connector | SFP |
| Console port | RJ-45/USB Type-C |
| Aantal SFP28-poorten | 2 |
| Netstekker | AC/DC |
| Netwerk | |
| 10G support | Ja |
| Ondersteundende kabel types | Fiber |
| Optische vezel | |
| Type schakelende optische module | Gigabit Ethernet |
| Data-uitwisseling | |
| Switchingcapaciteit | 396 Gbit/s |
| Throughput | 295 Mpps |
| Doorvoercapaciteit | 295 Gbit/s |
| Verzending snelheid | 295 Mpps |
| Latentie (1 Gbps) | 3,4 æs |
| Design | |
| Rack-montage | Ja |
| Stapelbaar | Ja |
| Kleur van het product | Zwart |
| Marktsegment | Bedrijf |
| Prestatie | |
| Physical stacking (units) | 10 |
| Type processor | Ja |
| Processorfabrikant | ARM |
| Processormodel | ARM Cortex-A9 |
| Frequentie van processor | 1800 MHz |
| Type geheugen | DDR4-SDRAM |
| Intern geheugen | 8000 MB |
| Flash memory | 32000 MB |
| Energie | |
| Stroombron | AC/DC |
| Vermogenstoevoer inclusief | Ja |
| Redundante voeding | Nee |
| Aantal voedingen | 2 |
| AC-ingangsspanning | 100 - 240 V |
| DC voltage input | 36 - 72 V |
| Ingangsspanning | 100 -240 ; 36-72 |
| Vermogensverbruik (max) | 127 W |
| Energieverbruik opmerking | With JL085A PSU: Idle: 67W 100% Traffic Rate: 127W With JL757A PSU: Idle: 61W 100% Traffic Rate: 123W |
| Netvoeding voetnoot | 2 field-replaceable, hot-swappable power supply slots 1 minimum power supply required (ordered separately). Supported PSUs JL085A and JL757A. |
| Type stekker | Geen stekker |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Overige specificaties | |
| Latentie | 1 Gbps: 3.4 æs 50 Gbps: 2.1 æs |
| Geheugen en processor | CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration |
| Aansluitingen | 48 x 1G SFP ports 2 x 10G/25G/50G [4] SFP ports 2 x 10G/25G SFP ports (MACsec) 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port |
| Prestatiebeheer | Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software |
| Gewicht (imperiaal) | 6,02 kg (13.3 lbs) |
| Fan | Switch has two fan tray slots and comes with two fan trays installed. Minimum two fan trays required. Fan trays are field replaceable and hot-swappable. Each fan tray contains two fans. |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 45 øC |
| Hoogte, in bedrijf | 0 - 1524 m |
| Gewicht en omvang | |
| Breedte | 44 mm |
| Diepte | 442 mm |
| Hoogte | 4,4 mm |
| Gewicht | 6,02 kg |
| Verpakking | |
| Breedte verpakking | 385 mm |
| Diepte verpakking | 442 mm |
| Hoogte verpakking | 44 mm |
| Warranty | |
| Base Warranty | Non Non |
