Aruba Networking AP-635 (JP) Tri Radio 2x2 802.11ax Wi-Fi 6E Internal Antennas Campus AP
ITCurry #: 1171AMT5 | Article #: R7T00A-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

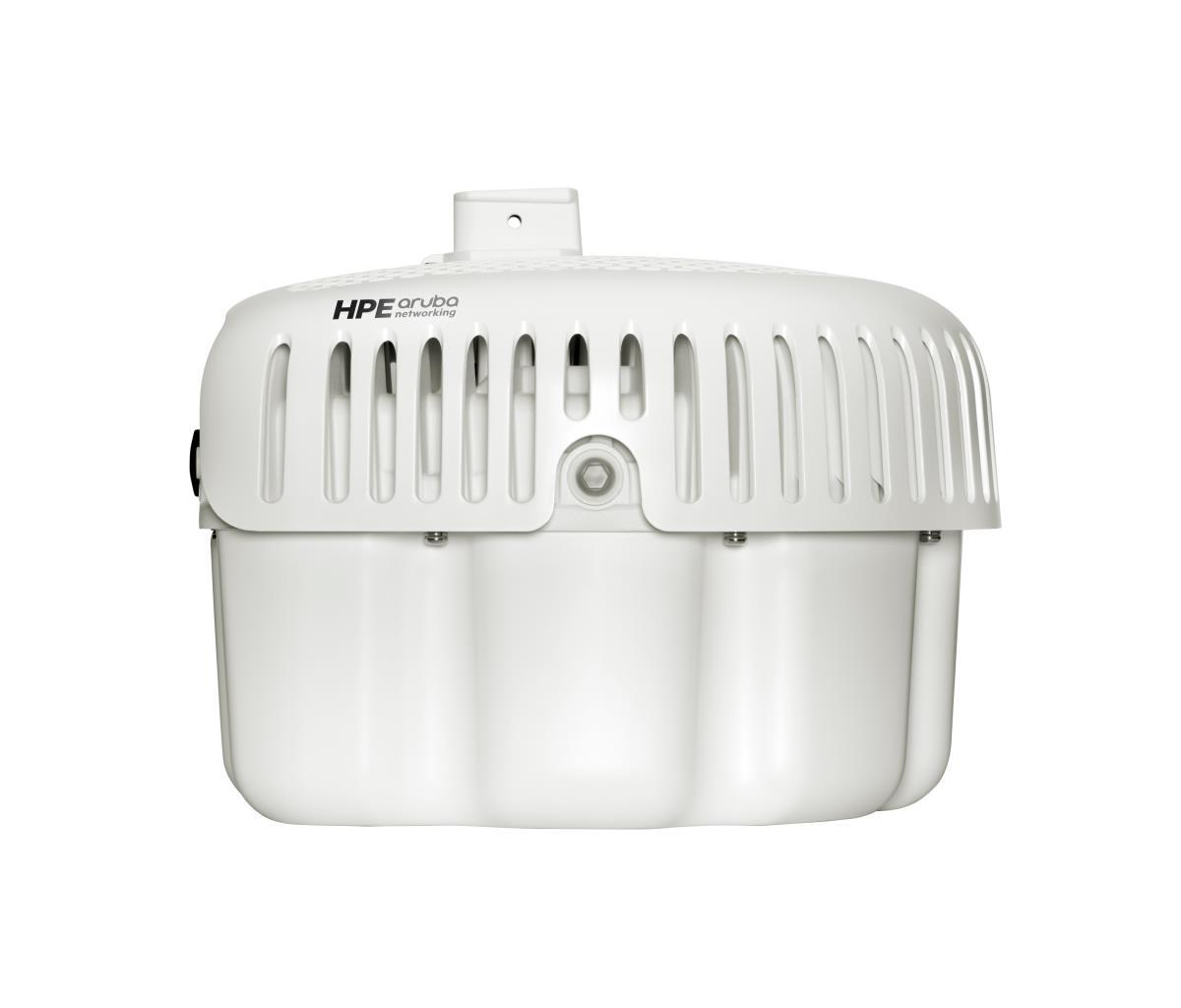

HPE Aruba Networking 580 Series Outdoor Access Points are our flagship Wi-Fi 6 outdoor APs purpose built to survive the harshest outdoor environments. With Wi-Fi 6 capabilities, high power Bluetooth and 802.15.4/Zigbee radios, and maximum aggregate data rate of 2.97 Gbps, the 580 Series delivers the speed and reliability needed for large enterprise and Industrial IoT deployments. These high-performance Wi-Fi 6 outdoor APs are IP66/67 rated to survive high wind, extreme temperatures, and moisture and can be quickly deployed using Zero Touch Provisioning. HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and VPNs. AI-powered analytics, end-to-end orchestration and automation, and advanced security features are built natively into the solution. The 580 Series outdoor APs include a limited lifetime warranty.
What is new supporting point:
Client and RF optimization to match clients with the best available access point and reduce coverage gaps.
Flexible connectivity and power options with support for 5 Gbps multi-gigabit Ethernet ports and 802.3bt Class 6 power or AC power.
[1] Bluetooth and 802.15.4/Zigbee radios with high power to meet Industrial IoT requirements.
Purpose built to survive in the harshest outdoor environments and extreme temperatures (-40 to +65°C) with IP66/67 ratings.
Outdoor Wi-Fi 6 access points provide maximum aggregate data rate of 2.97 Gbps.
| Kenmerken | |
| 2,4 GHz | Ja |
| 5 GHz | Ja |
| 6 GHz | Nee |
| Maximale overdrachtssnelheid van gegevens | 2970 Mbit/s |
| Ethernet LAN, data-overdrachtsnelheden | 1000,5000,10000 Mbit/s |
| Netwerkstandaard | IEEE 802.11ax |
| Bluetooth | Ja |
| Bluetooth-versie | 5.0 |
| MIMO | Ja |
| MIMO-type | Single User MIMO |
| Spread spectrum methode | DSSS, OFDM, OFDMA |
| Trusted Platform Module (TPM) | Ja |
| Beveiliging | |
| Ondersteunde beveiligingsalgoritmen | WPA2, WPA3 |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 2 |
| Aantal USB 2.0-poorten | 1 |
| USB-connectortype | USB Type-C |
| Energie | |
| Power over Ethernet (PoE) | Ja |
| Stroomverbruik (typisch) | 71 W |
| Design | |
| Plaatsing | Plafond, Paal, Muur |
| Kleur van het product | Wit |
| Internationale veiligheidscode (IP) | IP66, IP67 |
| Antenne | |
| Soort antenne | Extern |
| Type antennerichting | Omni-directioneel |
| Antenne versterkingsniveau (max) | 5 dBi |
| Aantal connectors | 4 |
| Certificaten | |
| Certificaten van naleving | Federal Communications Commission (FCC), ISED, CE, Elektromagnetische compatibiliteit (EMC), Laagspanningsrichtlijn (LVD) |
| Certificering | None |
| Gewicht en omvang | |
| Breedte | 324 mm |
| Diepte | 312 mm |
| Hoogte | 244 mm |
| Gewicht | 5,52 kg |
| Verpakking | |
| Breedte verpakking | 410 mm |
| Diepte verpakking | 322 mm |
| Hoogte verpakking | 433 mm |
| Gewicht verpakking | 7,56 kg |
| Eisen aan de omgeving | |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 93 procent |
| Bedrijfstemperatuur (T-T) | -40 - 65 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Hoogte, in bedrijf | 0 - 3000 m |
| Warranty | |
| Base Warranty | Non Non |
