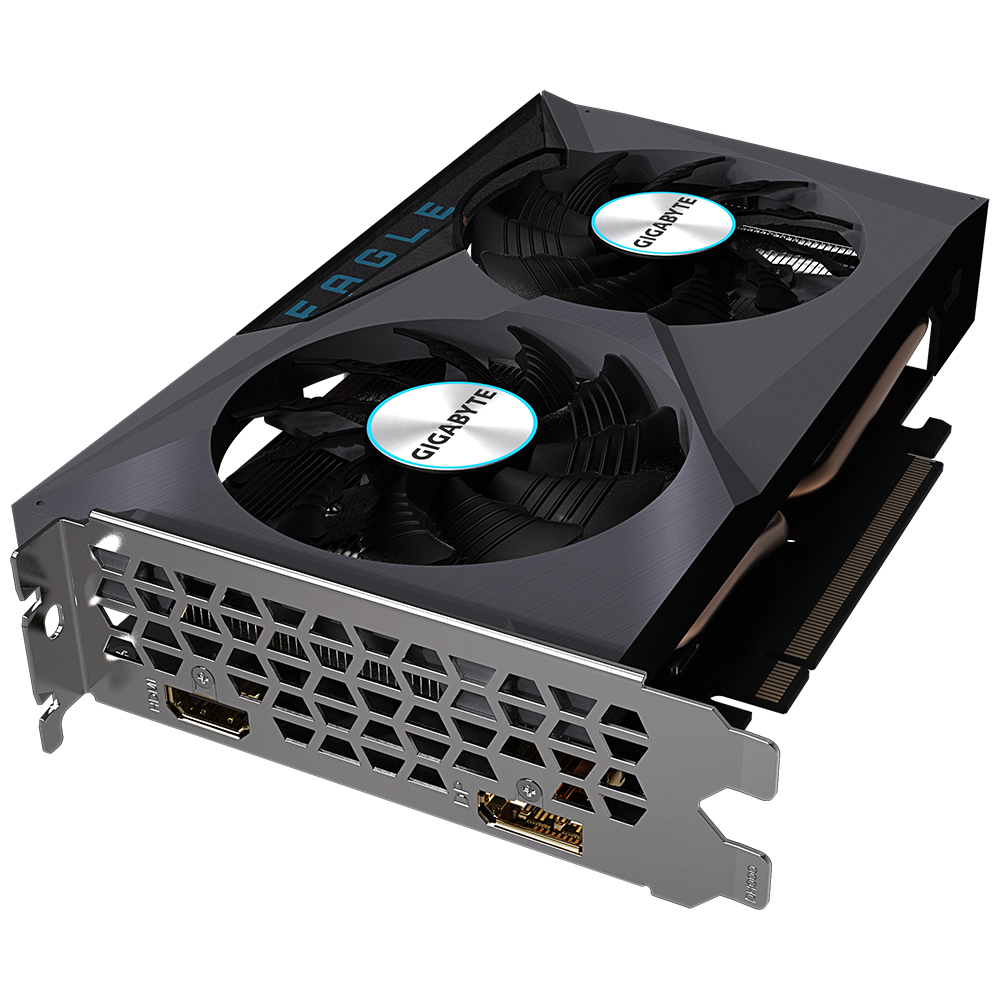

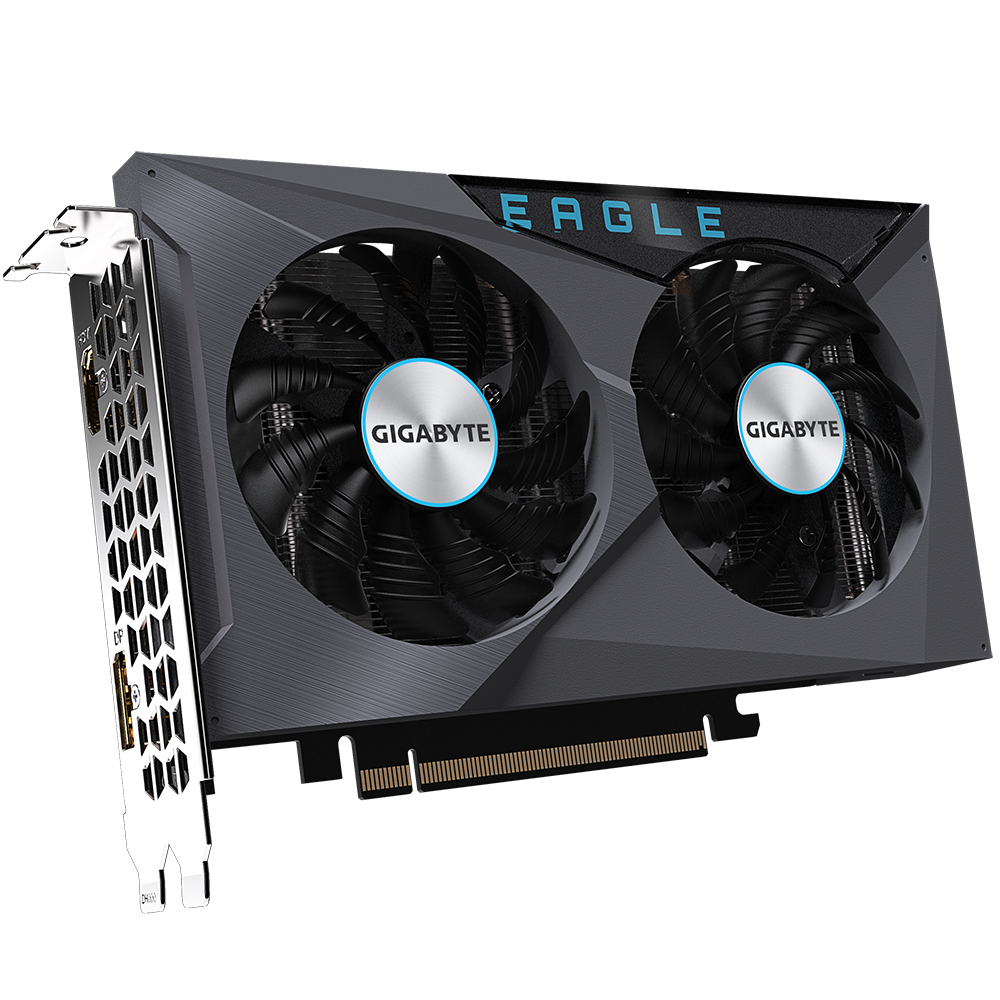

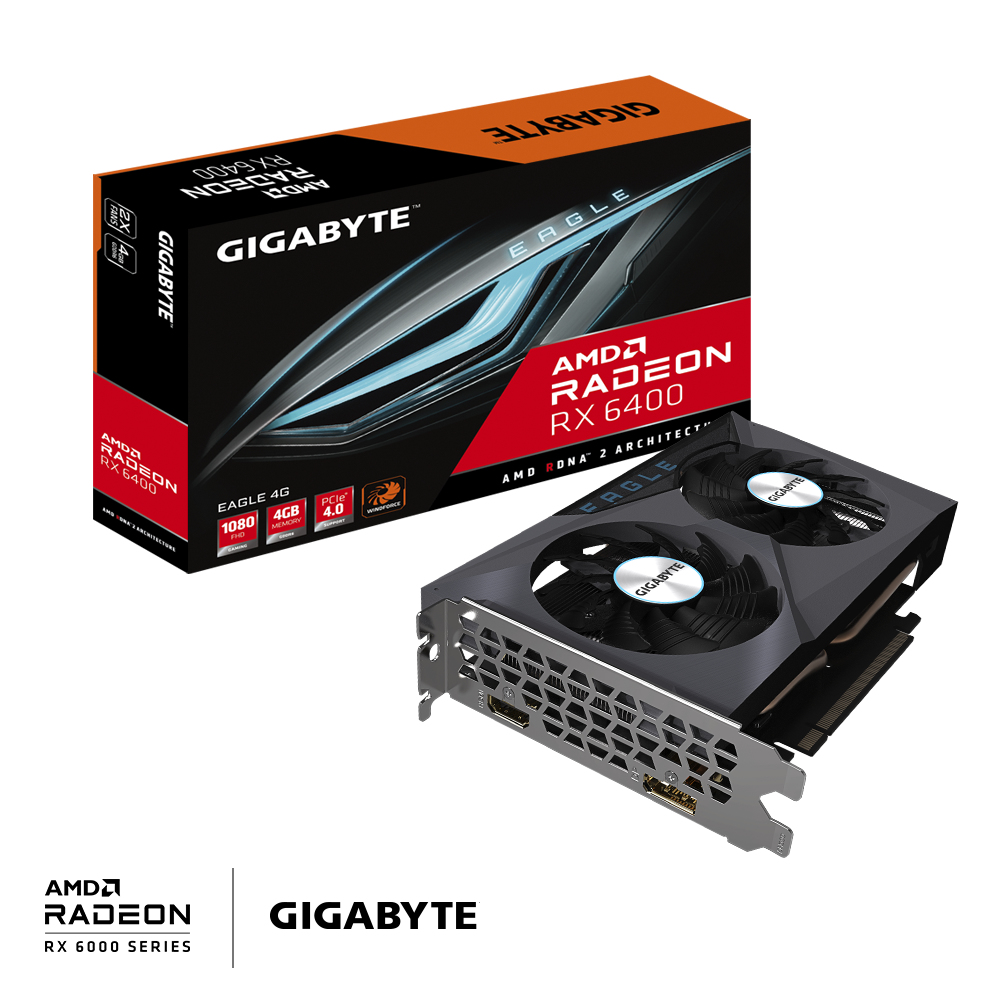

Graphics Card - Radeon Rx 6400 Master - 4GB - Pci-e - Gv-r64eagle-4gd
ITCurry #: 85365957 | Article #: GV-R64EAGLE-4GD-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
FEATURES
Powered by AMD RDNA™ 2 Radeon™ RX 6400
Integrated with 4GB GDDR6 64-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
Graphene nano lubricant
CORE CLOCK
Boost Clock* : up to 2321 MHz
Game Clock* : up to 2039 MHz

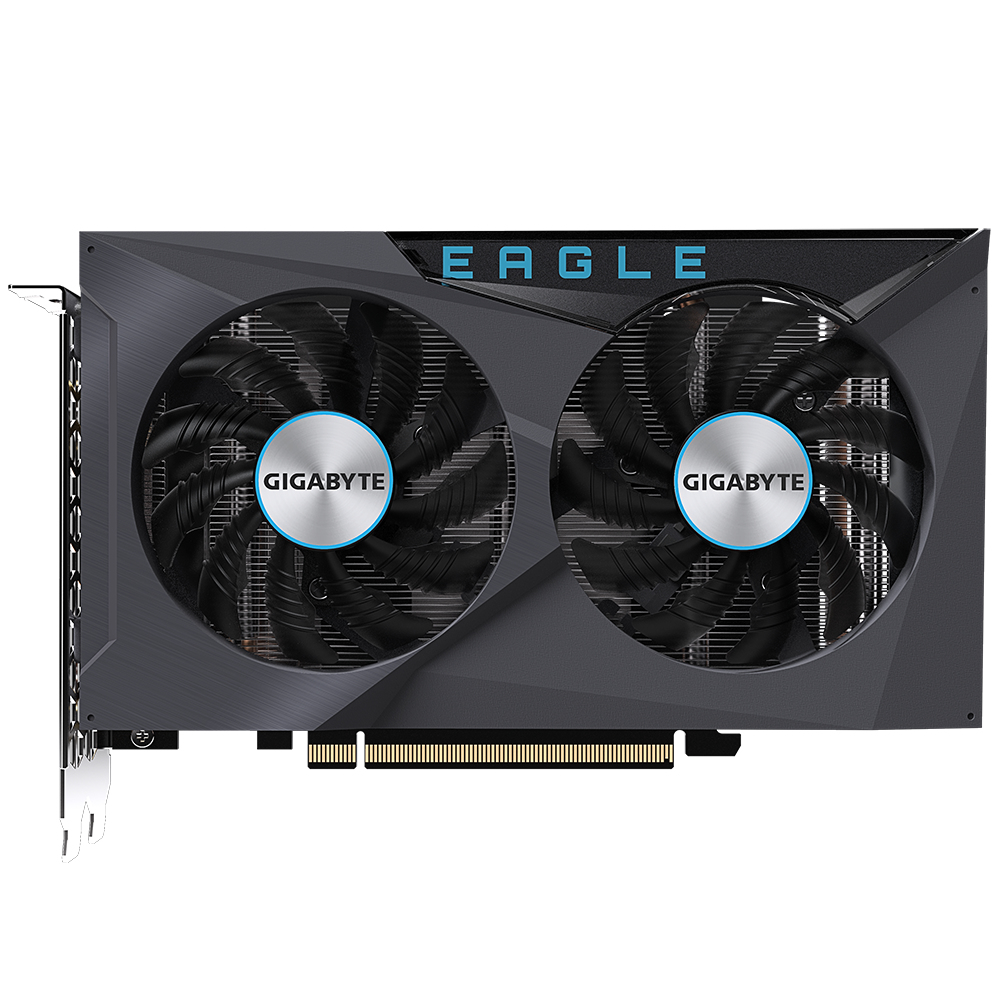

WINDFORCE 2X COOLING SYSTEM
The WINDFORCE 2X cooling system features two unique blade fans, alternate spinning, composite copper heat pipes, copper plate and 3D active fan, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

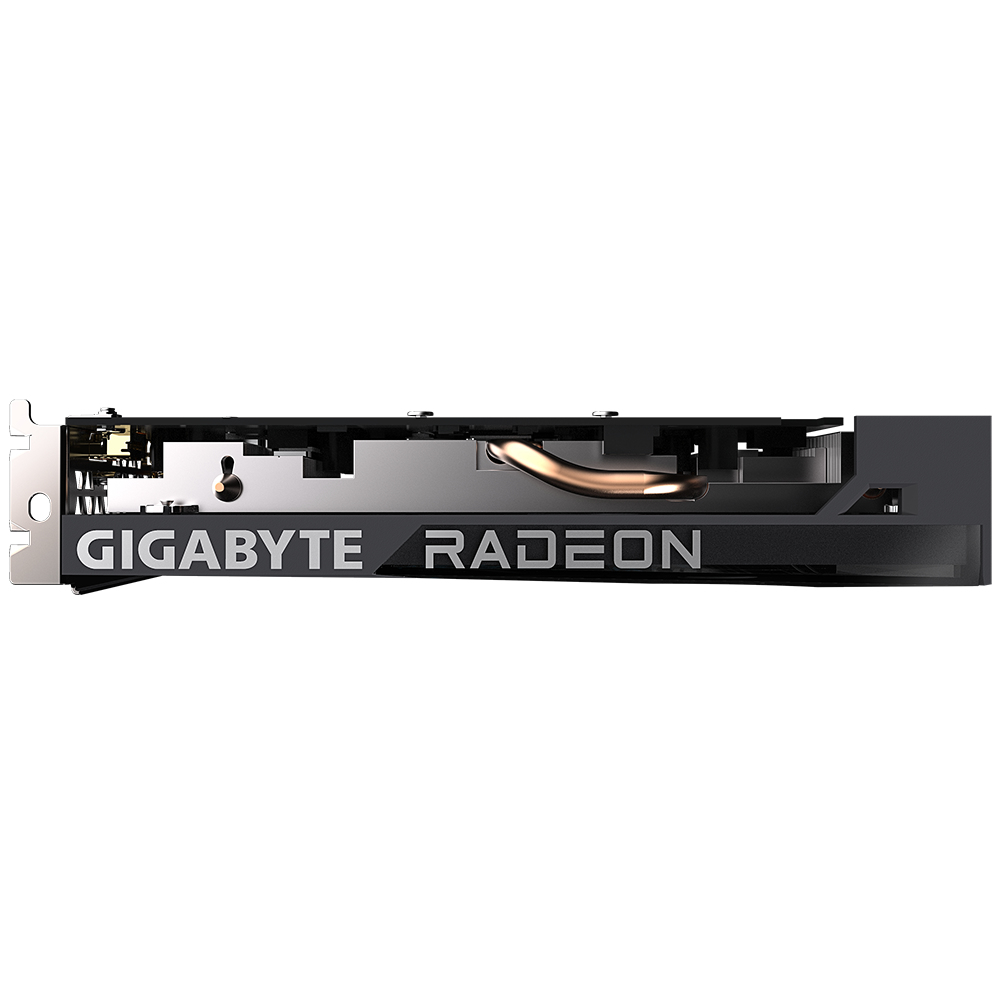

HEAT PIPES AND COPPER PLATE
The shape of the pure copper heat pipe contacts with the GPU through a copper plate.
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
| Processor | |
| CUDA | Nee |
| Grafische processor familie | AMD |
| Grafische processor | Radeon RX 6400 |
| Processor boost clock speed | 2321 MHz |
| Processor boost kloksnelheid (gamemodus) | 2039 MHz |
| Maximum resolutie | 7680 x 4320 Pixels |
| Geheugen | |
| Grafische geheugen | 4 GB |
| Grafische adapter, soort geheugen | GDDR6 |
| Geheugenbus | 64 Bit |
| Kloksnelheid geheugen | 16000 MHz |
| Overdrachtssnelheid | 16 Gbit/s |
| Geheugen bandbreedte (max) | 128 GB/s |
| Poorten & interfaces | |
| Soort aansluiting | PCI Express 4.0 |

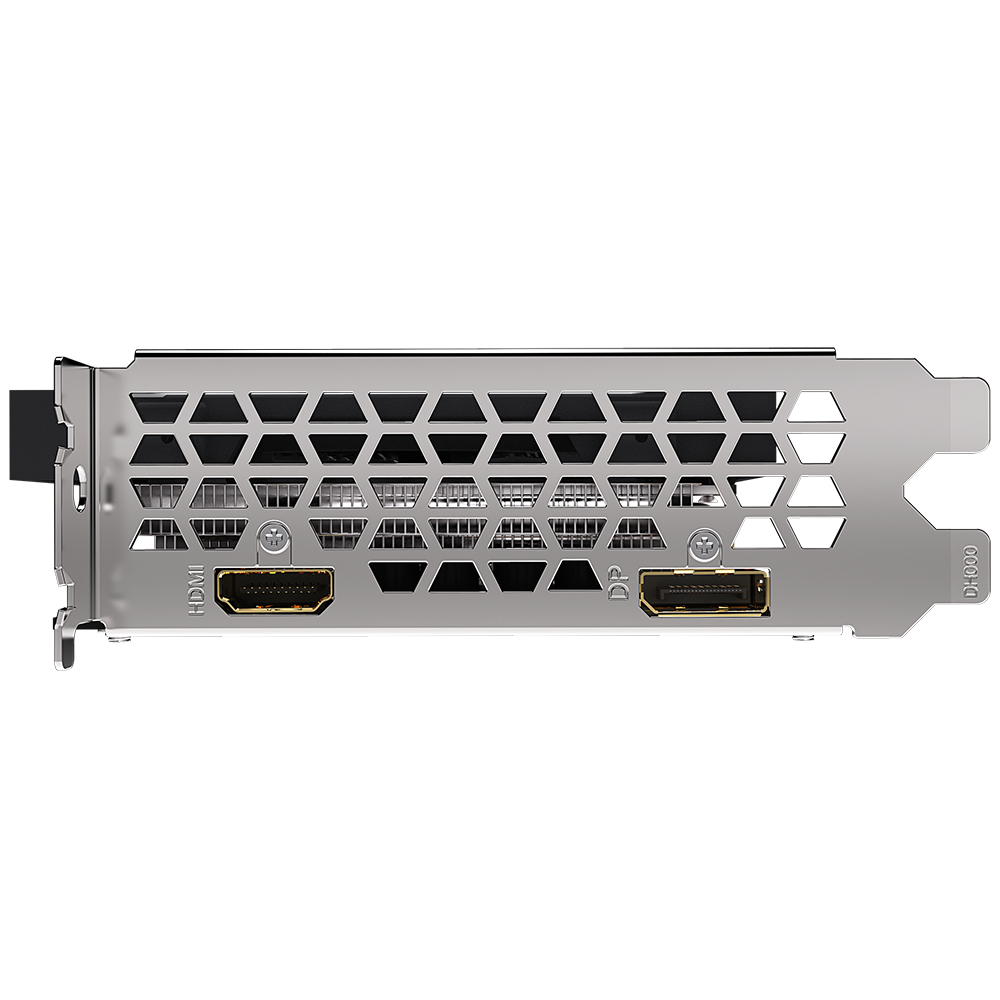

| Aantal HDMI-poorten | 1 |
| HDMI versie | 2.1 |
| Aantal DisplayPorts | 1 |
| DisplayPort versie | 1.4 |
| Prestatie | |
| Ge‹ntegreerde TV Tuner | Nee |
| DirectX versie | 12.0 |
| OpenGL versie | 4.6 |
| Dual Link DVI | Nee |
| Design | |
| Type koeling | Actief |
| Aantal ventilatoren | 1 ventilator(en) |
| Brackethoogte | Low-Profile (LP) |
| Aantal sloten | 1 |
| Energie | |
| Minimum system power voorraad | 350 W |
| Gewicht en omvang | |
| Lengte | 192 mm |
| Hoogte | 117 mm |
| Verpakking | |
| Type verpakking | Doos |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 84733020 |
| Warranty | |
| Base Warranty | Non Non |
