Product Informatie

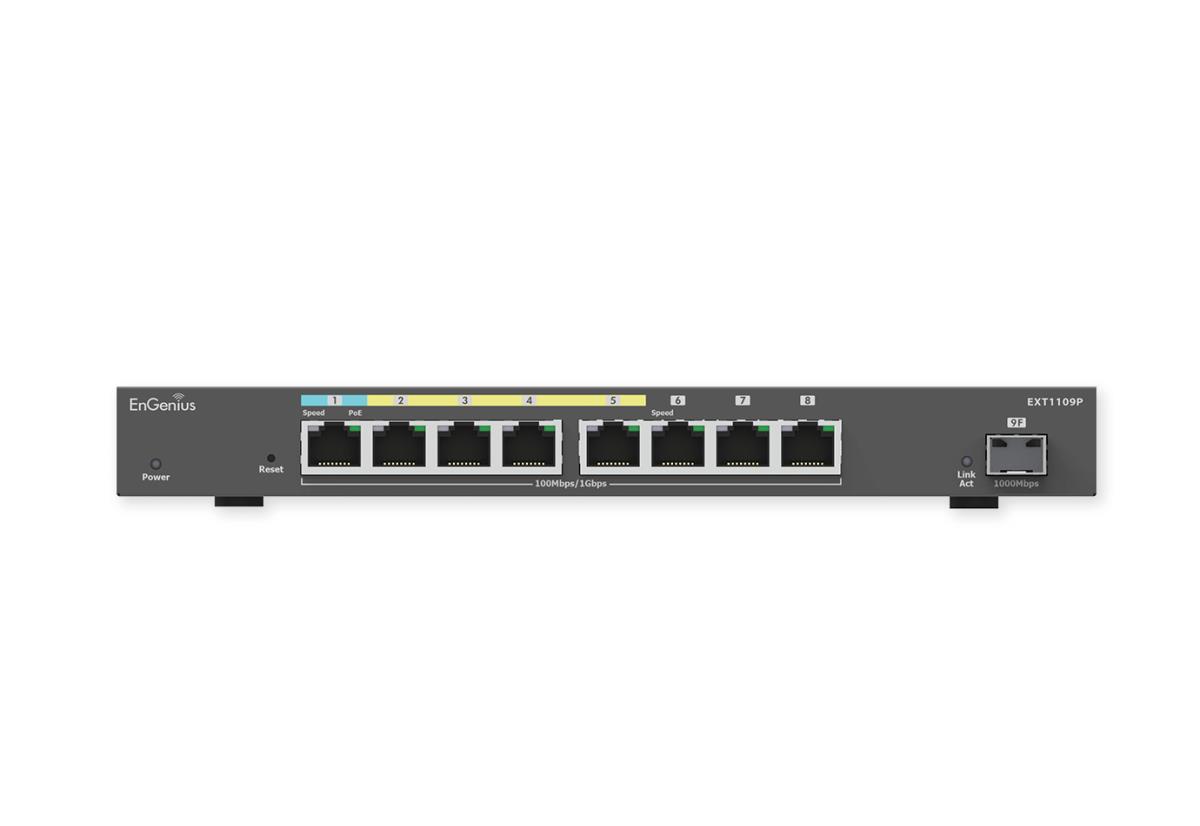

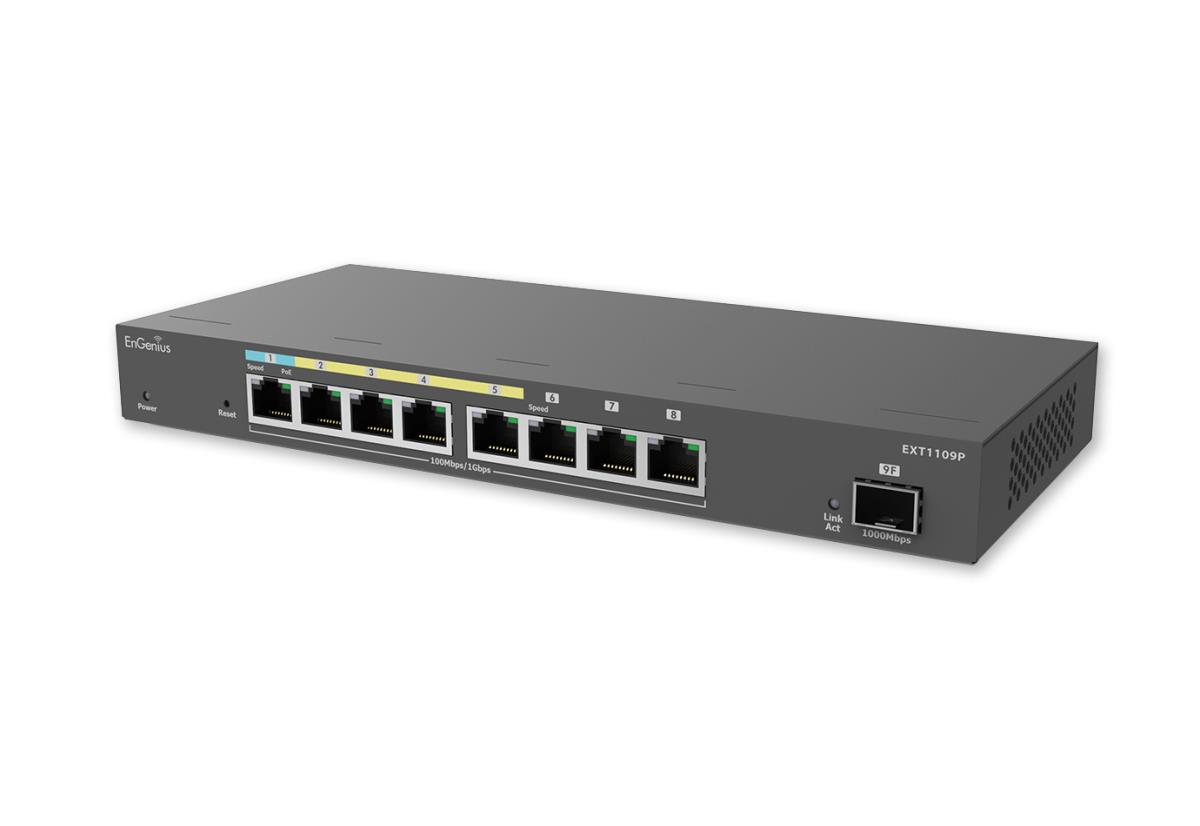

EnGenius Switch Extender, EXT1109P is a reliable 4-Port GE PoE, 1-Port GE PD PoE, 3 GE Ports and 1 SFP slot switch that excels in diversifying network expansion. Its SFP interface extends data transmission beyond the traditional 100-meter RJ45 limit, ensuring robust network performance. Its optimized Voice-VLAN feature, zero-touch provisioning, and easy-to-use cloud-based management provide SMBs with a hassle-free network solution.
Extend Your Network Beyond 100 Meters: Beyond RJ45’s Limitations
Expand network coverage beyond 100 meters effectively with an advanced SFP interface, ensuring extended reach without compromising performance.
Enhancing Network Efficiency: Advanced Built-in Switch Capabilities
Maximize network efficiency with built-in switch features: VLAN for streamlined data management, IGMP Snooping for multicast traffic optimization, and RSTP for enhanced network resilience, all ensuring optimal performance across various applications.
| Beheerfuncties | |
| Switch-laag | L2 |
| Quality of Service (QoS) | Ja |
| Cloud-beheerd | Ja |
| System event log | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 8 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal Gigabit Ethernet (koper)-poorten | 8 |
| Fibre channel-poorten | 1 |
| Vezel-optische connector | SFP |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| 10G support | Nee |
| Koperen ethernetbekabelingstechnologie | 100BASE-TX, 1000BASE-T |
| Spanning tree protocol | Ja |
| VLAN=ondersteuning | Ja |
| Virtuele LAN-functies | Port-based VLAN, Voice VLAN |
| Data-uitwisseling | |
| Switchingcapaciteit | 18 Gbit/s |
| MAC-adrestabel | 8000 entries |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 10000 |
| Beveiliging | |
| IGMP snooping | Ja |
| Algoritmen wachtrijplanning | Weighted Round Robin (WRR) |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Design | |
| Rack-montage | Nee |
| Kleur van het product | Grijs |
| LED-indicatoren | Activiteit, Link, Power over Ethernet (PoE), Stroom |
| Prestatie | |
| Flash memory | 32 MB |
| Energie | |
| Stroombron | DC/PoE |
| Vermogenstoevoer inclusief | Ja |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Hoeveelheid Power over Ethernet (PoE) ports | 5 |
| Vermogen per poort Power over Ethernet (PoE) | 30 W |
| Totaal Power over Ethernet (PoE)-budget | 90 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 50 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
| Gewicht en omvang | |
| Breedte | 105 mm |
| Diepte | 240 mm |
| Hoogte | 27 mm |
| Gewicht | 620 g |
| Verpakking | |
| Breedte verpakking | 270 mm |
| Diepte verpakking | 166 mm |
| Hoogte verpakking | 84 mm |
| Gewicht verpakking | 1,1 kg |
| Logistieke gegevens | |
| Netto gewicht kartonnen doos | 11 kg |
| (Buitenste) hoofdverpakking breedte | 357 mm |
| (Buitenste) hoofdverpakking lengte | 452 mm |
| (Buitenste) hoofdverpakking hoogte | 271 mm |
| Code geharmoniseerd systeem (HS) | 85176990 |
| (Buitenste) hoofdverpakking brutogewicht | 11,8 kg |
| Hoeveelheid per (buitenste) hoofdverpakking | 10 stuk(s) |
| Warranty | |
| Base Warranty | Non Non |
