TRIPP LITE SmartRack 18U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet (SRW18USG)
ITCurry #: 57905134 | Article #: SRW18USG-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The SRW18USG SmartRack 18U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is ideal for storing EIA-standard 19-inch rack equipment in network closets and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 lbs (113.4 kgs).

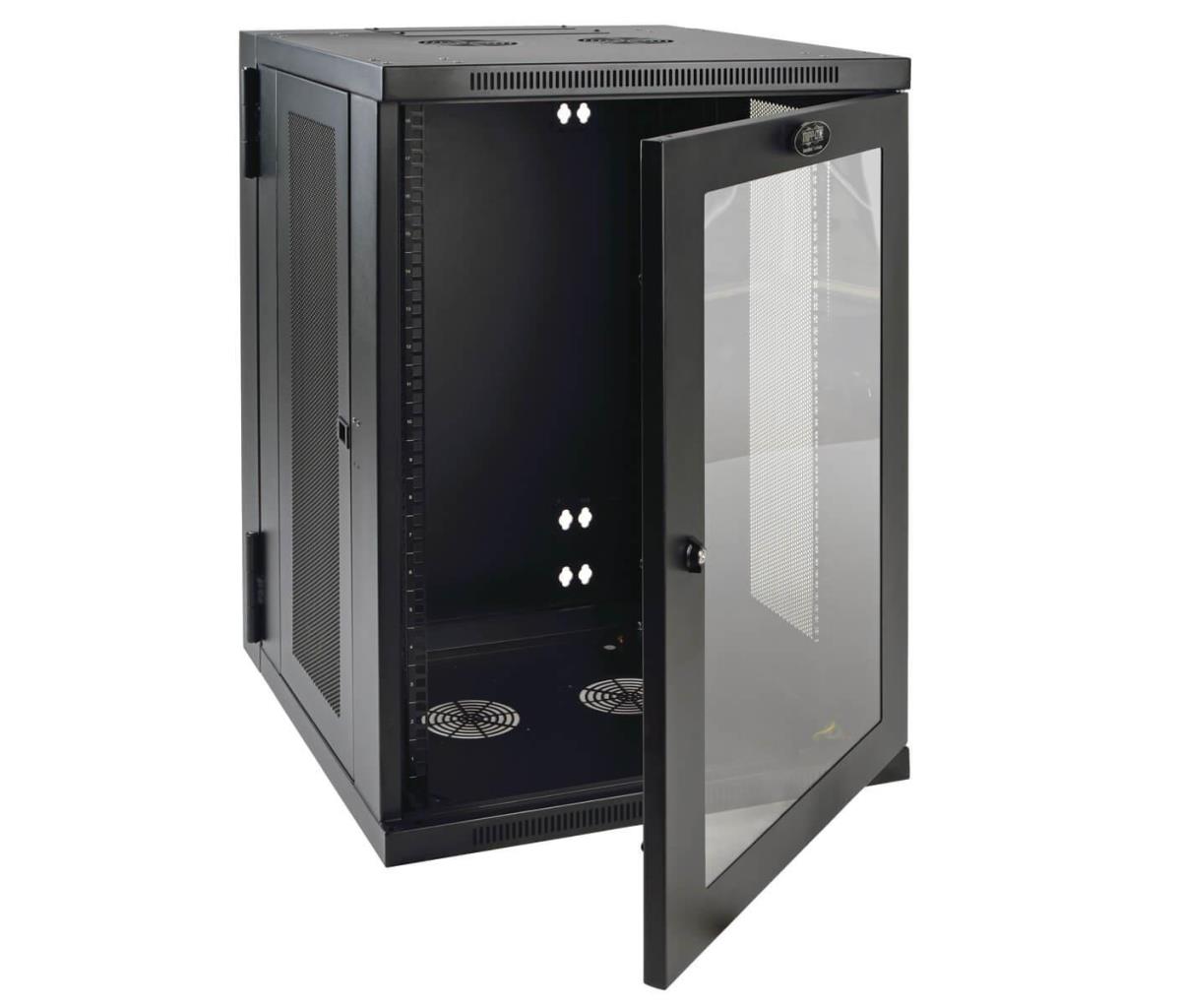

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.
The cabinet swings away from the wall on a sturdy hinge, allowing easy access to equipment and cabling during installation and maintenance. To ensure your valuable equipment stays secure, the doors and side panels lock. The top, bottom and removable side panels are vented, which allows air to flow freely through the rack to keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.

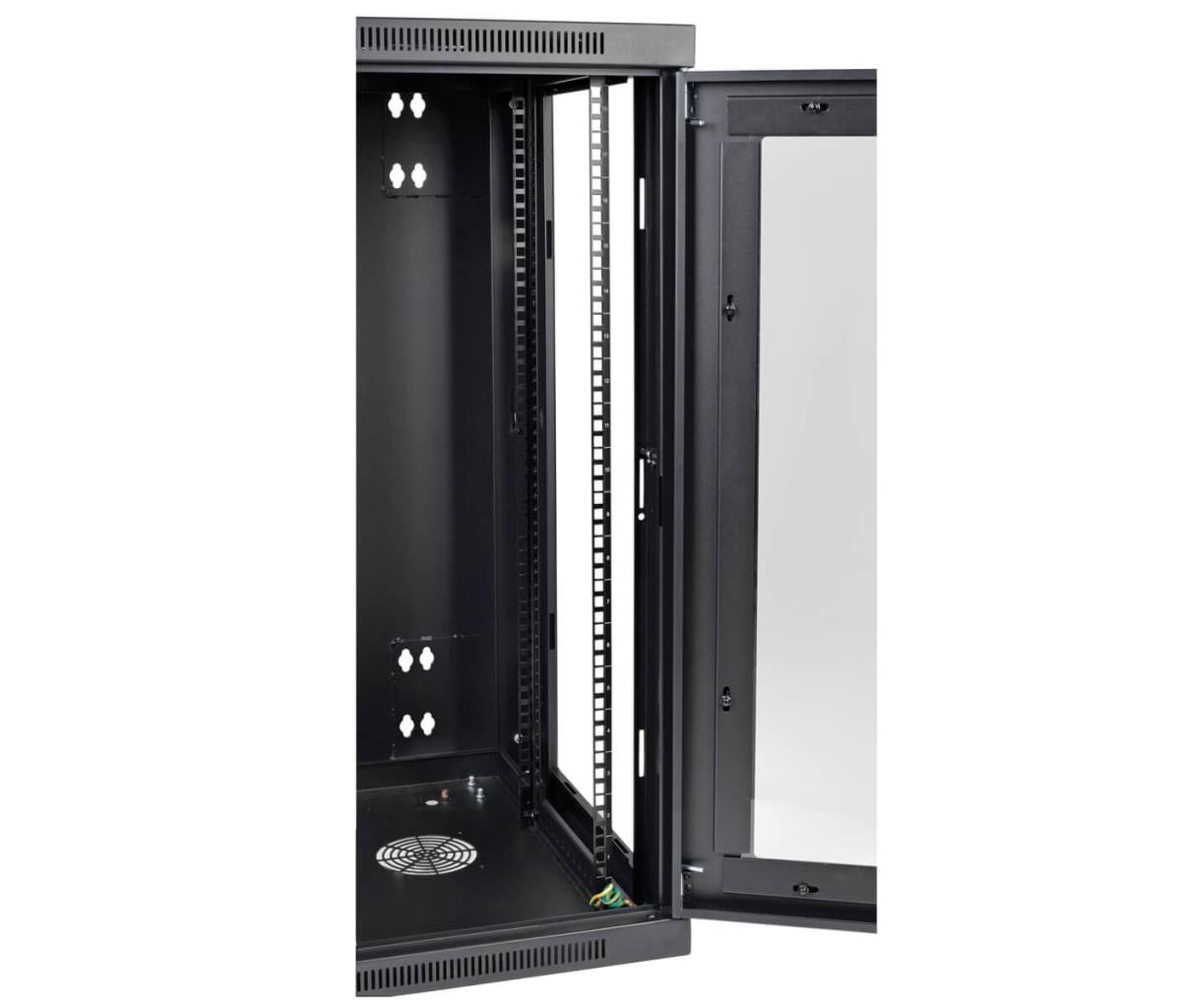

The SRW18USG comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to house equipment up to 20.5 inches deep, such as network switches and patch panels.
| Kenmerken | |
| Rackcapaciteit | 18U |
| Soort | Vrijstaande rek |
| Maximale gewichtscapaciteit | 113 kg |
| Kleur van het product | Zwart |
| Materiaal | Staal |
| Verbeterd kabelbeheer | Ja |
| Certificering | UL/CSA 60950-1, EIA-310-D, IEC 60297-3-100 |
| Gewicht en omvang | |
| Maat | 48,3 cm (19") |
| Breedte | 599,4 mm |
| Diepte | 548,6 mm |
| Hoogte | 904,2 mm |
| Gewicht | 43,5 kg |
| Verpakking | |

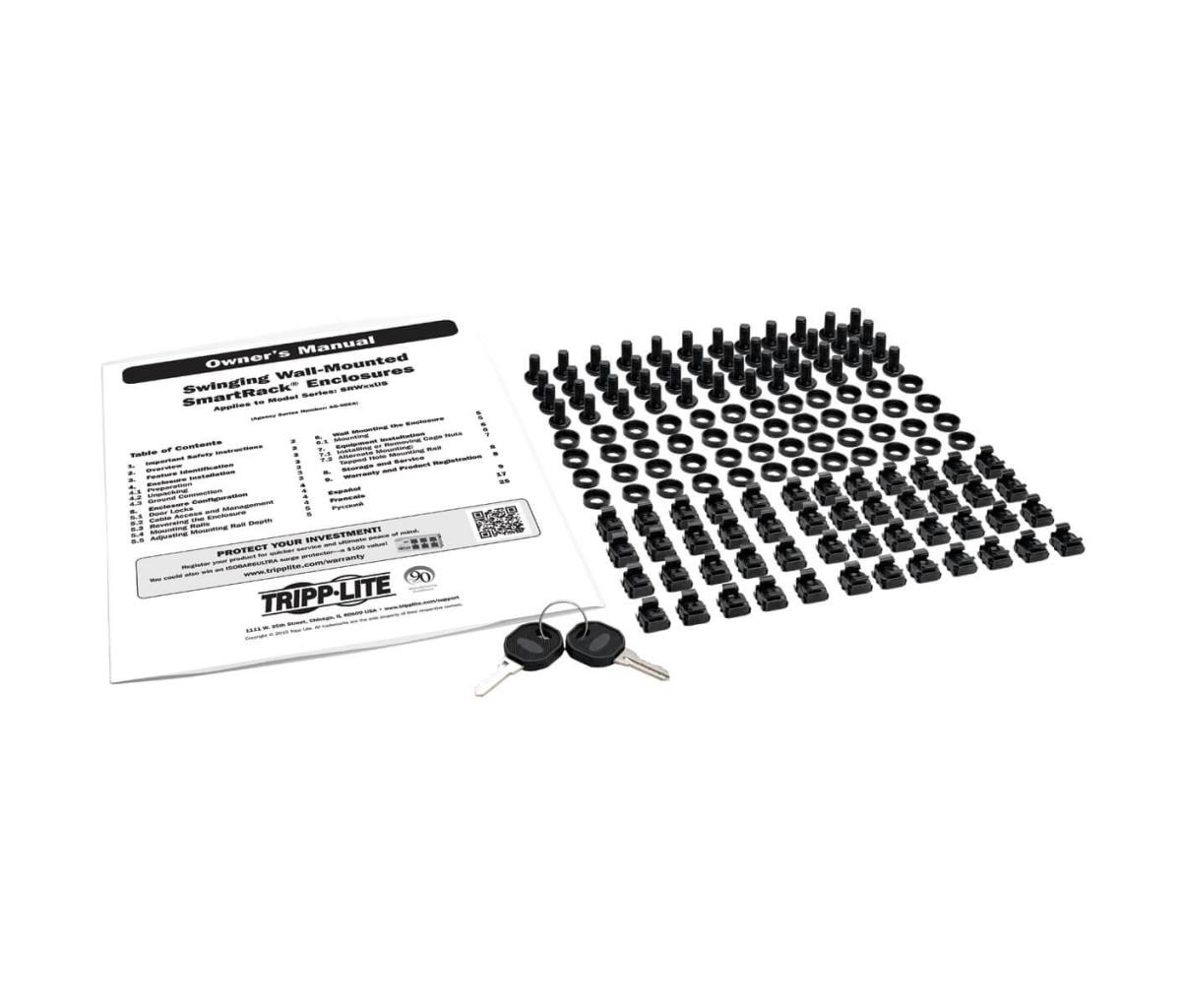

| Moeren inbegrepen | Ja |
| Moeren aantal | 42 |
| Inclusief schroeven | Ja |
| Aantal schroeven | 42 |
| Inbegrepen sluitringen aantal | 42 |
| Gebruikershandleiding | Ja |
| Breedte verpakking | 662,9 mm |
| Diepte verpakking | 612,9 mm |
| Hoogte verpakking | 1034 mm |
| Gewicht verpakking | 50,6 kg |
| Technische details | |
| Duurzaamheidscertificaten | RoHS |
| Logistieke gegevens | |
| Land van herkomst | China |
| Code geharmoniseerd systeem (HS) | 8517,79,0000 |
| (Buitenste) hoofdverpakking breedte | 662,9 mm |
| (Buitenste) hoofdverpakking lengte | 612,9 mm |
| (Buitenste) hoofdverpakking hoogte | 1034 mm |
| (Buitenste) hoofdverpakking brutogewicht | 50,6 kg |
| Hoeveelheid per (buitenste) hoofdverpakking | 1 stuk(s) |
| Warranty | |
| Base Warranty | Non Non |
