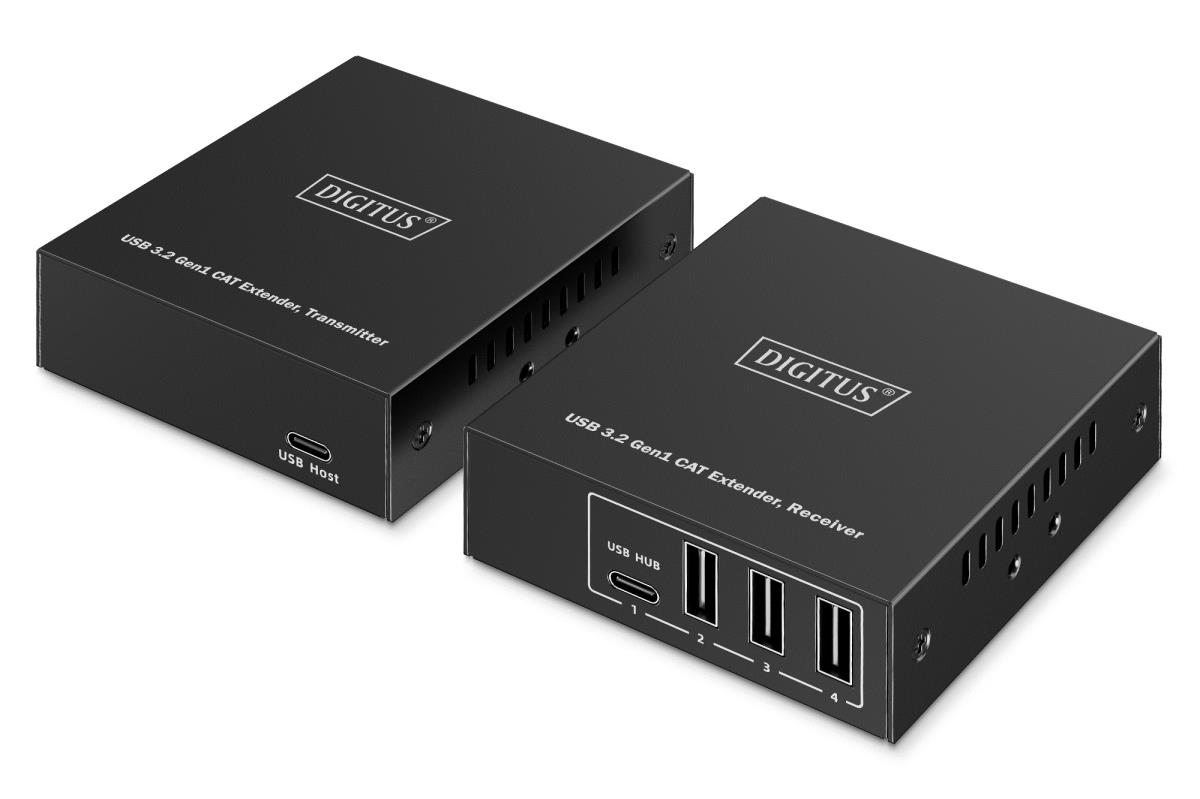

USB Extender - USB 3.2 Gen1 100m 3x USB-A & 1x USB-C For use with CAT cable
ITCurry #: M9239650 | Article #: DA-73121-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Overcome the limitations of USB cable lengths and reliably connect up to four USB devices over distances of up to 100m with a CAT 6A (or higher) cable. The extender offers high data rates and is ideal for offices, industry and conferences.
- USB extension up to 100m via CAT 6A (or higher)
- Transmitter unit is supplied with power via the host PC - No additional power supply unit required
- Multifunctional USB hub: Supports the connection of up to four USB devices simultaneously (3x USB-A 3.2 Gen1, 1x USB-C 3.2 Gen1)
- USB 3.2 Gen1: Supports transfer rates of up to 5 Gbps, ideal for numerous USB devices such as printers, cameras, hard disks, keyboards and more
- Safe protection: integrated ESD protection (up to 8kV) and overvoltage protection for your devices
- Plug & Play: No software required. Simply connect and use immediately
- Robust and versatile: ideal for demanding environments such as industry, large offices or security systems thanks to its metal housing
This USB extender provides a reliable solution to transmit USB signals over distances of up to 100 meters using a CAT 6A (or higher) network cable (not included) without signal loss. Ideal for use in large offices, conference rooms, surveillance systems or industrial environments where longer USB connections are required. The USB 3.2 Gen1 standard enables transfer rates of up to 5 Gbps. Nothing stands in the way of a fast and smooth connection of various USB devices such as cameras, hard disks, printers, scanners, keyboards, mice and USB sticks. Thanks to the support of USB 2.0 and 1.1, older devices can also be integrated without any problems. The extender offers maximum flexibility thanks to its four USB inputs (3x USB-A 3.2 Gen1 and 1x USB-C 3.2 Gen1), allowing multiple devices to be operated simultaneously - ideal for working environments with different peripherals. The Power-over-Cable (PoC) function ensures that only the receiver requires an external power source, simplifying installation and eliminating cable clutter. The Plug & Play design enables easy installation without the need for additional drivers. In addition, the robust metal housing ensures durability and stability, even in demanding industrial environments. Say goodbye to the limitations of traditional USB cables - with this Digitus USB 3.2 Gen1 Extender you can place your USB devices where you need them without compromising on performance.
| Technische details | |
| Soort | Console-zender & ontvanger |
| Overdrachtssnelheid | 5000 Mbit/s |
| Ethernet LAN | Ja |
| Ethernet interface type | Gigabit Ethernet |
| Maximaal bereik | 100 m |
| Kleur van het product | Zwart |
| Aansluitingen | 1x USB 3.0 C in 1x USB 3.0 C Out |
| Materiaal behuizing | Aluminium, Metaal |
| LED-indicatoren | Ja |
| Ondersteundende kabel types | Cat6a |
| Plug and play | Ja |
| Poorten & interfaces | |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 3 |
| RJ-45 ports hoeveelheid | 2 |
| Aansluiting voor netstroomadapter | Ja |
| Gewicht en omvang | |
| Breedte | 76 mm |
| Diepte | 85 mm |
| Hoogte | 25 mm |
| Transmitter gewicht | 168 g |
| Receiver gewicht | 178 g |
| Breedte verpakking | 149 mm |
| Diepte verpakking | 199 mm |
| Hoogte verpakking | 80 mm |
| Gewicht verpakking | 900 g |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -20 - 60 øC |
| Inhoud van de verpakking | |
| Meegeleverde kabels | DC, USB Type-a naar USB Type-C, USB Type-C |
| Montage gereedschap | Ja |
| Gebruikershandleiding | Ja |
| Snelstartgids | Ja |
| Energie | |
| Type stroombron | DC |
| Vermogensverbruik (max) | 3,5 W |
| Stroomverbruik (typisch) | 2,5 W |
| Ingangsspanning | 12 V |
| Stroom | 3 A |
| Spanning | 12 V |
| Output current | 3 A |
| Warranty | |
| Base Warranty | Non Non |
