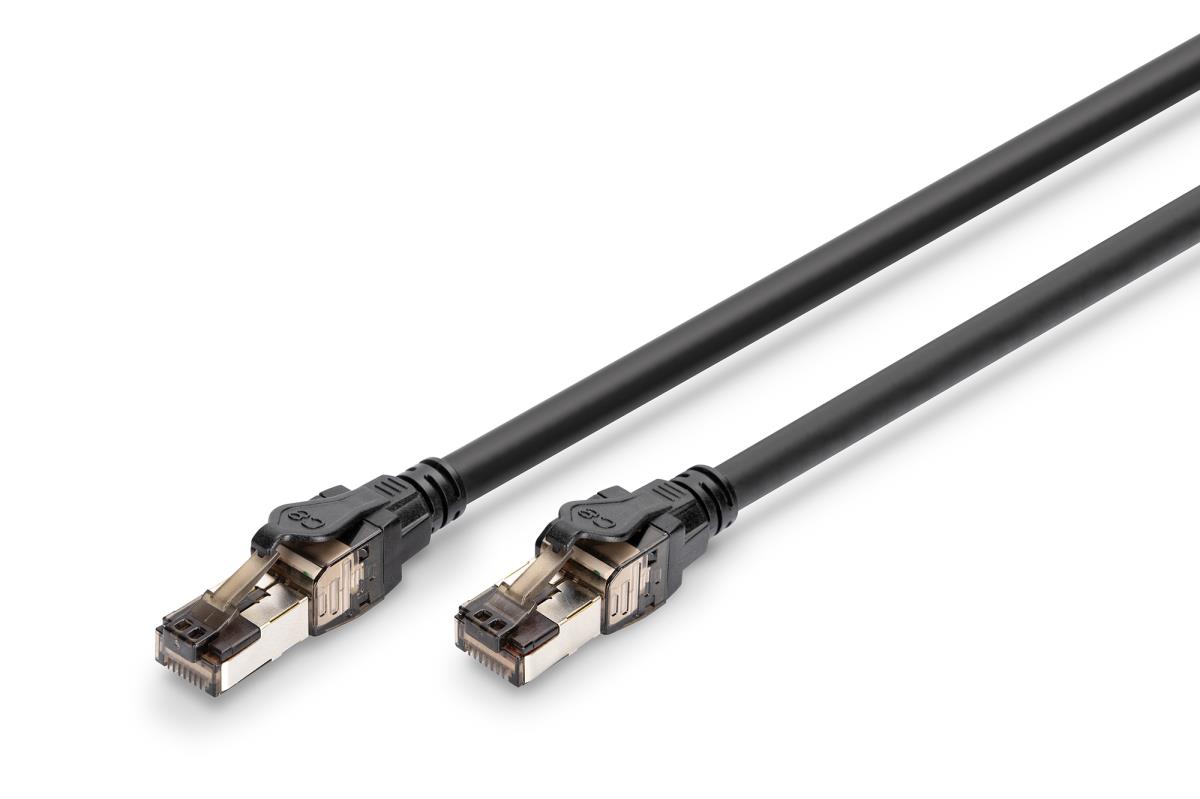

patch cable - Cat 8.1 - S/FTP - AWG 24/7 - 5m - Black
ITCurry #: M9239731 | Article #: DK-1843-050-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The high-end network solution according to the CAT 8.1 standard
- Highest performance: The CAT 8.1 patch cable with connector supports transmission rates of up to 40 Gbit/s at 2000 MHz for maximum network performance
- New connector: RJ45 connector with integrated PCB for improved signal integrity and long-term stability
- Future-proof compatibility: Ideal for high-speed data centers, server rooms and industrial applications
- Supports the IEEE 802.3af (PoE), 802.3at (PoE+) and 802.3bt (PoE++ Type 3 & Type 4) standards
The DIGITUS® Category 8.1 Class I patch cables are manufactured and tested according to the ISO/IEC 11801 and DIN EN 50173 CAT 8.1 standard. They guarantee that the cable installation complies with the ISO & EN Channel specification and offer excellent performance in DIGITUS® CAT 8.1 cabling. The performance has been tested up to 2,000 MHz, including performance characteristics such as near-end crosstalk ("NEXT"). The DIGITUS® patch cables have been specially developed to fully meet all requirements in the various application areas. Each cable is equipped with a molded anti-kink grommet with strain relief. The grommet also has a latching lever protection, which prevents the cable from getting caught and the latching lever from breaking off the plug.
| Kenmerken | |
| Kleur van het product | Zwart |
| Snoerlengte | 5 m |
| Kabel standaard | Cat8.1 |
| Kabelafscherming | S/FTP (S-STP) |
| Aansluiting 1 | RJ-45 |
| Aansluiting 2 | RJ-45 |
| Aansluiting 1 type | Mannelijk |
| Aansluiting 2 type | Mannelijk |
| Connector 1 vormfactor | Recht |
| Connector 2 vormfactor | Recht |
| Contact geleider materiaal | Goud |
| Aansluitbehuizing | Ja |
| Materiaal aansluitbehuizing | Metalen folie |
| Materiaal buitenmantel | Halogeenvrij |
| Kabelvorm | Rond |
| Geleidermateriaal | Koper |
| AWG draad omvang | 24/7 |
| Frequentie | 2000 MHz |
| Krommingsstraal (min) | 1,5 cm |
| Plug and play | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -20 - 60 øC |
| Certificaten | |
| Certificering | IEC 60332-1 IEC 61034 SO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-5 |
| Gewicht en omvang | |
| Outer diameter | 8 mm |
| Inhoud van de verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Verpakking | |
| Breedte verpakking | 340 mm |
| Diepte verpakking | 370 mm |
| Hoogte verpakking | 10 mm |
| Gewicht verpakking | 240 g |
| Warranty | |
| Base Warranty | Non Non |
