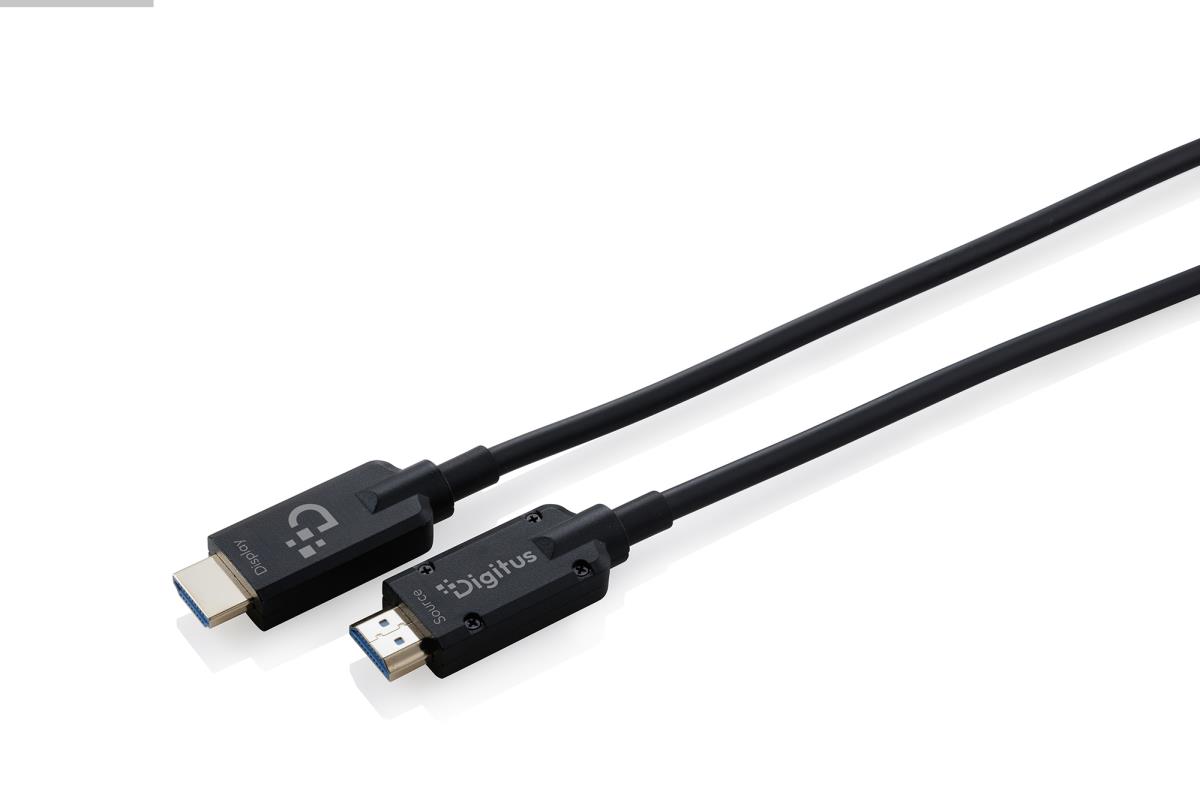

HDMI AOC Fiber Optic Cable armored - Type A M/M, Ultra HD, 8K@60 Hz black - 50m
ITCurry #: M9239899 | Article #: AK-330128-500-S-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
8K signal quality over 50 meters - loss-free, low-interference and optimally protected for demanding installations thanks to metal armoring.
- Metal armoring: Significantly more robust than regular AOC cables
- Active fiber optic technology with up to 48 Gbps for delay-free transmission
- Supports resolutions up to 8K @ 60 Hz (UHD-2) and 4K @ 120 Hz
- Transmits uncompressed HDMI video and audio signals over 20 meters
- Flexible installation with a very tight bending radius of 59 mm
- Compact, installation-friendly cable with an outer diameter of approx. 5.9 mm despite armoring
- Insensitive to electromagnetic interference (EMI) due to hybrid structure of fiber optic and copper wires
- Supports HDR, HDCP 2.2, EDID, CEC and ARC
- Professional quality: gold-plated HDMI-A plug with aluminum housing + Silicon-Line converter chip for reliable signal conversion
- Ideal for events, concerts, trade fairs and other harsh environments
This armored HDMI 2.1 AOC cable is the reliable solution for ultra HD video and audio transmission in 8K over long distances - where classic passive HDMI cables reach their limits. Thanks to the combination of fiber optic and copper conductors, the cable offers the highest signal quality with maximum interference immunity (EMI-resistant) and guarantees stable transmission with up to 48 Gbps bandwidth and resolutions up to 8K@60Hz and 4K@120Hz. The robust construction with metal armoring protects the cable from mechanical stress during installation and operation. The small outer diameter of only approx. 5.9 mm enables simple and flexible installation - ideal for professional AV installations (e.g. conference rooms, digital signage, home cinema setups). Modern picture standards such as HDR, HDR10, HDR10+, Dolby Vision and HLG as well as high-quality audio formats such as Dolby TrueHD and DTS-HD Master Audio are supported. Thanks to Plug & Play, no additional driver installation is required - simply connect and immediately enjoy the highest picture quality. Important: The cable is directional. Please connect the "Source" plug to the source device and the "Display" plug to the output device.
| Kenmerken | |
| Snoerlengte | 50 m |
| Aansluiting 1 | HDMI Type A (Standaard) |
| Aansluiting 2 | HDMI Type A (Standaard) |
| Aansluiting 1 type | Mannelijk |
| Aansluiting 2 type | Mannelijk |
| Connector 1 vormfactor | Recht |
| Connector 2 vormfactor | Recht |
| HDMI-kabeltype | Ultra High Speed HDMI cable |
| Kleur van het product | Zwart |
| HDMI versie | 2.1 |
| Ondersteunde grafische resoluties | 7680 x 4320, 3840 x 2160 |
| Audio Return Channel (ARC) | Ja |
| HDMI-ethernetkanaal | Ja |
| HDCP | Ja |
| HDCP versie | 1.4/2.2/2.3 |
| Overdrachtssnelheid | 48 Gbit/s |
| HDR-ondersteuning | Ja |
| High Dynamic Range (HDR)-technologie | High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG), Dolby Vision |
| Maximale refresh snelheid | 144 Hz |
| Contact geleider materiaal | Goud |
| Soort kabel | Ronde kabel |
| Plug and play | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -20 - 60 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 20 - 80 procent |
| Luchtvochtigheid bij opslag | 10 - 90 procent |
| Gewicht en omvang | |
| Diameter van de kabel | 5,9 mm |
| Afmetingen 1 connector (BxDxH) | 20 x 44,8 x 12,2 mm |
| Afmetingen 2 connector (BxDxH) | 20 x 44,8 x 12,2 mm |
| Verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Warranty | |
| Base Warranty | Non Non |
