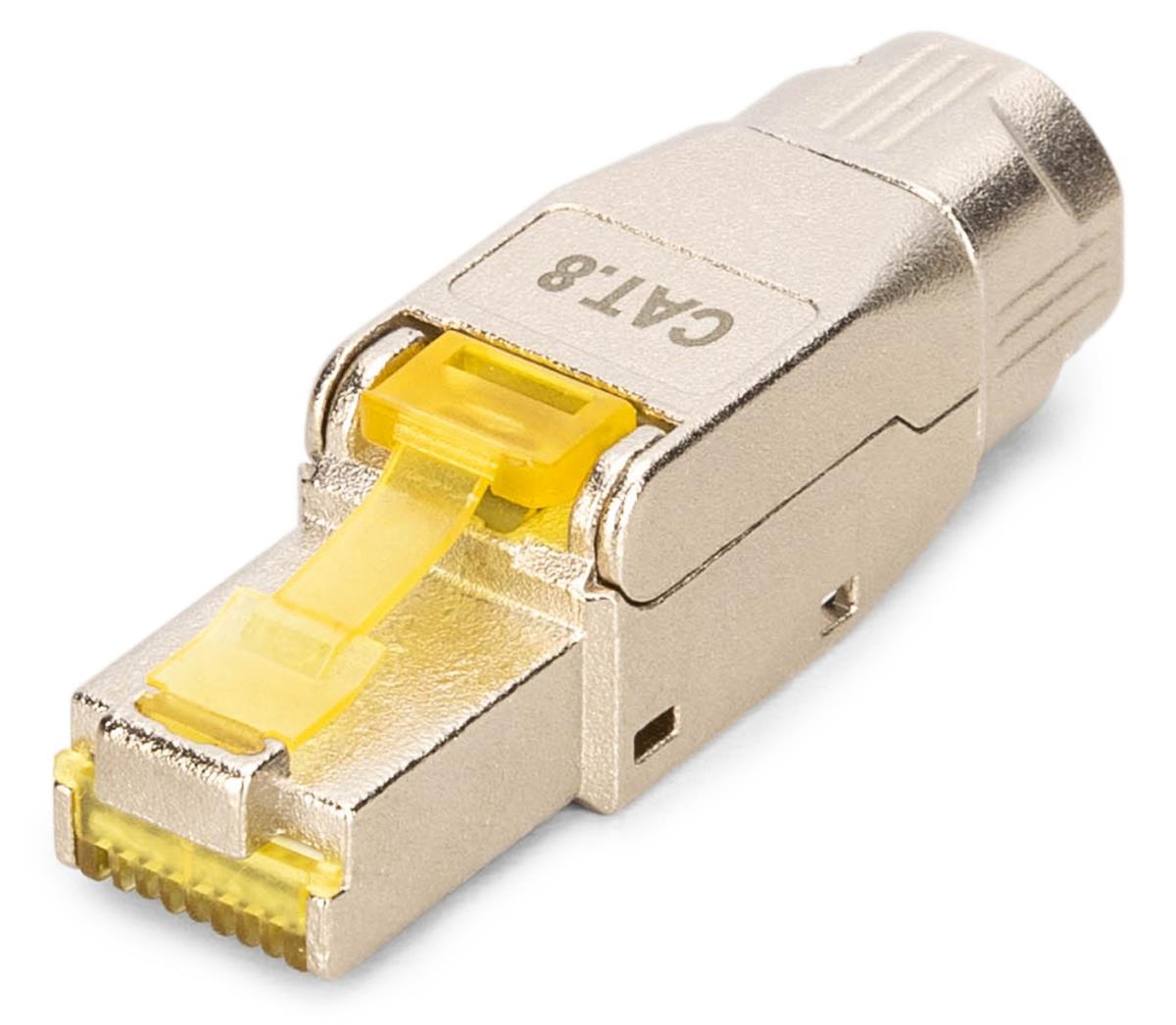

Cat.8.1 Field Termination Plug - shielded metal screw and dust cap
ITCurry #: M9239773 | Article #: DN-93838-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
25/40GBase-T transmission speed in permanent link up to 24 m and channel link up to 30 m
- High-speed transmission - Supports 25/40GBase-T with a bandwidth of 2000 MHz for ultra-fast networks
- Excellent shielding - The 360° shield contact minimizes interference and guarantees a stable connection
- Tool-free installation - field connector enables quick and easy installation without special tools
- Application area - Ideal for data centers, industry, building cabling and telecommunications
The DIGITUS® CAT 8.1 field connector with tool-free installation connection, which impresses with its future-oriented standards and high-end quality for your network. The field connector is suitable for patch cable installation with solid and stranded conductor cables. It conforms to category 8.1 / 25/40GBase-T ISO/IEC 11801, IEC 60603-7-81. The robust metal housing ensures long-lasting, stable connections. The quick assembly without special tools makes this field connector the ideal choice for installation, repair and maintenance.
| Kenmerken | |
| Aansluiting(en) | RJ-45 |
| Geslacht connector | Mannelijk |
| Connector vormfactor | Recht |
| Kleur van het product | Zilver, Geel |
| Kabel standaard | Cat8.1 |
| Contact geleider materiaal | Nikkel/Goud |
| Aansluitbehuizing | Ja |
| Type Power over Ethernet (PoE) ondersteunt | PoE++ (4PPoE) |
| Netwerkstandaard | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Di‰lektrische sterkte | 1000 V |
| Insteekkracht | 30 N |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -20 - 70 øC |
| Verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Breedte verpakking | 20 mm |
| Diepte verpakking | 40 mm |
| Hoogte verpakking | 10 mm |
| Gewicht verpakking | 20 g |
| Technische details | |
| Connector-materiaal | Fosforbrons |
| Materiaal behuizing | Zink |
| Warranty | |
| Base Warranty | Non Non |
