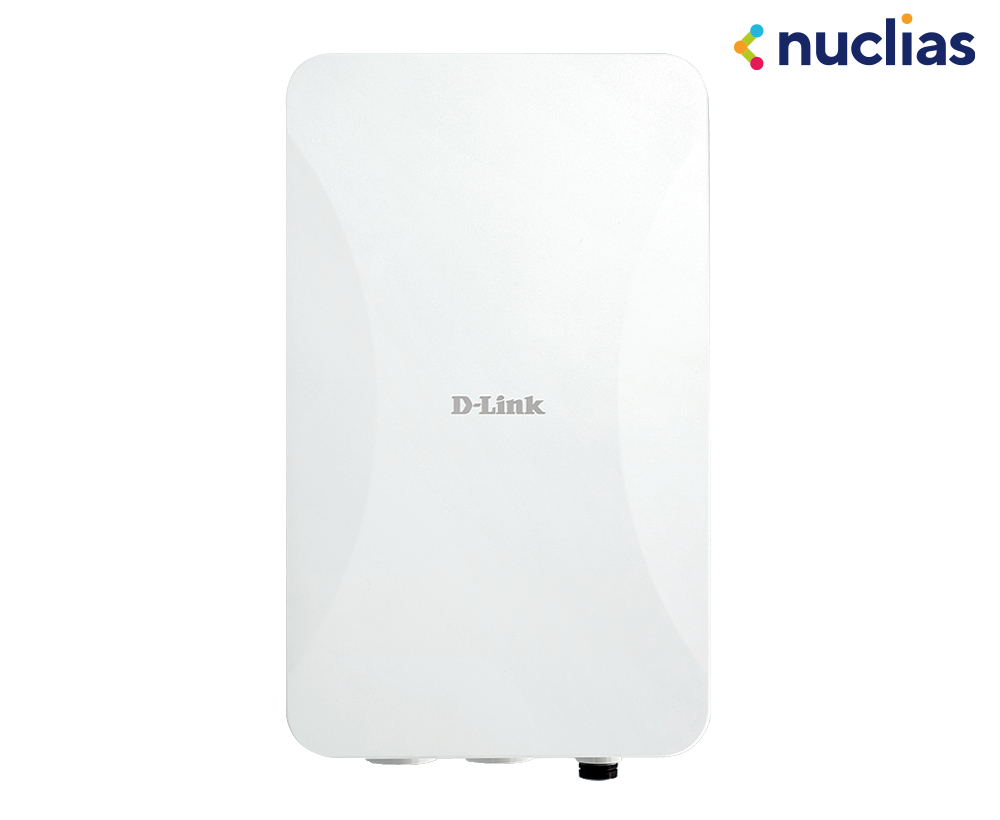

Wireless Access Point Dap-e3620ou Nuclias Connect Wi-Fi7 Be9500
ITCurry #: 12135381 | Article #: DAP-E3620OU-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Wi-Fi 7 Technology
Dual-band Wi-Fi 7 (802.11be), BE3600 class (2×2 + 2×2), delivering lower latency and higher efficiency for multi-user traffic
Rugged Outdoor Design
IP67-rated weatherproof design for reliable outdoor deployment and built for harsh environments with reduced maintenance
Customizable Captive Portal
Per-SSID captive portal support enables branded guest access, promotions, and flexible login workflow
VLAN per SSID
Each SSID to a dedicated VLAN for traffic segmentation, enabling simple separation of networks through policy-based control
Protection and Mounting
Flexible mounting options combined with durable protection ensure reliable installation and long-term performance
Centralized Management
Centralized management through Nuclias Unity or Nuclias hardware/software controllers (DNH-1000, DNC-5000)
Faster Wireless,
Better Business Experiences
- Experience next-generation dual-band Wi-Fi 7 (BE3600 class) built for modern business networks, delivering faster speeds, lower latency, and more reliable connectivity.
- With up to 5 GHz up to 2882 Mbps and 2.4 GHz up to 688 Mbps, businesses gain high-capacity performance for productivity, collaboration, and everyday wireless connectivity.
- Advanced 4K-QAM improves throughput and device capacity, while Multi-Link Operation (MLO) enhances responsiveness and reliability in busy environments.
- Designed for resort garden, school campus, public square and outdoor application,
- it provides stable, scalable wireless performance for staff, guests, and connected
- devices-helping improve productivity, user experience, and operational efficiency.
Outdoor Wi-Fi 7 That Braves the Elements
Engineered for harsh environments, the DAP-E3620OU delivers blazing Wi-Fi 7 (BE3600) speeds inside a fully weatherproof chassis built for year-round reliability. Its IP67-rated enclosure and wide temperature tolerance keep connections stable through pouring rain, scorching heat, and freezing cold. With a 2.5GbE PoE uplink, you can place it anywhere without worrying about power outlets—perfect for campuses, factories, public plazas, and outdoor dining areas.
Easy Installation & High-Speed Deployment
The DAP-E3620OU features a single-cable 2.5GbE and PoE+ connection, delivering both power and high-speed data through one Ethernet cable. This simplifies installation, reduces cabling complexity, and enables more flexible device placement in outdoor environments where power access may be limited.
With high-speed 2.5GbE backhaul support, the wired network can fully support Wi-Fi 7 performance without bottlenecks, ensuring smooth connectivity for bandwidth-intensive applications and wireless deployments.
Simplified Centralized Network Management
- The DAP-E3620OU integrates seamlessly with D-Link Nuclias Unity and Nuclias hardware and software controllers, including the DNH-1000 and DNC-5000, to streamline Wi-Fi management for growing business networks.
- Through an intuitive dashboard, IT teams can quickly provision access points, enforce SSID and VLAN policies, deploy firmware updates, and monitor network health across sites. Centralized visibility and configuration simplify deployment, accelerate troubleshooting, and reduce routine maintenance, making it easy to scale from small installations to enterprise environments with consistent performance and security.
| Kenmerken | |
| 2,4 GHz | Ja |
| 5 GHz | Ja |
| 6 GHz | Nee |
| Maximale overdrachtssnelheid van gegevens | 3600 Mbit/s |
| Maximale overdrachtssnelheid van gegevens (2.4 GHz) | 688 Mbit/s |
| Maximale overdrachtssnelheid van gegevens (5 GHz) | 2882 Mbit/s |
| Ethernet LAN, data-overdrachtsnelheden | 1000,2500 Mbit/s |
| Frequentieband | 2.4/5 GHz |
| Netwerkstandaard | IEEE 802.11be, IEEE 802.11ax, IEEE 802.3at, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz |
| MIMO | Ja |
| MIMO-type | Multi User MIMO |
| Draadloze isolatie | Ja |
| Bandbreedteaansturing | Ja |
| Beveiliging | |
| Ondersteunde beveiligingsalgoritmen | WPA, WPA2, WPA3, AES, AES-CCMP, WEP, 802.1x RADIUS, SNMP |
| MAC adres filtering | Ja |
| Service Set Identifier (SSID) functies | SSID-broadcast, Multiple SSIDs |
| Remote Authentication Dial-In User Service (RADIUS) | Ja |
| Beheerfuncties | |
| Web-gebaseerd management | Ja |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 2 |
| Energie | |
| Power over Ethernet (PoE) | Ja |
| Vermogensverbruik (max) | 17,04 W |
| Design | |
| Plaatsing | Paal, Muur |
| Kleur van het product | Wit |
| Reset button | Nee |
| LED-indicatoren | Stroom, Link, Status, WLAN |
| Antenne | |
| Soort antenne | Intern |
| Antennas quantity | 4 |
| Antenne versterkingsniveau (max) | 6 dBi |
| Gewicht en omvang | |
| Breedte | 181 mm |
| Diepte | 88 mm |
| Hoogte | 304 mm |
| Eisen aan de omgeving | |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Bedrijfstemperatuur (T-T) | -30 - 55 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Warranty | |
| Base Warranty | Non Non |
