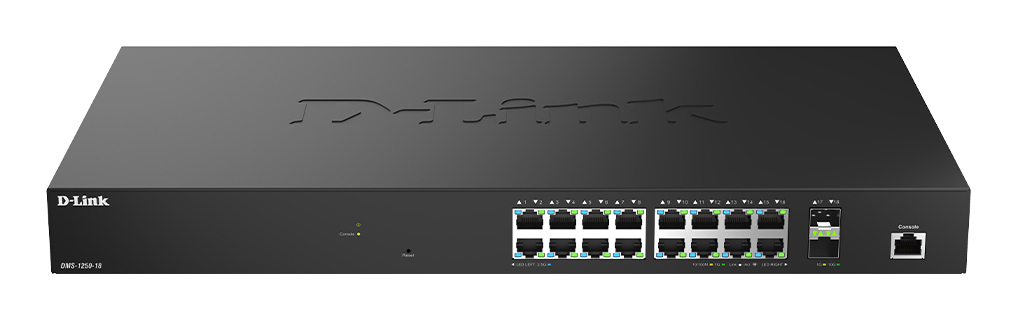

Switch Dms-1250-18 18-port 2.5g Multi Gigabit Ethernet L2 Smart Managed
ITCurry #: 12135364 | Article #: DMS-1250-18/E-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The DMS-1250 Series is D-Link’s newest family of Multi-Gigabit Ethernet smart switches. It provides multi-Gigabit connectivity, Power over Ethernet (PoE) capability, multiple management interfaces and advanced layer 2 features. The DMS-1250 Series provides a high-performace solution to expand your network and adapts to your business needs.
Highlights
Multi-Gigabit Ethernet Connection Delivers fast 2.5 Gbps performance using existing cabling, suitable for Wi-Fi 6 network deployments
10G Uplink Connections
Two 10-Gigabit Ethernet or SFP+ uplink ports allow for additional connections to a storage device or uplink network
Power over Ethernet
PoE+ (30W) or PoE++ (90W) options to simultaneously power multiple types of PoE devices with various power draw requirements
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L2 |
| Quality of Service (QoS) | Ja |
| Web-gebaseerd management | Ja |
| Traffic-classificatie | Ja |
| ARP-inspectie | Ja |
| Locatie-instellingen (CLI) configureren | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 16 |
| Type basis-switching RJ-45 Ethernet-poorten | 2.5G Ethernet (100/1000/2500) |
| Aantal moduleslots SPF+ | 2 |
| Netstekker | AC-in-aansluiting |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z |
| Port mirroring | Ja |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| Broadcast stormbeheer | Ja |
| Rate limiting | Ja |
| Auto MDI/MDI-X | Ja |
| Spanning tree protocol | Ja |
| Active Link-detectie | Ja |
| VLAN=ondersteuning | Ja |
| Aantal VLANs | 4096 |
| Data-uitwisseling | |
| Switchingcapaciteit | 120 Gbit/s |
| Verzending snelheid | 89,29 Mpps |
| MAC-adrestabel | 16000 entries |
| Store-and-forward | Ja |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 12000 |
| Packet buffergeheugen | 12 MB |
| Beveiliging | |
| DHCP-functies | DHCP server, DHCP snooping |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| MAC adres filtering | Ja |
| Bescherming lus | Ja |
| Wachtwoordbeveiliging | Ja |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Design | |
| Rack-montage | Ja |
| Stapelbaar | Ja |
| Kleur van het product | Zwart |
| LED-indicatoren | Ja |
| Prestatie | |
| Intern geheugen | 512 MB |
| Flash memory | 32 MB |
| Fanloos | Ja |
| Energie | |
| Stroombron | AC |
| Vermogenstoevoer inclusief | Ja |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Vermogensverbruik (max) | 22 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -5 - 50 øC |
| Temperatuur bij opslag | -20 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Luchtvochtigheid bij opslag | 0 - 95 procent |
| Gewicht en omvang | |
| Breedte | 440 mm |
| Diepte | 250 mm |
| Hoogte | 44 mm |
| Gewicht | 2,97 kg |
| Warranty | |
| Base Warranty | Non Non |
