The HD-TXU-4KZ-111-2G is a DM® Essentials 4K60 4:4:4 transmitter designed to interoperate with a DM Essentials HD-RXU-4KZ Series receiver. A USB-C® input with DisplayPort™ Alt Mode capability enables signal extension of a DisplayPort AV signal along with USB 2.0 data. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable must be used to connect the HD-TXU-4KZ-111-2G to the DM Essentials receiver.
The HD-TXU-4KZ-111-2G is available in two models: HD-TXU-4KZ-111-2G-B (black) and HD-TXU-4KZ-111-2G-W (white).
Interoperability with a DM Essentials HD-RXU-4KZ Series Receiver
For interoperability between the HD-TXU-4KZ-111-2G and an HD-RXU-4KZ Series receiver, the DM Essentials output port of the HD-TXU-4KZ-111-2G must be connected to the DM Essentials input port of the HD-RXU-4KZ Series receiver.
NOTE: USB 2.0 data extension is not supported if the HD-TXU-4KZ-111-2G is paired with a DM Essentials receiver other than an HD-RXU-4KZ Series receiver or paired with a DMPS Essentials switcher (HD-PS Series or HD-RX-4K-210-C-E[-POE]).
4K60 4:4:4 and HDR Support
The HD-TXU-4KZ-111-2G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.
USB 2.0 Data Extension

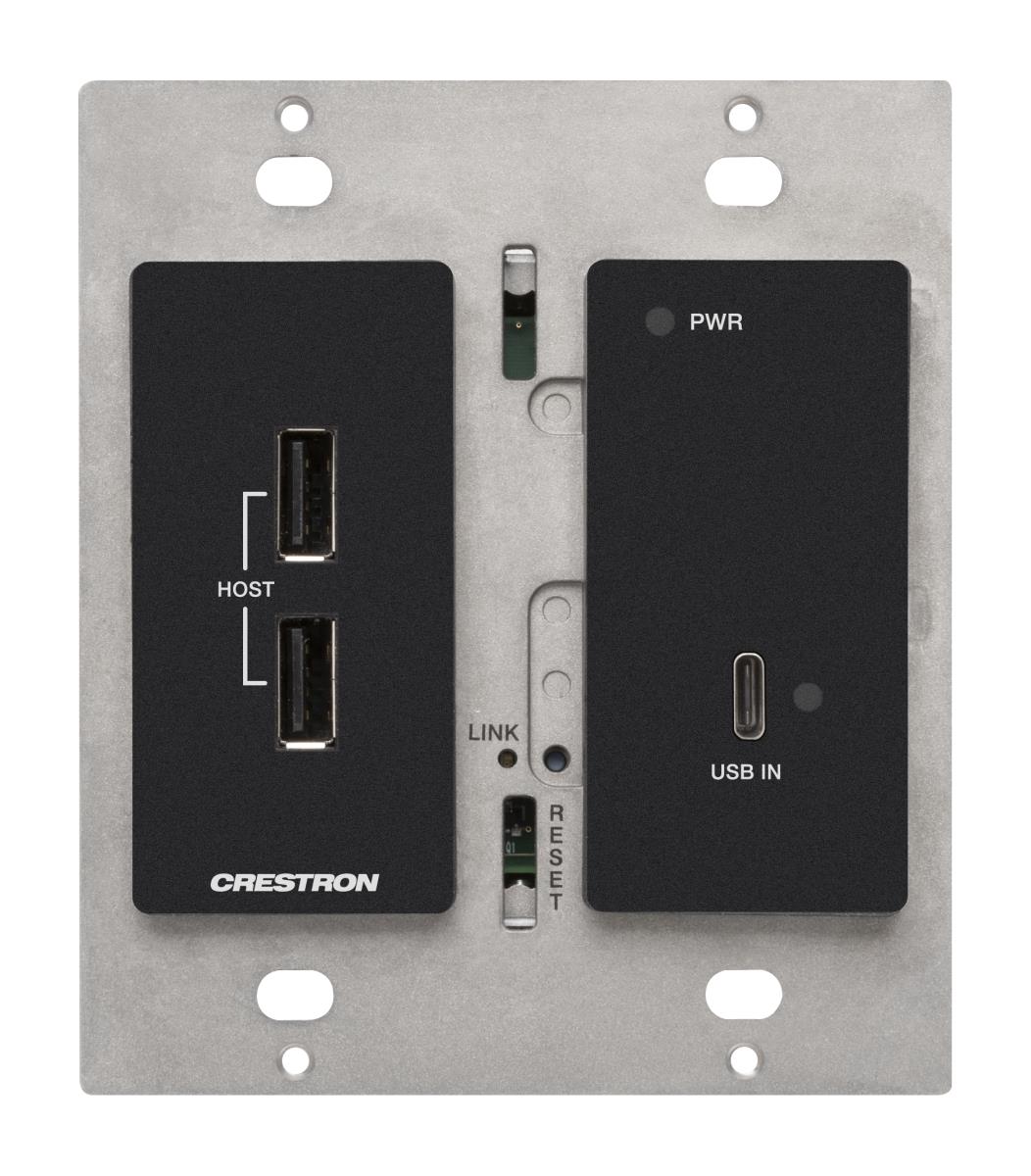

Two USB 2.0 host ports are provided on the HD-TXU-4KZ-111-2G, enabling connection to a wide variety of supported USB 2.0 peripheral devices.
Two-Gang Wall Plate Design

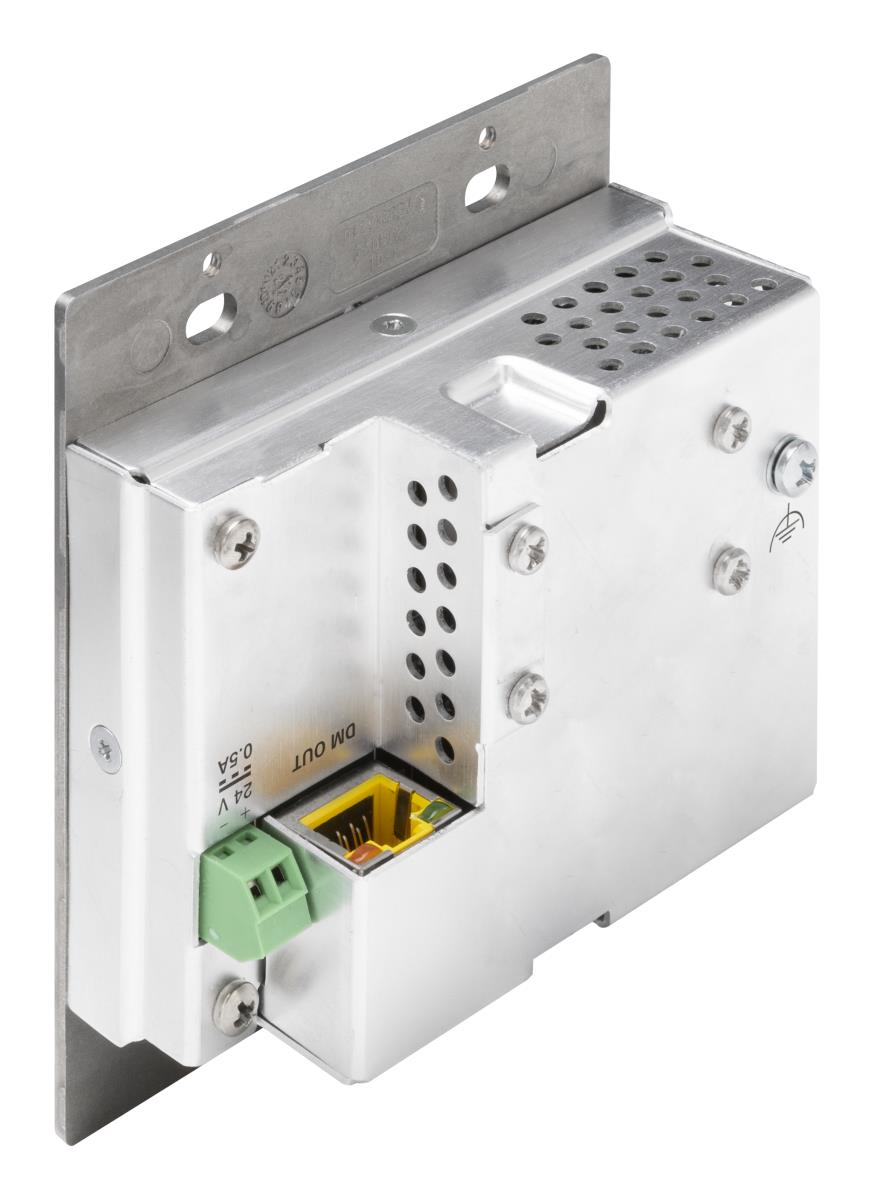

The HD-TXU-4KZ-111-2G is designed to mount into a 2-gang U.S. electrical box or plaster ring (not included). The HD-TXU-4KZ-111-2G can receive power from the remote DM Essentials receiver (surface mountable only).
| Kenmerken | |
| Soort | AV-receiver |
| Maximum resolutie | 4096 x 2160 Pixels |
| Ondersteundende kabel types | Cat5e |
| Maximaal bereik | 70 m |
| HDR-ondersteuning | Ja |
| High Dynamic Range (HDR)-technologie | Dolby Vision, High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus) |
| Maximale refresh snelheid | 60 Hz |
| IR-doorvoer | Ja |
| HDCP-passthrough | Ja |
| RS-232-passthrough | Ja |
| LED-indicatoren | Activiteit, Link, Stroom |
| Ondersteunde grafische resoluties | 1920 x 1080 (HD 1080), 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160 |
| Ondersteund audioformaat | DTS, LPCM |
| HDCP | Ja |
| Materiaal | Metaal, Polycarbonaat (PC) |
| Kleurdiepte | 12 Bit |
| Rack-montage | Ja |
| Maximaal 30 frames per seconde | 60 fps |
| HDCP versie | 2.3 |
| Kleur van het product | Wit |
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| RJ-45 invoer ports | 1 |
| Aantal HDMI-uitgangen | 1 |
| Energie | |
| Type stroombron | AC |
| AC-ingangsspanning | 100 - 240 V |
| Stroom | 2,5 A |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 20 - 90 procent |
| Gewicht en omvang | |
| Breedte | 91 mm |
| Diepte | 43 mm |
| Hoogte | 105 mm |
| Gewicht | 206 g |
| Inhoud van de verpakking | |
| Meegeleverde kabels | UTP |
| IR-extender inbegrepen | Ja |
| IR-emitter inbegrepen | Ja |
| Montagebeugels meegeleverd | Ja |
| Technische details | |
| Certificaten van naleving | CE, Federal Communications Commission (FCC) |
| Warranty | |
| Base Warranty | Non Non |
