USB Type C 3.2 Gen 1 Multistream Transport Hub To Dp Dual Monitor 4k60hz
ITCurry #: M4192861 | Article #: CSV-1555-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

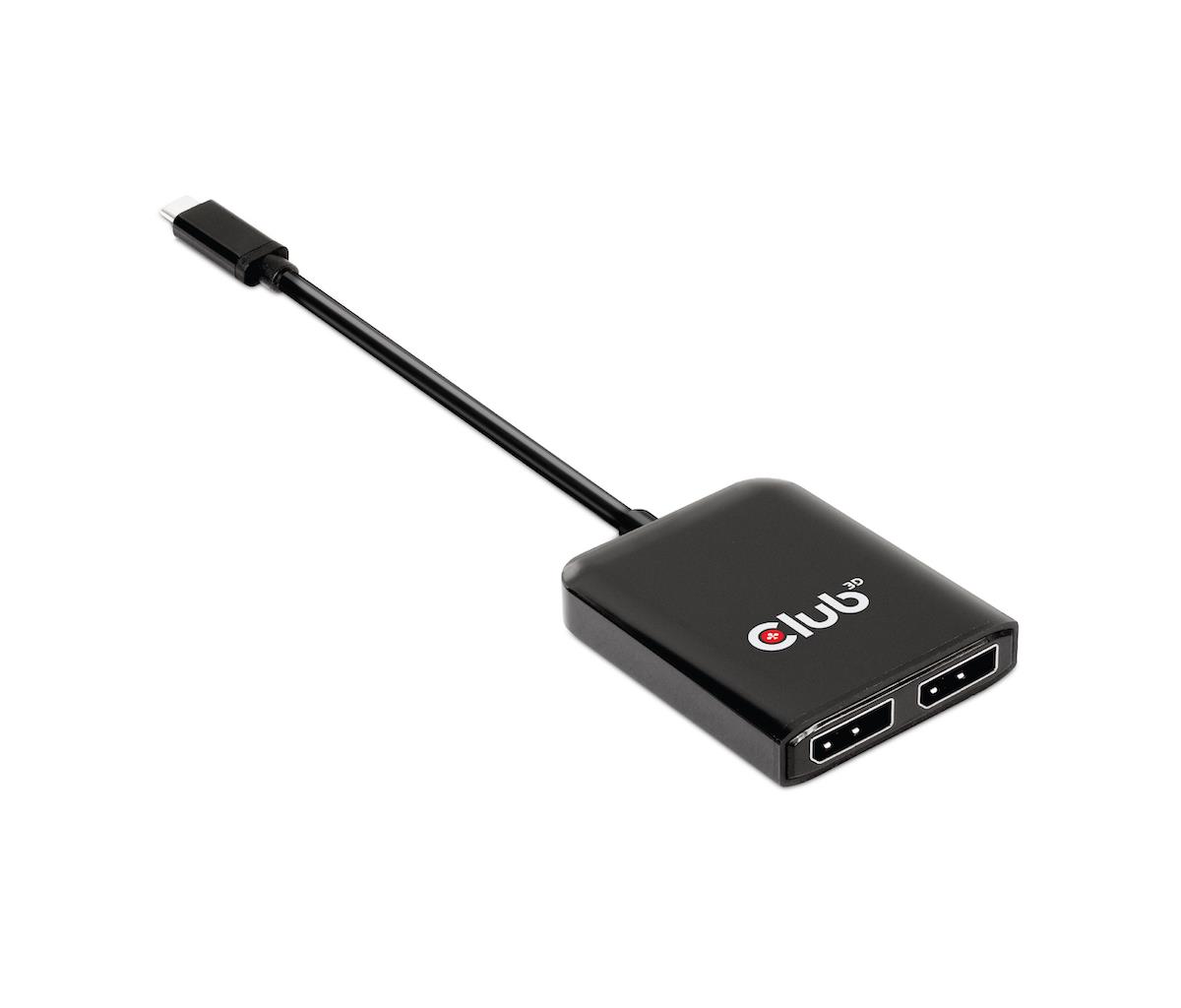

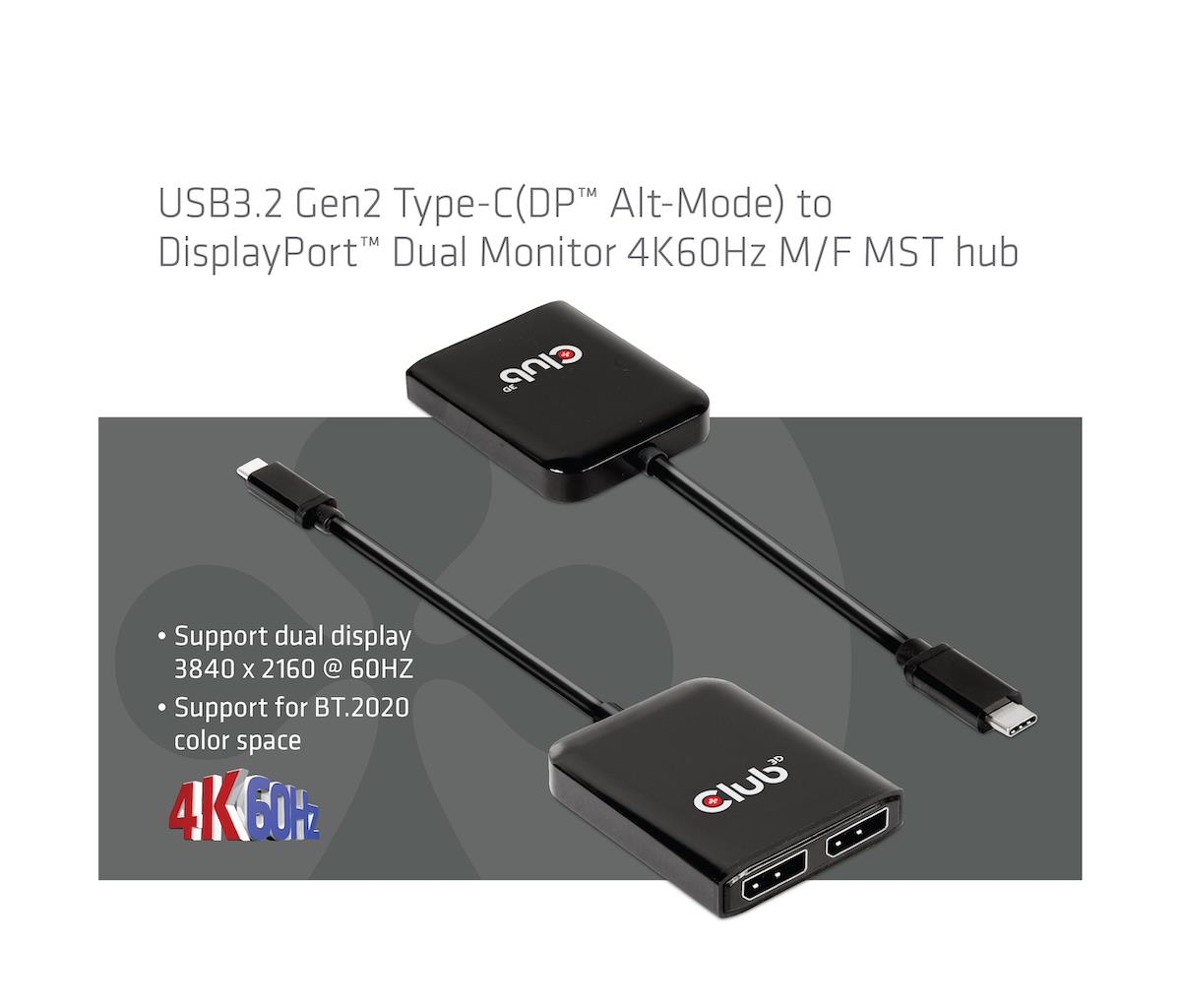

The CSV-1555 is a USB3.2 Gen2 Type-C(DP™ Alt-Mode) to DisplayPort™Dual Monitor 4K60Hz M/F MST hub. This USB-C MST hub is designed to cater for your most versatile connectivity demands, such as Mobile Phone, Tablet, laptop, etc. with a USB-C output which supports DP™ Alt-Mode.

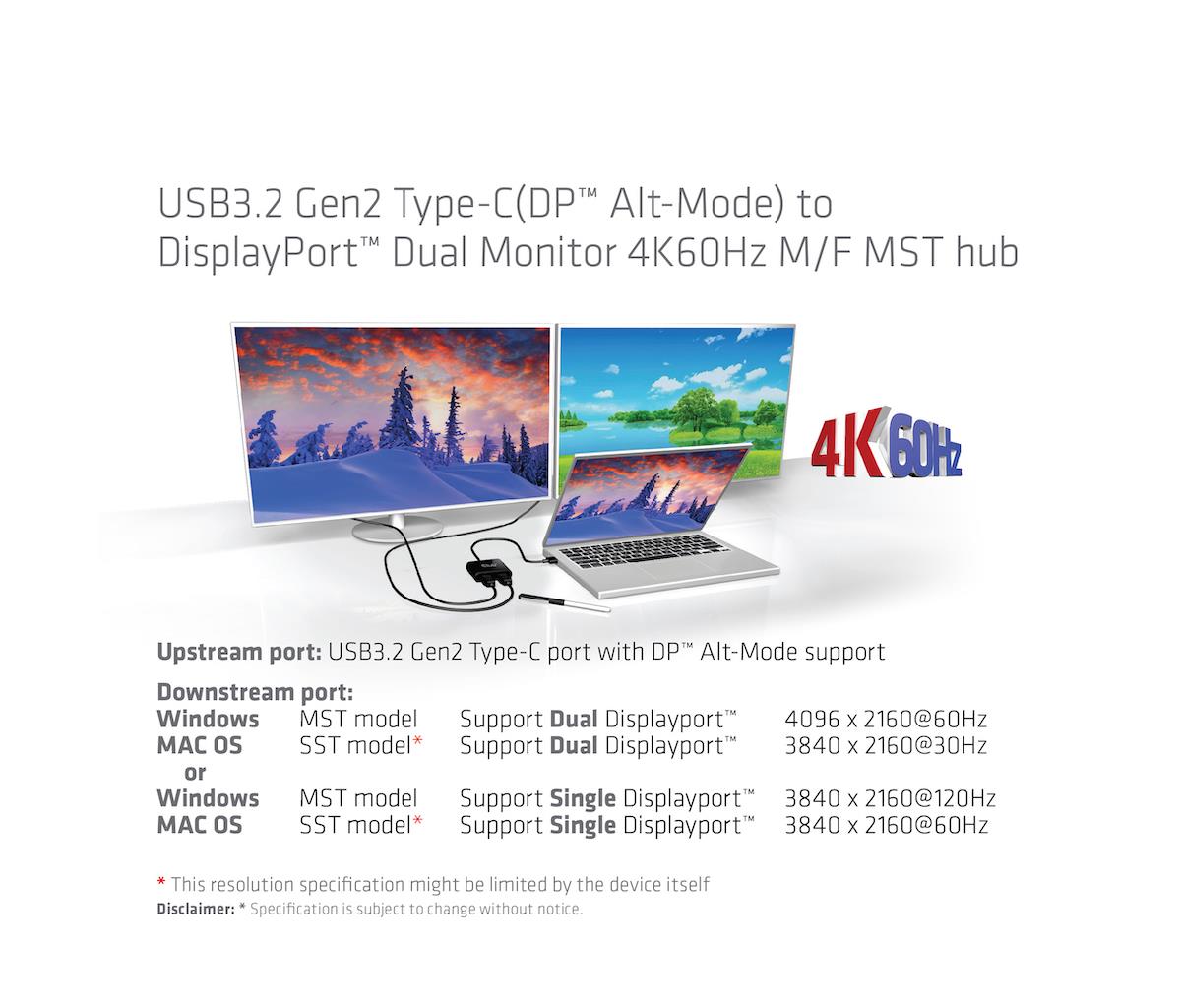

Give your Phone, Ultrabook more displays. Phones, Ultrabooks and notebooks are increasingly becoming more powerful and smaller in the physical form factor. With a single USB3.2 Gen2 port available you can now drive one- or two-Displayport™ screen simultaneously at 4K60Hz or One display at 4K120Hz. All it needs is a free USB3.2 Gen2 port with DP™ Alt-Mode on your Phone, Laptop or Ultrabook to connect to the MST hub andwill provide you with unparalleled connection options for Dual 4K60Hz displays. The setup is easy and simple to do, provided your system supports this function.
| Kenmerken | |
| Connector 1 vormfactor | Recht |
| Connector 2 vormfactor | Recht |
| Snoerlengte | 1,5 m |

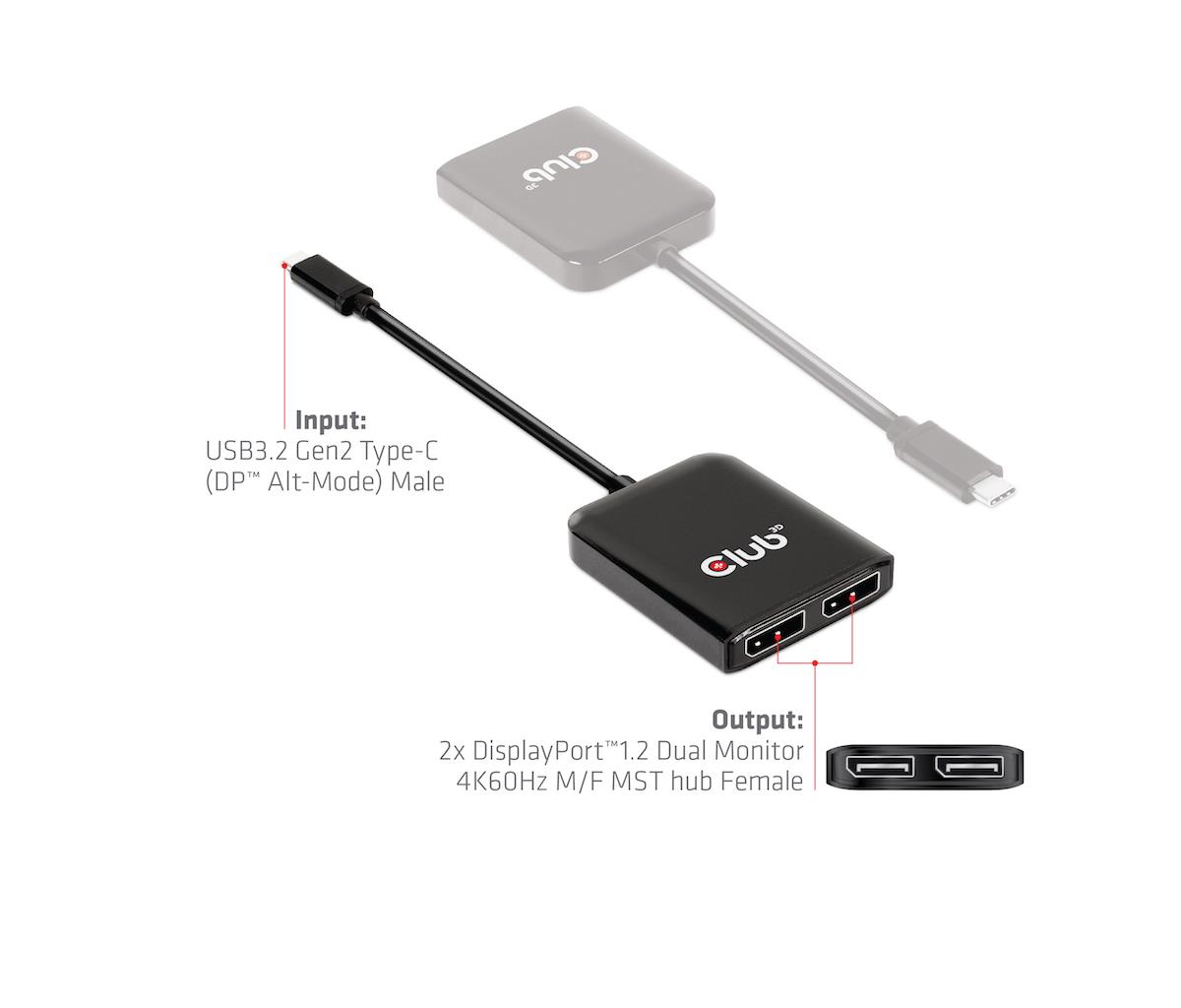

| Aansluiting 1 | USB Type-C |
| Aansluiting 2 | 2 x DisplayPort |
| USB-versie | 3.2 Gen 2 (3.1 Gen 2) |
| Aansluiting 1 type | Mannelijk |
| Aansluiting 2 type | Vrouwelijk |
| DisplayPort versie | 1.2 |
| Maximum resolutie | 4096 x 2160 Pixels |
| Ondersteunde grafische resoluties | 3840 x 2160, 4096 x 2160 |
| Ondersteunde video-modi | 2160p |
| Maximale refresh snelheid | 120 Hz |
| Kleur van het product | Zwart |
| Packaging composition | |
| Gewicht van plastic verpakking | 5 g |
| Gewicht papier-/kartonverpakking | 20 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |

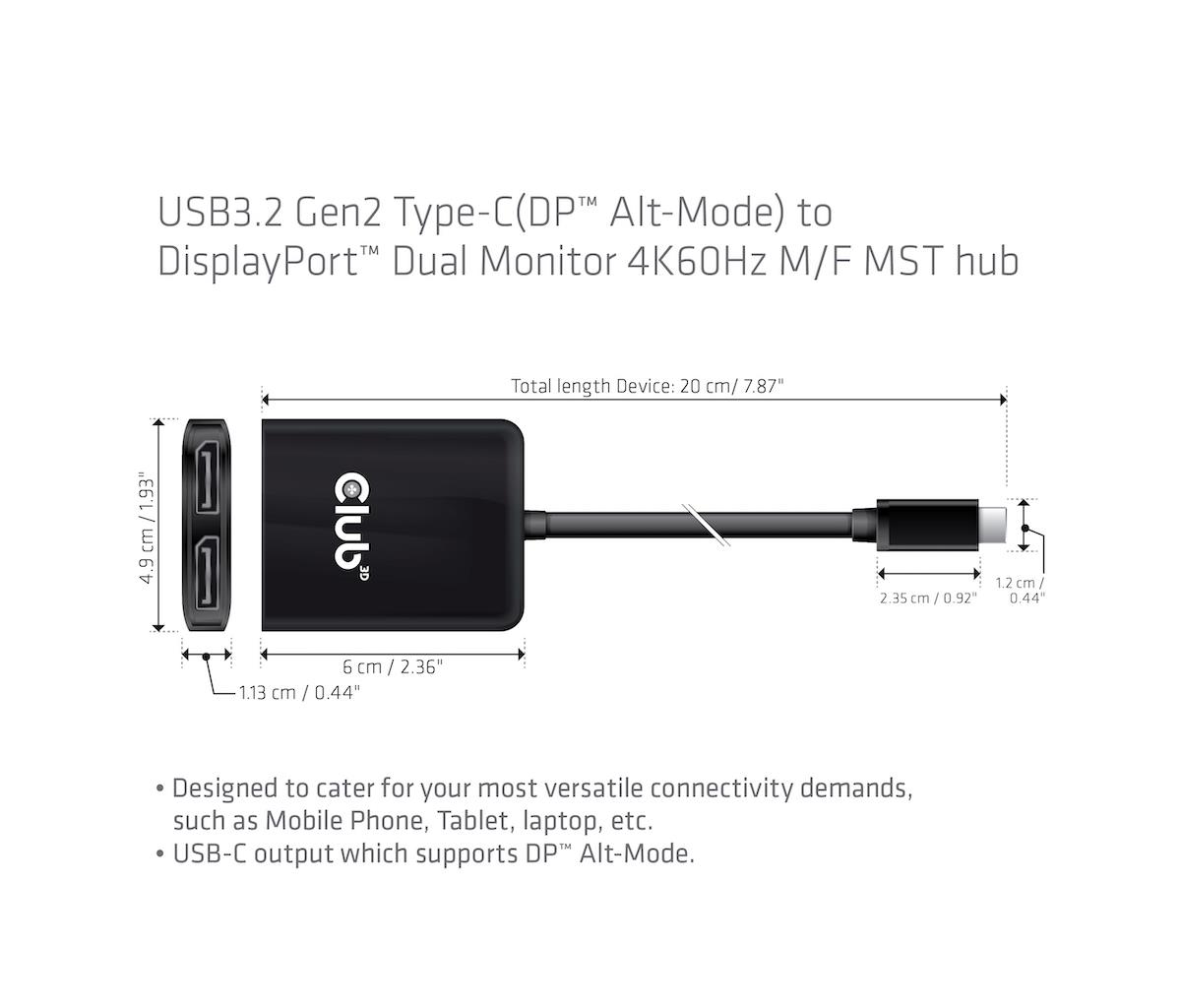

| Gewicht en omvang | |
| Gewicht | 50 g |
| Breedte | 60 mm |
| Diepte | 49 mm |
| Hoogte | 11,3 mm |
| Verpakking | |
| Breedte verpakking | 60 mm |
| Diepte verpakking | 35 mm |
| Hoogte verpakking | 240 mm |
| Gewicht verpakking | 83 g |
| Type verpakking | Hangende doos |
| Inhoud van de verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 8473 3020 |
| Warranty | |
| Base Warranty | Non Non |
