DisplayPort 1.1a Male To Vga Female Active Adapter Black
ITCurry #: M4192830 | Article #: CAC-2013-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

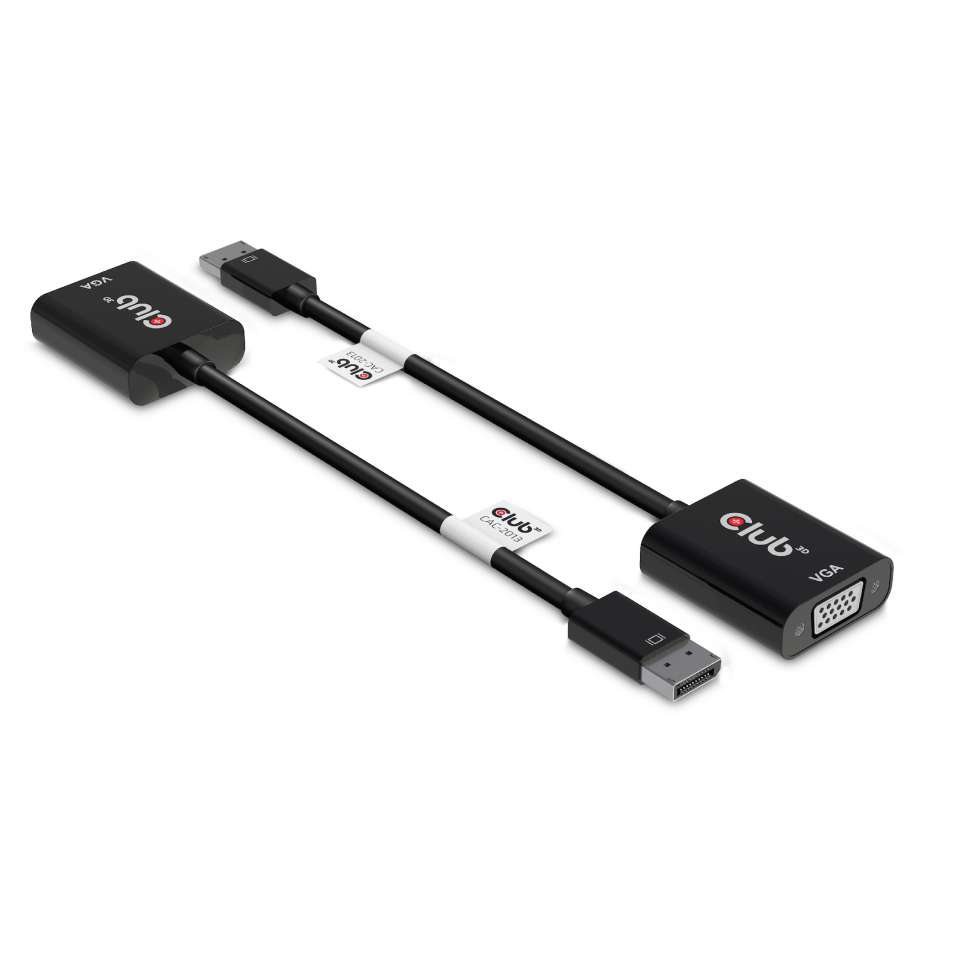

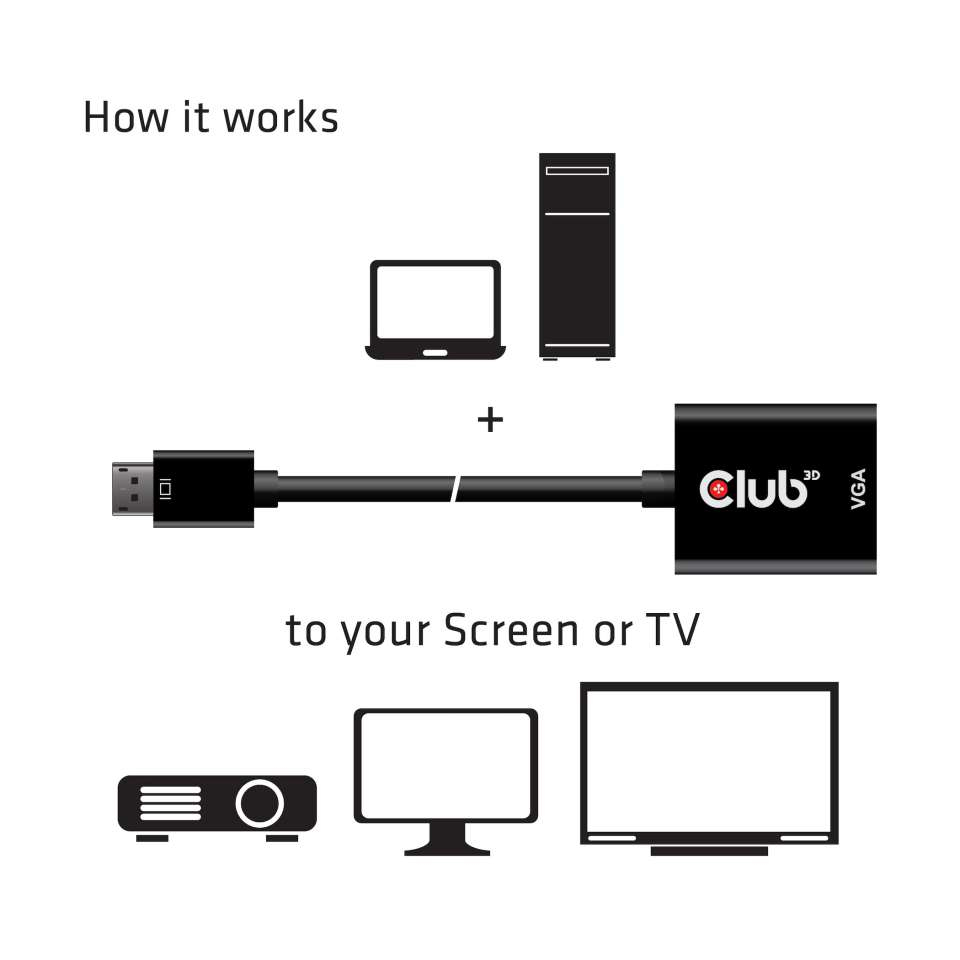

The Club 3D CAC-2013 is an active DisplayPort™ to VGA signal converter. It enables you to connect your analog VGA Televisions, Monitors or Projectors to your Desktop or Laptop with DisplayPort™ output. The adapter offers hassle free plug and play functionality, so no Driver installation needed and it is powered by the DisplayPort™ output. The DisplayPort™ interface in the adapter consists of two main lanes for DP data, AUX channel, HPD signal and power. The VGA output is compliant to VSIS standard and supports up to WUXGA RB timings. Supports resolutions up to WUXGA 1920x1200p @ 60Hz.The adapter works with AMD, Nvidia and Intel Graphic Solutions. Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at support@club-3d.com and it will be our pleasure to assist you.
| Kenmerken | |
| Connector 1 vormfactor | Recht |
| Connector 2 vormfactor | Recht |
| Snoerlengte | 0,228 m |
| Aansluiting 1 | Displayport |
| Aansluiting 2 | VGA |
| Aansluiting 1 type | Mannelijk |
| Aansluiting 2 type | Vrouwelijk |
| DisplayPort versie | 1.1 |
| Maximum resolutie | 1920 x 1200 Pixels |
| Ondersteunde grafische resoluties | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Overdrachtssnelheid | 5,4 Gbit/s |
| Kleur van het product | Zwart |
| Soort kabel | Ronde kabel |
| Plug and play | Ja |
| Type converter | Actieve video-omzetter |
| Land van herkomst | China |
| Ondersteunt Windows | Windows 10, Windows 8.1 |
| Certificaten | |
| Certificaten van naleving | CE, Federal Communications Commission (FCC), RoHS |
| Packaging composition | |
| Gewicht van plastic verpakking | 9 g |
| Gewicht en omvang | |

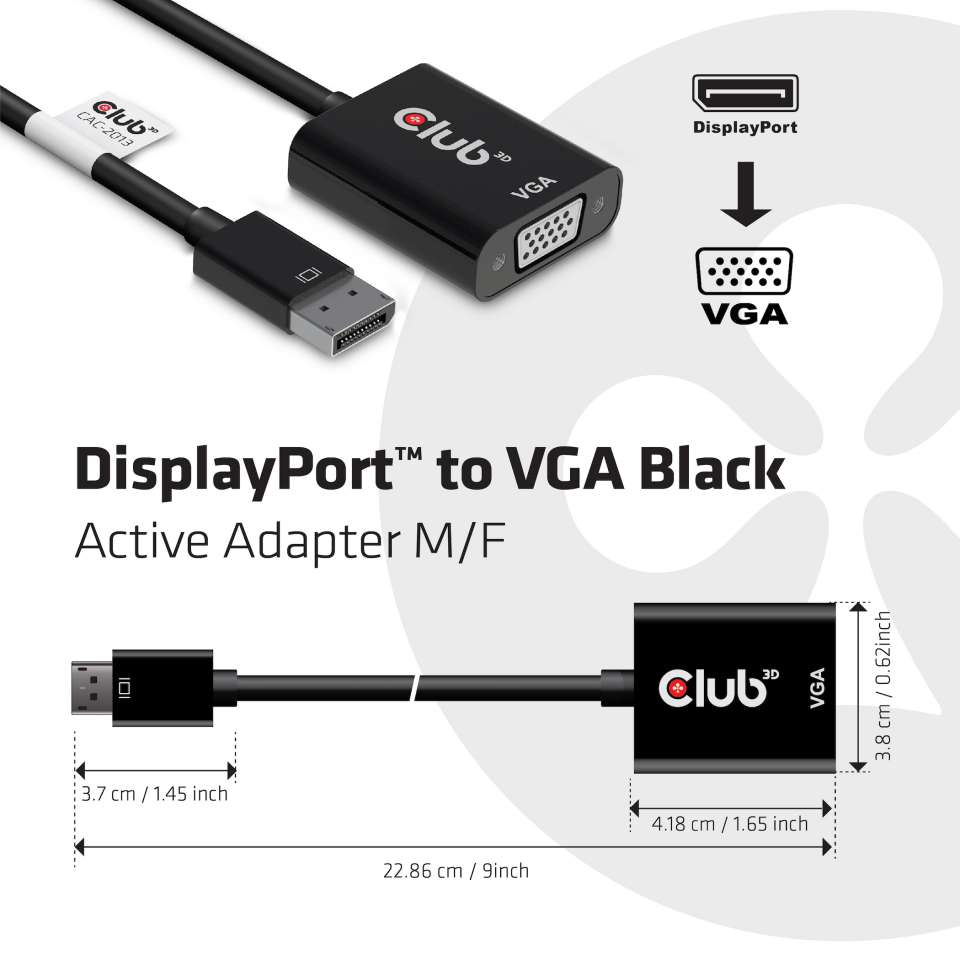

| Afmetingen 1 connector (BxDxH) | 37 x 20 x 10 mm |
| Afmetingen 2 connector (BxDxH) | 41,8 x 38 x 15,7 mm |
| Gewicht | 26 g |
| Verpakking | |
| Breedte verpakking | 215 mm |
| Diepte verpakking | 150 mm |
| Hoogte verpakking | 18 mm |
| Gewicht verpakking | 35 g |
| Type verpakking | Polybag |
| Inhoud van de verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 8544 4290 |
| Warranty | |
| Base Warranty | Non Non |
