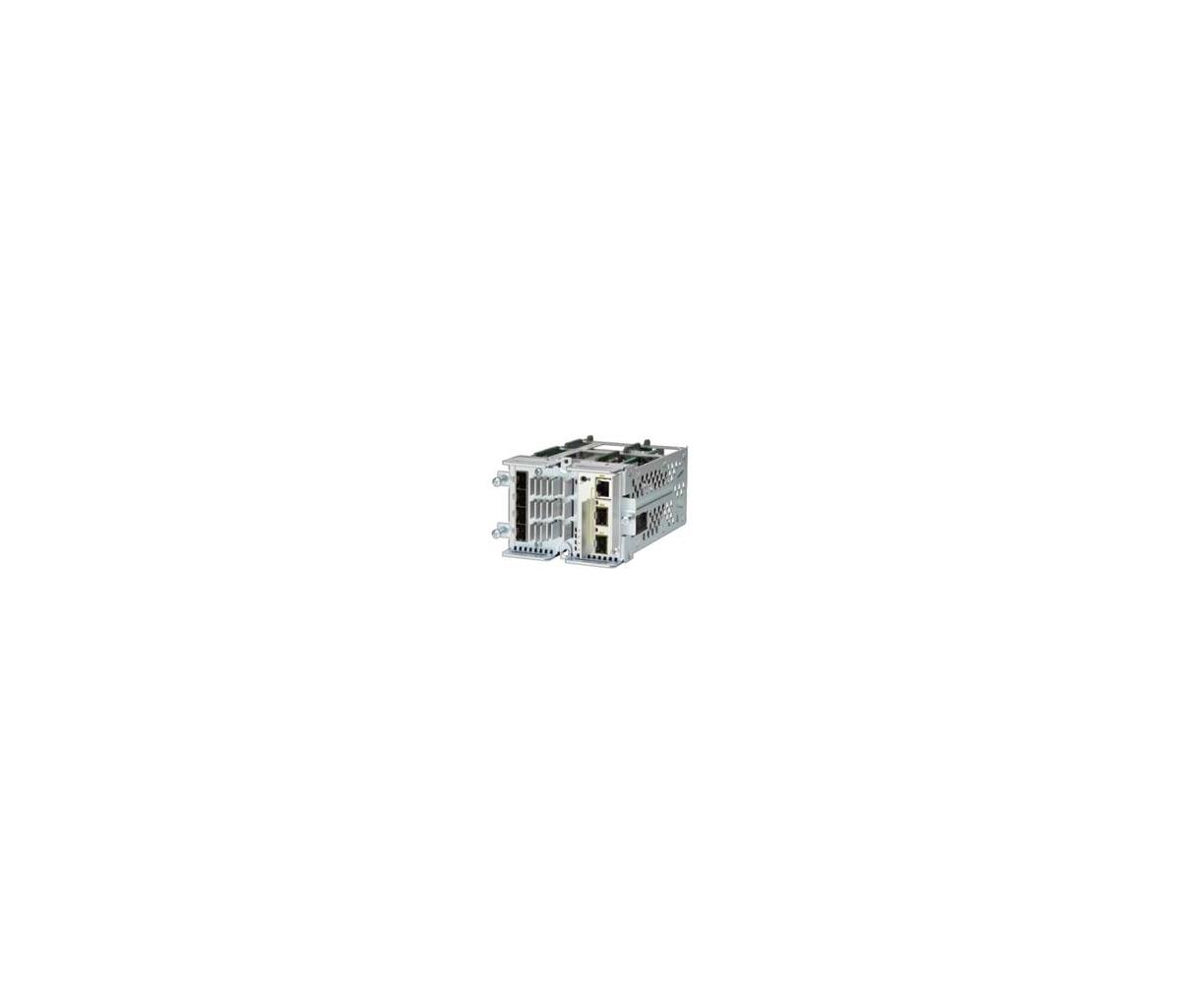

The Cisco Ethernet Switch Module (CGR 2010 ESM) greatly expands the Cisco 2010 Connected Grid Router’s capabilities by integrating industry-leading Layer 2 and Layer 3 (optional) switching with feature sets comparable to those found in the Cisco 2520 Connected Grid Switches. The new Cisco Ethernet Switch Module along with the Cisco 2010 Connected Grid Router (CGR 2010) are designed specifically for use in connected energy applications such as grid automation, distributed generation, integrated renewable energy, trackside substations, and water, oil, and gas applications. The CGR 2010 ESM uses Cisco IOS® Software, which is the operating system powering millions of Cisco switches worldwide, and provides the benefits of improved security, network resiliency and reliability, and scalability.
Primary CGR 2010 ESM features:
- Rugged industrial design and substation compliance: IEC-61850-3 and IEEE 1613 for utility substation environments
- Tools for easy deployment, management, and replacement
- Extensive instrumentation and remote diagnostic capability
- Advanced quality of service (QoS) capabilities to support mission-critical substation applications such as Supervisory Control and Data Acquisition (SCADA) and IEC 61850 Generic Object Oriented Substation Events (GOOSE) messaging
- Comprehensive network security features based on open standards
Rugged Ethernet switch with 4 Fast Ethernet (FE) SFP ports, one dual-purpose Gigabit Ethernet uplink, and one Gigabit Ethernet fiber SFP port. The Layer 2 LAN Base image is included.
| Netwerk | |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN, data-overdrachtsnelheden | 10,100 Mbit/s |
| Koperen ethernetbekabelingstechnologie | 10BASE-T, 100BASE-TX |
| Full duplex | Ja |
| Netwerkstandaard | IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3z |
| Optische vezel | |
| Vezel-optische connector | SFP |
| Data-uitwisseling | |
| MAC-adrestabel | 4000 entries |
| Overdrachtssnelheid | 1 Gbit/s |
| Verzending snelheid | 4,76 Mpps |
| Bandbreedte | 6,2 Gbit/s |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 4 |
| Aantal moduleslots SPF | 1 |
| Aantal Combo SFP-poorten | 1 |
| Prestatie | |
| Quality of Service (QoS) | Ja |
| Beheerplatform | SNMP, MIB |
| Access Control List (ACL) | Ja |
| Ondersteunde beveiligingsalgoritmen | SNMP |
| Compatibiliteit | Cisco 2000 |
| Energie | |
| Stroomverbruik (typisch) | 9 W |
| Power over Ethernet (PoE) | Nee |
| Certificaten | |
| Veiligheid | UL 60950-1, CSA 60950-1, EN 60950-1, IEC 60950-1 |
| Elektromagnetische compatibiliteit | IEC61000-4-2 [Criteria A-Class 2] - On optical interfaces, IEC61000-4-3/ENV50204 [Criteria A], IEC61000-4-4 [Criteria A/Criteria B], IEC61000-4-5 [Criteria B], IEC61000-4-6 [Criteria A] |
| Gewicht en omvang | |
| Afmetingen (B x D x H) | 101,6 x 198 x 76,2 mm |
| Gewicht | 950 g |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
