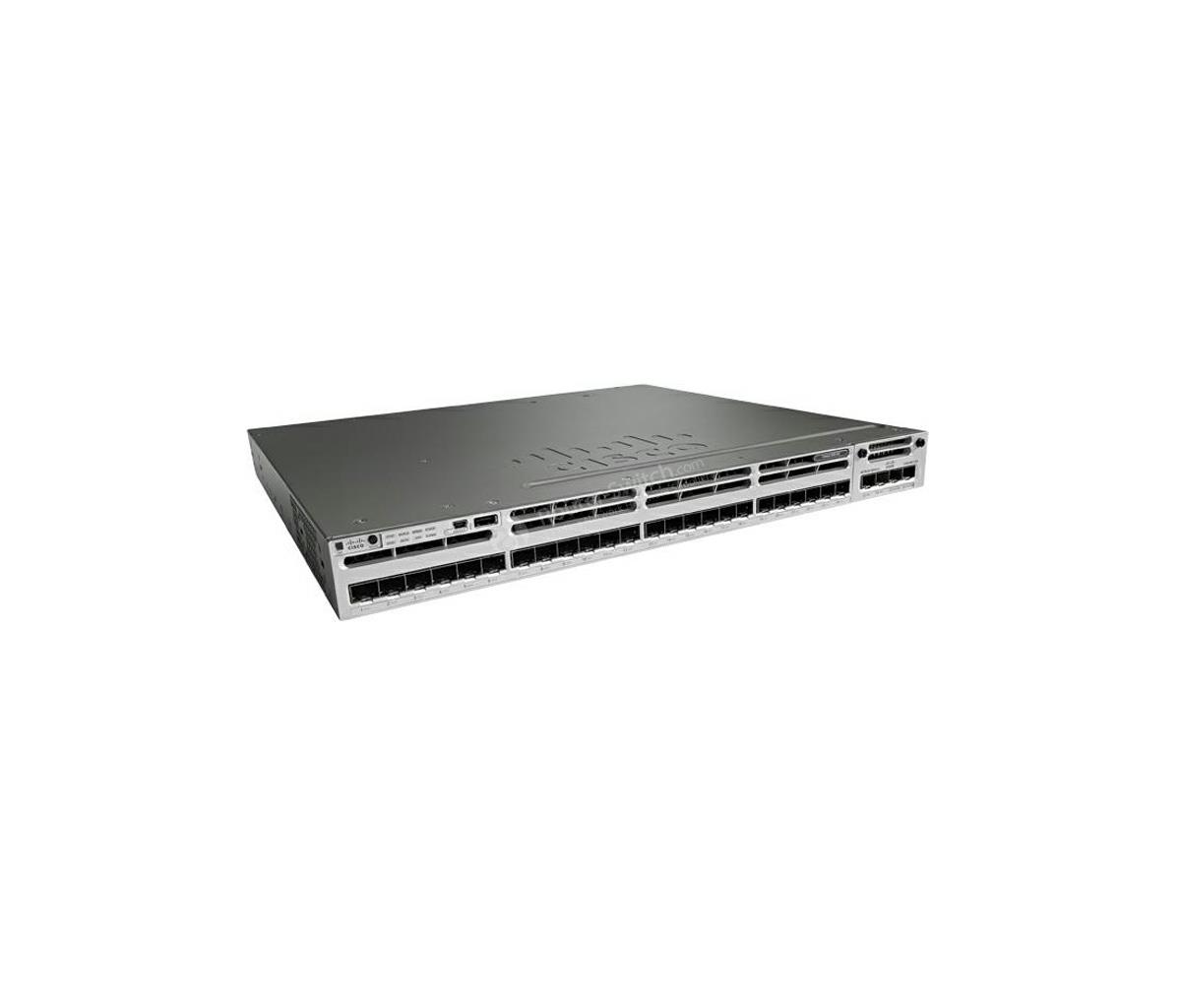

Catalyst 3850 24p Ge Sfp Ip Base - Refurb
ITCurry #: 0918AP09 | Article #: WS-C3850-24S-S-RF-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The Cisco®Catalyst® 3850 Series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Cisco Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L3 |
| Quality of Service (QoS) | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 24 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal moduleslots SPF | 24 |
| Vezel-optische connector | SFP |
| Netstekker | AC-in-aansluiting |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Nee |
| IP routing | Ja |
| Routing entries | 24000 |
| Verbindingsaggregatie | Ja |
| Rate limiting | Ja |
| VLAN=ondersteuning | Ja |
| Aantal VLANs | 4000 |
| Data-uitwisseling | |
| Switchingcapaciteit | 92 Gbit/s |
| MAC-adrestabel | 32000 entries |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 9198 |
| Beveiliging | |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| Ondersteunde beveiligingsalgoritmen | 802.1x RADIUS |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Protocollen | |
| Beheerprotocollen | UL 60950-1, CAN/CSA-C22.2, EN 60950-1, IEC 60950-1, GOST, NOM |
| Wissel protocols | SNMP v1, SNMP v2c, SNMP v3 |
| Design | |
| Rack-montage | Ja |
| Stapelbaar | Ja |
| Vormfactor | 1U |
| Kleur van het product | Zwart, Grijs |
| LED-indicatoren | Ja |
| Elektromagnetische compatibiliteit | 47CFR, AS/NZS CISPR22 2, CISPR22, EN55022, ICES003, EN61000-3-2, KCC, EN55024, KN24 |
| Prestatie | |
| Type geheugen | DRAM |
| Intern geheugen | 4096 MB |
| Flash memory | 2048 MB |
| Energie | |
| Vermogenstoevoer inclusief | Ja |
| Redundante voeding | Ja |
| Aantal voedingen | 1 |
| AC-ingangsspanning | 120 - 230 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Stroomverbruik (typisch) | 350 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -5 - 45 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Gewicht en omvang | |
| Breedte | 445 mm |
| Diepte | 450 mm |
| Hoogte | 45 mm |
| Gewicht | 7,03 kg |
| Inhoud van de verpakking | |
| Meegeleverde kabels | AC |
| Gebruiksaanwijzing | Ja |
| Gebruikershandleiding | Ja |
| Certificaten | |
| Certificering | FCC, CE, CFR 47, EN 55022, EN 55024, AS/NZS, CISPR22:2004, EN55022, VCCI, KCC, ANATEL, CCC, GOST |
| Warranty | |
| Base Warranty | Non Non |
