Product Informatie

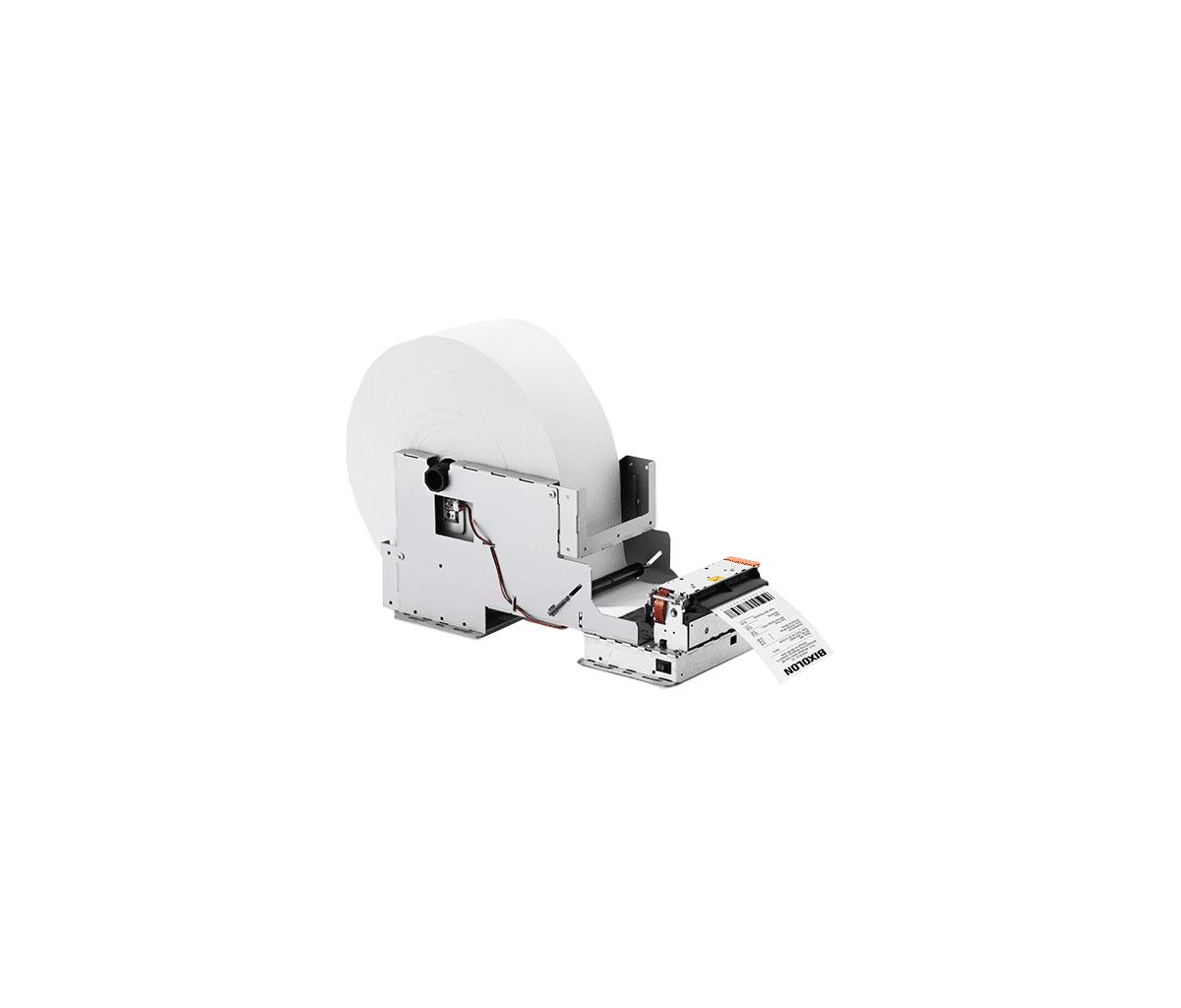

3-inch Kiosk Printer mechanism with large roll diameter
A compact, flexible and highly reliable 3-inch (up to 83mm) open frame kiosk printing mechanism. Designed for standalone self-service kiosk installations, the BK3-32 direct thermal printer operates at print speeds of up to 250mm per second with 203dpi resolution to produce high quality text, graphics and barcodes. Presenting a larger paper roll capacity than traditional packaged kiosk printers, the BK3-32 supports a roll diameter of up to 250mm for a wide range of printing applications from busy hospitality settings to unattended booths. The kiosk printer also provides a paper saving mode through BIXOLON’s simple Unified Utility which reduces paper wastage resulting in paper savings up to 25% and decreased CO2 emissions.
With compact, lightweight design the BK3-32 kiosk printer supports multiple mounting options to provide design flexibility for kiosk builders. With a seamless paper feed with additional roller-tension, multi-position near end sensor for easy monitoring of the paper and an presenter to reduce paper jamming and vandalism. The kiosk printing mechanism also supports USB V2.0 and Serial (9 pin male or 5 pin connector) with a DC Jack or 2 pin power connector connectivity as standard.
Supported by BIXOLON’s wide range of drivers, utilities and SDKs, the BK3-32 is compatible with Windows® major OS system and OPOS-based systems from Android™, Windows® and Linux™ for smart based devices. Supporting by an industry leading 2 year warranty as standard.
| Printsnelheid | |
| Maximale resolutie | 203 x 203 DPI |
| Printsnelheid (metrisch) | 250 mm/sec |
| Karakter grootte | 24 x 24 mm |
| Printtechnologie | Direct thermisch |
| Soort | POS-printer |
| Papier | |
| Type papierinvoer | Easy Paper Loading |
| Maximum roll diameter | 12 cm |
| Ondersteunde papierwijdte | 80/58 mm |
| Maximale print breedte | 7,2 cm |
| Poorten & interfaces | |
| USB-poort | Ja |
| Aantal USB 2.0-poorten | 1 |
| Seri‰le interface | Ja |
| Connectiviteitstechnologie | Bedraad |
| Netwerk | |
| Ethernet LAN | Ja |
| Kenmerken | |
| Ingebouwde streepjescodes | 1D, 2D, Code 93, Code-128 Codabar Library, Code-39 Library, Datamatrix, EAN13, EAN8, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Gestapeld Omnidirectioneel, GS1 DataBar Truncated, GS1-128, ITF, PDF417, QR Code, UPC-A, UPC-E |
| Intern geheugen | 0,032 MB |
| Autocutter duurzaamheid | 1,5 miljoen delen |
| Levensduur van printkop | 100 km |
| Montagepositie | Verticaal |
| Ophangsysteem voor aan de muur | Ja |
| Ontvangstbuffer | 64 KB |
| Design | |
| Kleur van het product | Roestvrijstaal |
| Energie | |
| Type stroombron | DC |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -20 - 60 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 95 procent |
| Luchtvochtigheid bij opslag | 10 - 95 procent |
| Overige specificaties | |
| Buffergrootte | 64 KB |
| Warranty | |
| Base Warranty | Non Non |
