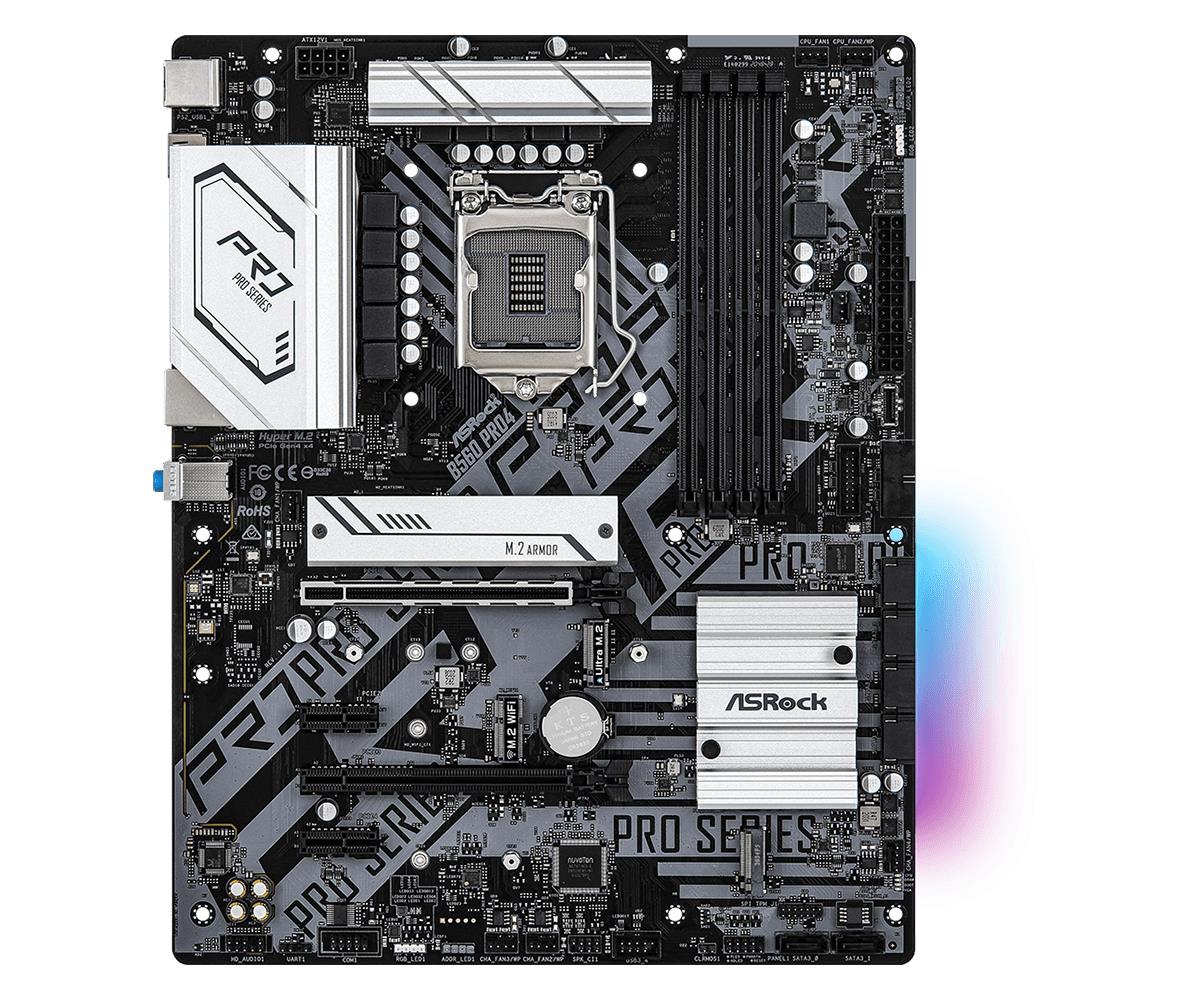

Motherboard B560 Pro4 LGA1200 Intel B560 4 X Ddr4 USB 3.2 SATA 3 7.1ch Hd Audio ATX
ITCurry #: M5253073 | Article #: 90-MXBF10-A0UAYZ-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
A good-looking and powerful Motherboard
8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
PCIe 4.0 High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
This M.2 Heatsink is default equipped with M.2_1 socket to pair with Intel® 11th Gen processor. You may use it for M.2_2 if you’re using the Intel® 10th Gen processor to get the best heat dissipation.
RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
? Extra anchor points
? Stronger latch
? Ensure signal stability
? Make sure heavy graphics cards to be well-installed.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
Post Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
| Processor | |
| Processorfabrikant | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatibele processors | Intel© Celeron©, Intel© CoreT i3, Intel© CoreT i5, Intel© CoreT i7, Intel© CoreT i9, Intel© Pentium© |
| Max. aantal SMP-processoren | 1 |
| Geheugen | |
| Ondersteunde geheugen types | DDR4-SDRAM |
| Aantal geheugenslots | 4 |
| Geheugen slots type | DIMM |
| Geheugen kanaal | Dubbelkanaals |
| Non-ECC | Ja |
| Supported memory clock speeds | 4600,4800 MHz |
| Maximum intern geheugen | 128 GB |
| Niet gebufferd geheugen | Ja |
| Opslag-controllers | |
| Ondersteunde opslagstationinterfaces | M.2, SATA III |
| Interne aansluitingen | |
| USB 2.0 aansluitingen | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 2 |
| USB 3.2-connectoren (3.1 Gen 2) | 1 |
| Aantal SATA III connectors | 6 |
| Aansluiting voor audiopaneel aan voorzijde | Ja |
| ATX Power connector (24-pin) | Ja |
| Aansluiting voor CPU koeler | Ja |
| COM aansluitingen | 1 |
| RGB LED-aansluitrail | Ja |
| Aansluitingen achterzijde | |
| Aantal USB 2.0-poorten | 2 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 4 |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| PS/2 poort(en) | 1 |
| Aantal HDMI-poorten | 1 |
| Aantal DisplayPorts | 1 |
| DisplayPort versie | 1.4 |
| Netwerk | |
| Ethernet LAN | Ja |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel© I219-V |
| Wake-on-LAN | Ja |
| Wifi | Nee |
| Kenmerken | |
| Chipset moederbord | Intel B560 |
| Audio-uitgangskanalen | 7.1 kanalen |
| Component voor | PC |
| Moederbord form factor | ATX |
| Moederbord chipset familie | Intel |
| Uitbreidingsmodules | |
| PCI Express x1 slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) sleuven | 1 |
| Aantal M.2 (M) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| ACPI version | 6.0 |
| Systeem Management BIOS (SMBIOS) versie | 2.7 |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 84733020 |
| Gewicht en omvang | |
| Breedte | 305 mm |
| Diepte | 244 mm |
| Hoogte | 70 mm |
| Inhoud van de verpakking | |
| Meegeleverde kabels | SATA |
| Meegeleverde drivers | Ja |
| Overige specificaties | |
| Gewicht | 1 kg |
| Warranty | |
| Base Warranty | Non Non |
