Modular Rackmounted It Power Distribution Unit 72kw 200a 208v
ITCurry #: 0280A808 | Article #: PDPM72F-5U-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

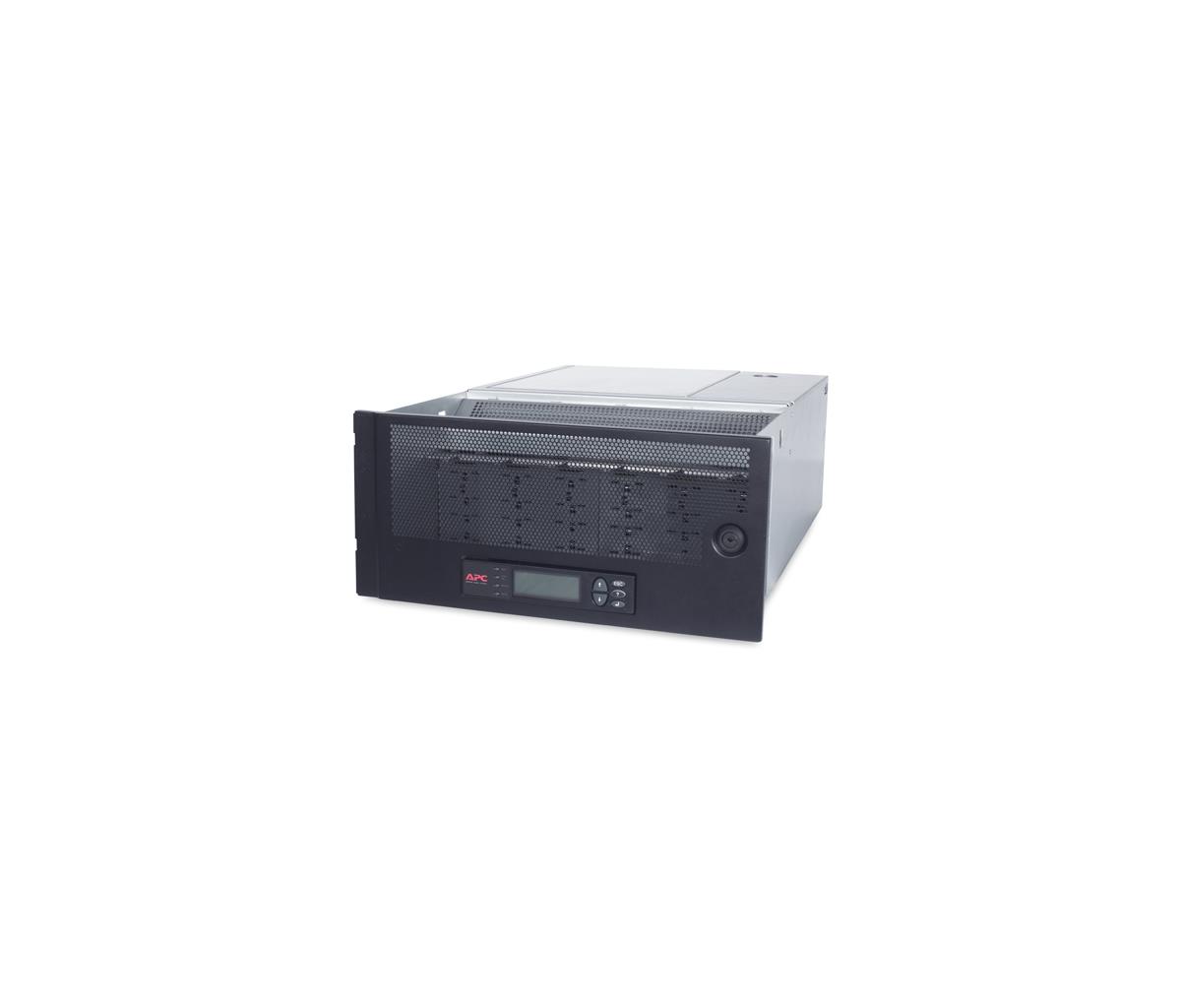

APC Modular Rack Distribution Panel, 72kW, 200A, 208V, 18 Pole, 5U
APC Modular Power Distribution , Input: 208V 3PH , Input Connections: Hard Wire 5-wire (3PH+N+G)
UL-listed Touch-safe backplane
Adding Power Distribution Modules requires no hot work; one trained user can safely add new modules without removing power to the existing PDU load
Network management capability
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet.
Built-in Web/SNMP management
Full-featured management via a Web browser as well as comprehensive management from a Network Management System.
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Information Displays
Indicates the status of the AC sources powering the units, as well as indicates which source is set as the primary source and which source is currently supplying power to the load. This provides a visual depiction of the power flow from the input to the load. This allows the user to quickly glance at the power flow and status of the input sources without connecting to the unit.
Current Monitoring
Monitors the aggregate current draw per power distribution unit.
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities.
Local and web-based monitoring
Status available to customers both in the data center and remotely
Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
Multiple distribution options
Superior design flexibility enables a wide range of customer requirements to be addressed.
UL-listed Touch-safe backplane
Adding Power Distribution Modules requires no hot work; one trained user can safely add new modules without removing power to the existing PDU load
Multiple distribution options
Superior design flexibility enables a wide range of customer requirements to be addressed.
Toolless installation of breakers
Install factory-assembled Power Distribution Modules in under ten minutes - no tools are required
Safety
Enhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnection
Current Monitoring
Monitors the aggregate current draw per power distribution unit.
Network management capability
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet.
Ease of system expansion
Power Distribution Modules provide an option to expand power distribution capability as power demands increase.
System mobility
PDU equipment can easily be relocated to accommodate a changing data center environment.
Smallest footprint
Minimizes your real estate expenses
Modular design
Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.
| Design | |
| PDU types | Gecontroleerd |
| Rackcapaciteit | 5U |
| Kleur van het product | Zwart |
| Poorten & interfaces | |
| Input-connectietype | 5-wire(3PH+N+G) |
| Kenmerken | |
| LED-indicatoren | Ja |
| Beheerfuncties | |
| Beheerplatform | Web/SNMP |
| Energie | |
| Nominale input voltage | 208 V |
| AC-ingangsfrequentie | 60 Hz |
| Stroom (max.) | 200 A |
| Netspanning, in bedrijf | 208 V |
| Laad-capaciteit | 72 VA |
| Certificaten | |
| Certificering | UL |
| Gewicht en omvang | |
| Breedte | 483 mm |
| Diepte | 711 mm |
| Hoogte | 229 mm |
| Gewicht | 30,1 kg |
| Verpakking | |
| Gewicht verpakking | 34 kg |
| Breedte verpakking | 610 mm |
| Diepte verpakking | 889 mm |
| Hoogte verpakking | 406 mm |
| Warranty | |
| Base Warranty | Non Non |
