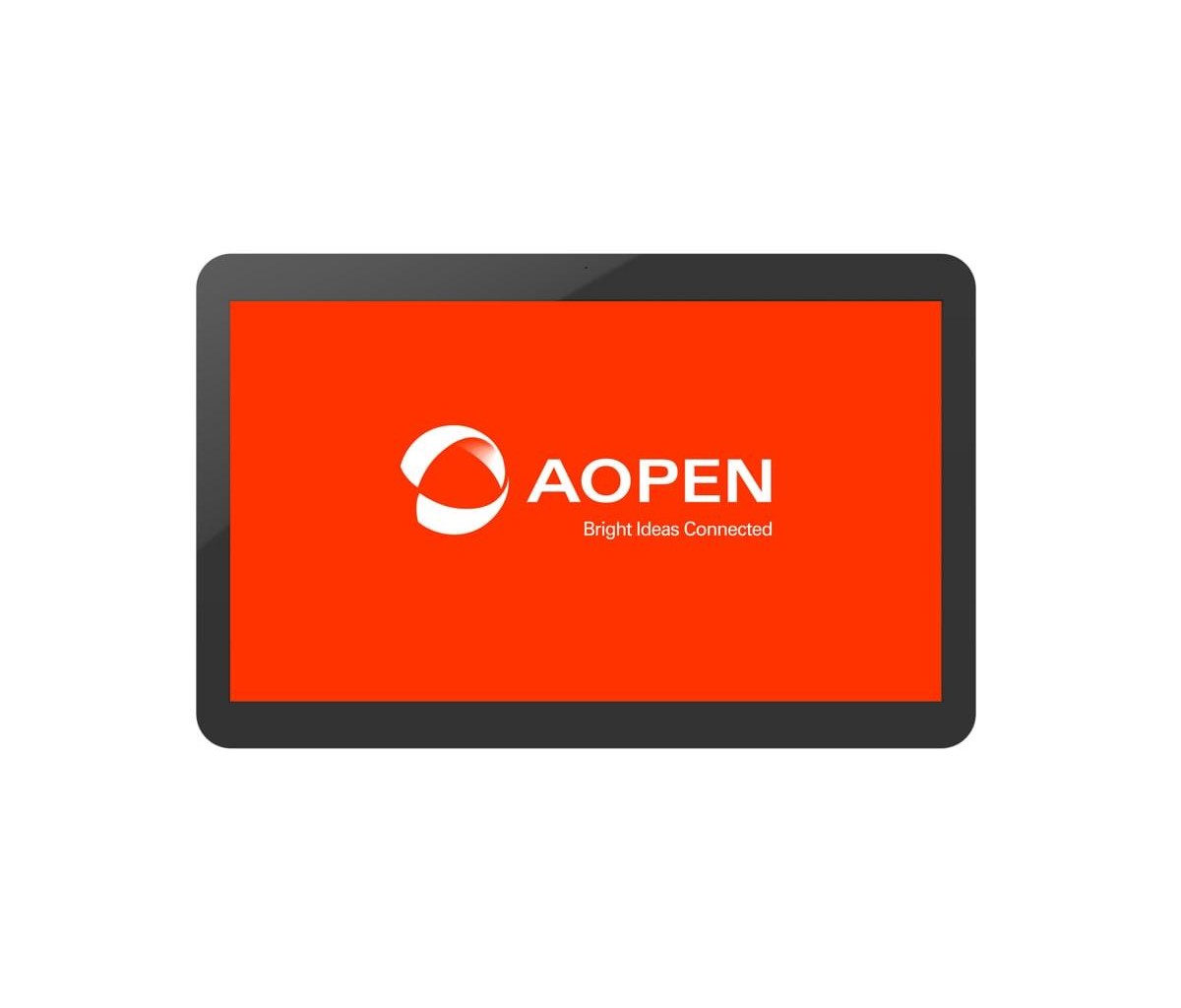

All-in-one Touch Display Etile 15m-fb 15.6in
ITCurry #: 91512961 | Article #: 91.WT300.5B20-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
An ultra-thin and exceptional 15.6” multi-touch display with an IP65 dust- and waterproof grade.
Tamper proof design
The complete range of all-in-one Memorytouch displays from AOPEN are designed for commercial use. All devices have a tamperproof design. A hidden keypad, concealed I/O ports and a built-in cable management make sure the customer cannot mess with this solution.
Intel Core-I platform
The eTILE M-FW series is based on the Intel Core-I platform. More specifically: on the 5th generation platform technology. This computing device is available in i3 and i5 and therefore in available in different SKU’s.
IP65 dust- and waterproof
The front panel of all AOPEN all-in-one touch solutions is dust- and waterproof. With the IP65 grade, this device is safe from water and dust. Because of the edge-to-edge glass, cleaning is easy and customers with food and drinks are no threat.
Wide viewing angle
This screen is both used for portrait and landscape orientation both, without losing quality in viewing angle. With this feature flexibility in use of the device is guaranteed. This device can be integrated into different kiosks or is used as a stand-alone device.
Auto power and recovery
Automatically switch your device on by APAR. Configure your requirements for the unit after power is turned off. You can decide to automatically turn on a device when power comes back on, or you van program the APAR to go back to the last known state before the power was turned off.
| Beeldscherm | |
| Beeldschermdiagonaal | 39,6 cm (15.6") |
| Resolutie | 1920 x 1080 Pixels |
| Touchscreen | Ja |
| Display-type | LED |
| Helderheid | 400 cd/mý |
| Kijkhoek, horizontaal | 178ø |
| Kijkhoek, verticaal | 178ø |
| Responstijd | 25 ms |
| Beeldverhouding | 16:9 |
| Processor | |
| Frequentie van processor | 1,83 GHz |
| Processorfabrikant | Intel |
| Processorfamilie | Intel© Celeron© |
| Processormodel | N2930 |
| Aantal processorkernen | 4 |
| Processor cache | 2 MB |
| Processor aantal threads | 4 |
| Geheugen | |
| Intern geheugen | 4 GB |
| Intern geheugentype | DDR3L-SDRAM |
| Maximum intern geheugen | 16 GB |
| Aantal geheugenslots | 2 |
| Geheugen slots type | SO-DIMM |
| Opslagmedia | |
| Totale opslagcapaciteit | 32 GB |
| Opslagmedia-type | SSD |
| Opslagmedia | SSD |
| Aantal storage drives ondersteund | 2 |
| SSD capaciteit | 32 GB |
| SSD interfaces | M-SATA |
| Grafisch | |
| Grafische adapter, fabrikant | Intel |
| Grafische adapter | HD Graphics |
| Kenmerken | |
| Certificering | IP65 |
| Multimedia | |
| Audiosysteem | Realtek HD |
| Netwerk | |
| Ethernet LAN | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 4 |
| Aantal HDMI-poorten | 1 |
| Lijnuitgang | Ja |
| Microfoon, line-in ingang | Ja |
| Seri‰le poort(en) | 1 |
| Aansluiting voor netstroomadapter | Ja |
| Design | |
| Type behuizing | Alles-in-een |
| Kleur van het product | Zwart |
| Energie | |
| AC-ingangsspanning | 100 - 240 V |
| AC-adapter, uitgangsspanning | 19 V |
| AC-adapter, uitgangsstroom | 4,74 A |
| Netvoeding | 90 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -20 - 60 øC |
| Ergonomie | |
| Ophangsysteem voor aan de muur | Ja |
| Mean time between failures (MTBF) | 50000 uur |
| Gewicht en omvang | |
| Breedte | 390,5 mm |
| Diepte | 36,5 mm |
| Hoogte | 240 mm |
| Gewicht | 3,7 kg |
| Verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Warranty | |
| Base Warranty | Non Non |
