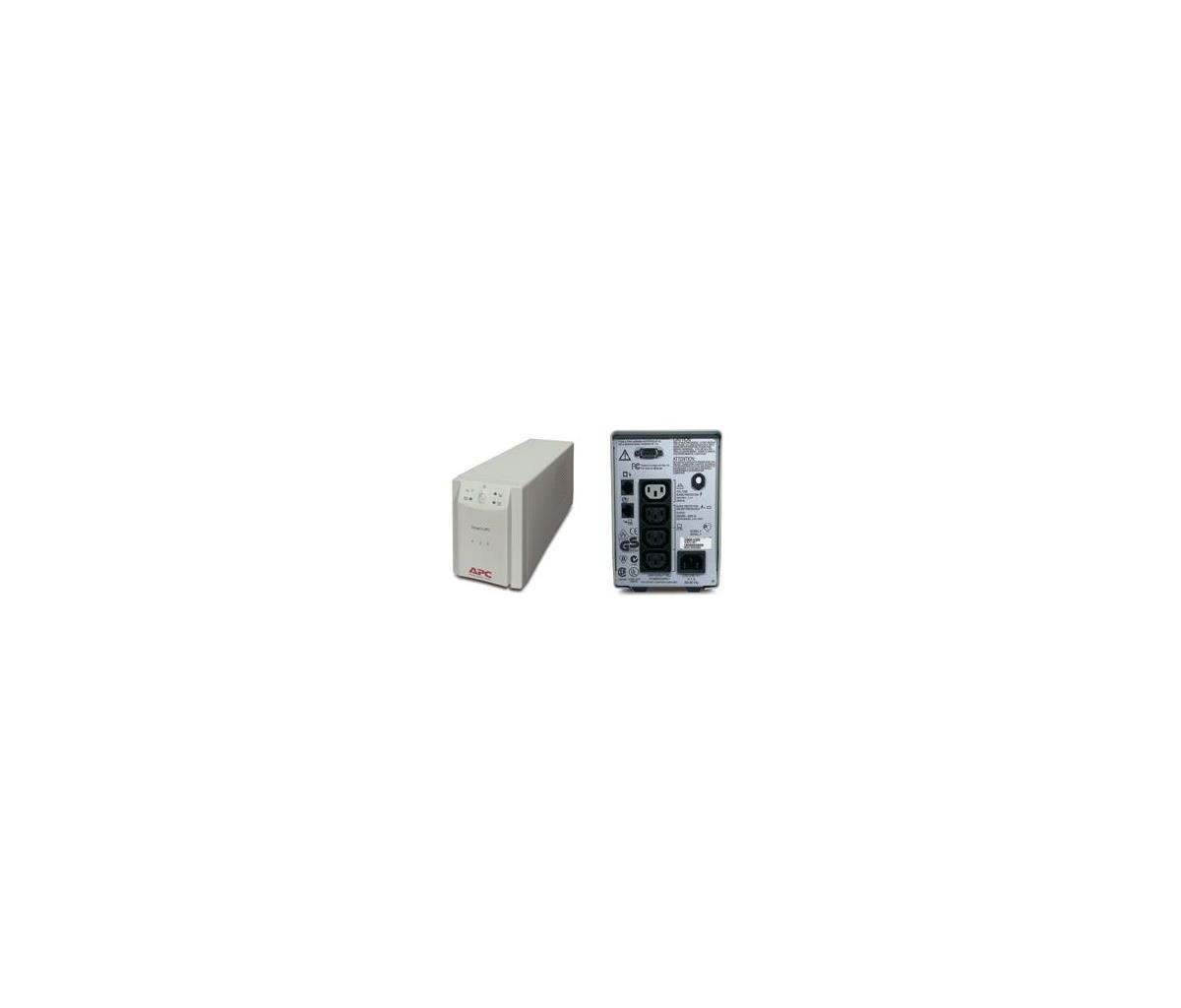

Smart UPS 620va 230v

ITCurry #: 02802219 | Article #: SU620INET
Notify
Flash Sale
Rechercher plus : UPS
Prix:
185,84 TVA Incluse TVA Exclue
Livraison dans le BeNeLux:
Plus de stock. Prière de nous contacter !
Envoyez-nous un courriel pour obtenir de l'aide
Caractéristiques phares
  • Ecran
    Mémoire
    Poids
    Processeur
    Disque dur
    SSD
    Ecran
    Résolution
    Connectivité
    Mémoire
    Boitier
    OS
    Ecran
    Type
    Vitesse Noir
    Vitesse Couleurs
    Modèle
    Vitesse
    Facteur de forme
    Interne / Externe
    Nombre de ports
    Uplink / Médias
    Montage
  • Voir tout

Bundles

TVA Incluse TVA Exclue
Plus de stock. Prière de nous contacter !
TVA Incluse TVA Exclue
Plus de stock. Prière de nous contacter !

TVA Incluse TVA Exclue
Plus de stock. Prière de nous contacter !

TVA Incluse TVA Exclue
Plus de stock. Prière de nous contacter !

Produits Similaires

Informations sur le produit

Features & Benefits
Availability
Power conditioning Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature−compensated battery charging Prolongs battery life by regulating the charge voltage according to actual battery temperature.
Intelligent Battery Management Provides higher availability through intelligent precision−charging that maximizes battery performance, life, and reliability.
Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power.
Automatic self−test Ensures early detection of potential problems by periodic testing of UPS components.
Boost and Trim Automatic Voltage Regulation (AVR) Preserves battery life and maximizes run time by correcting low and high voltage conditions without discharging the battery.
Cold−start capable Provides temporary battery power when the utility power is out.
Generator Compatible Ensures clean, uninterrupted power to protected equipment when generator power is used.
Manageability
SmartSlot Customize UPS capabilities with management cards.
Audible Alarms Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicators Quickly understand UPS status with indicators.
Network manageable Provides remote management of the UPS over the network.
Serial Connectivity Provides management of the UPS via a serial port.
Serviceability
Hot−swappable batteries Ensures clean, uninterrupted power to protected equipment throughout battery replacement.
Predictive failure notification Provides early−warning fault analysis ensuring proactive component replacement.
Resettable circuit breakers Enables quick recovery from UPS overload events.
Adaptability
Adjustable voltage−transfer points Saves battery power and helps extend battery life.
Adjustable voltage sensitivity Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications
Safety
Safety−agency approved Ensures product testing and approval to work safely with the connected loads and within the environment.

Technical Specifications

Output

  • Output power capacity : 620 VA
  • Output power capacity : 390 Watts
  • Max Configurable Power : 620 VA
  • Max Configurable Power : 390 Watts
  • Nominal output voltage : 230V
  • Output Connections :
    • (1) IEC 320 C13
    • (3) IEC 320 C13
    • (2) IEC Jumpers

Input

  • Nominal input voltage : 230V
  • Input frequency : 50/60 Hz +/− 3 Hz (auto sensing)
  • Input Connection Type : IEC−320−C14 inlet
  • Input voltage range for main operations : 160 − 286 V
  • Input voltage adjustable range for mains operation : 151 − 302 V

Batteries & Runtime

  • Battery type : Maintenance−free sealed Lead−Acid battery with suspended electrolyte : leakproof
  • Replacement battery cartridge : RBC4
  • RBC Quantity : 1
  • Typical backup time at half load : 15.7 minutes (195 Watts)
  • Typical backup time at full load : 5.5 minutes (390 Watts)
  • Runtime Chart : Smart−UPS

Communications & Management

  • Interface port : DB−9 RS−232
  • Control panel : LED status display with On Line : On Battery : Replace Battery and Overload indicators
  • Audible alarm : Alarm when on battery : distinctive low battery alarm : configurable delays

Surge Protection and Filtering

  • Surge energy rating : 320 Joules
  • Filtering : Full time multi−pole noise filtering : 0.7% IEEE surge let−through : zero clamping response time : meets UL 1449
  • Dataline protection : RJ45 10/100 Base−T Ethernet protection

Physical

  • Maximum height : 7 inches ( 17 cm )
  • Maximum width : 5 inches ( 12 cm )
  • Maximum depth : 15 inches ( 37 cm )
  • Net weight : 27 lbs. ( 12 kg )
  • Color : Beige

Environmental

  • Operating Environment : 0 − 40 °C ( 32 − 104 °F )
  • Operating Relative Humidity : 0 − 95 %
  • Operating Elevation : 0−10000 feet ( 0−3000 meters )
  • Storage Temperature : −15 − 45 °C ( 5 − 113 °F )
  • Storage Relative Humidity : 0 − 95 %
  • Storage Elevation : 0−50000 feet ( 0−15000 meters )
  • Online thermal dissipation : 70 BTU/hr
