Communications
& Management |
Interface
port |
USB |
Control
panel |
LED
status display with On Line : On Battery : Replace Battery and Overload
indicators |
Audible
alarm |
Alarm
when on battery : distinctive low battery alarm : configurable delays |
Output |
|
Output
power capacity |
1,000 VA |
Output
power capacity |
600 Watts |
Max
Configurable Power |
1,000 VA |
Max
Configurable Power |
600 Watts |
Nominal
output voltage |
230 V |

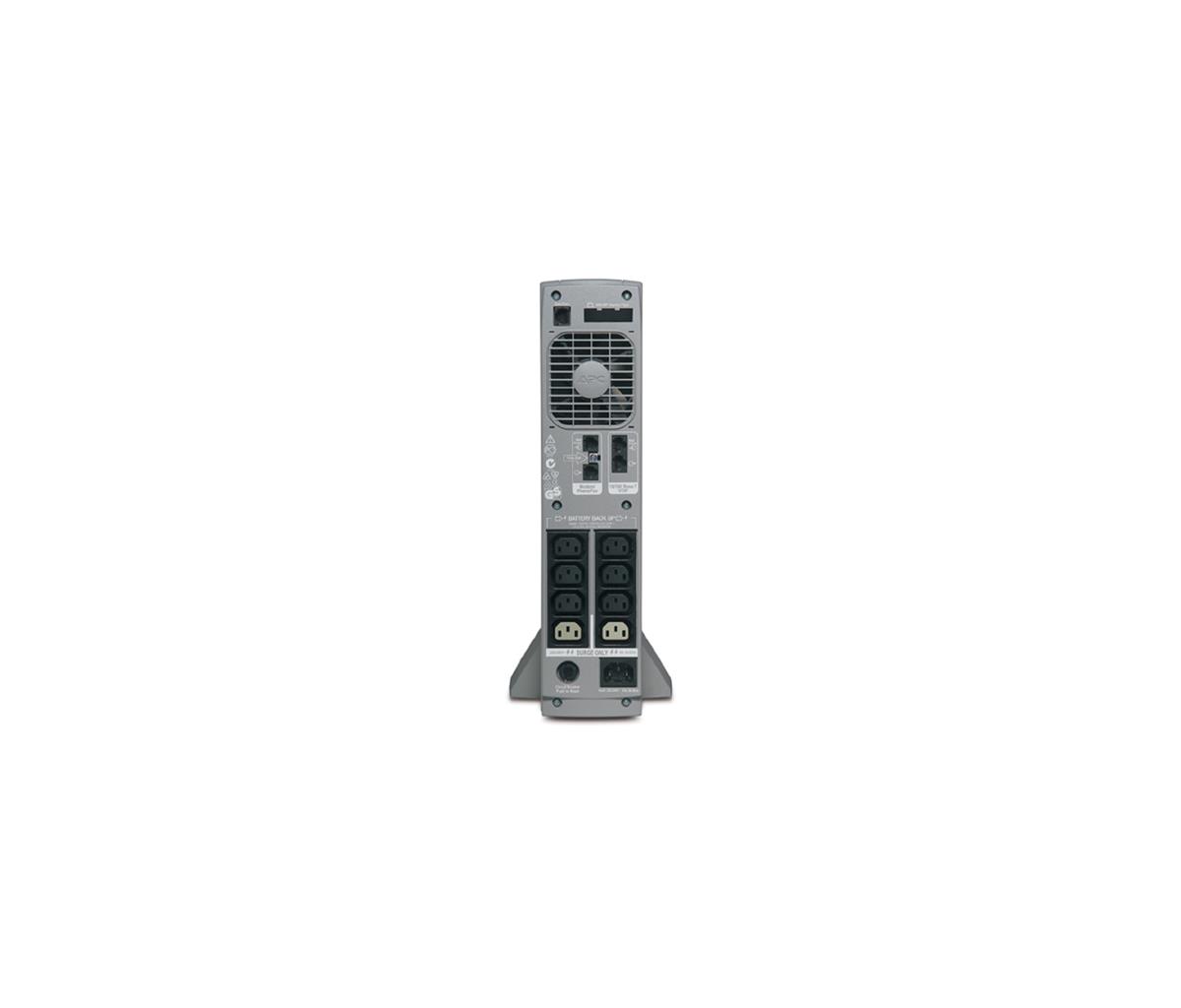

Output
Connections |
- (6)IEC 320 C13
- (2)IEC 320 C13 (Surge)
|
Input |
Nominal
input voltage |
230 V |
Input
frequency |
47-63 |
Input
Connection Type |
IEC-320
C14 |
Input
voltage range for main operations |
175 -
295 V |
Input
voltage adjustable range for main operations |
160 -
286 V |
Surge
Protection and Filtering |
Surge
energy rating |
180
joules |
Filtering |
Full
time multi-pole noise filtering : 5% IEEE surge let-through : zero
clamping response time : meets UL 1449 |
Dataline
protection |
RJ-11
Modem/Fax/DSL protection (two wire single line), RJ45 10/100 Base-T
Ethernet protection |
Runtime |
Typical
backup time
at half load |
16.6 minutes
(300 Watts) |
Typical
backup time
at full load |
5.9 minutes
(600 Watts) |
Runtime
Chart |
Back-UPS
RS |
Batteries |
|
Battery
type |
Maintenance-free
sealed Lead-Acid battery with suspended electrolyte : leakproof |
Replacement
battery cartridge |
(1)
RBC32 |
Physical |
Maximum
height dimensions |
14.60
inches ( 37.08 cm) |
Maximum
width dimensions |
3.40
inches ( 8.64 cm) |
Maximum
depth dimensions |
13.10
inches ( 33.27 cm) |
Net
weight |
23.35 lbs
( 10.61 kg) |
Color |
Beige |
UPC
Code |
731304193166 |
Environmental |
Operating
Environment |
0 - 40
›C (32 - 104›F) |
Operating
Relative Humidity |
0 -
95% |
Operating
Elevation |
0-10000 feet
(0-3000 m) |
Storage
Temperature |
-5 -
45 ›C (23 - 113›F) |
Storage
Relative Humidity |
0 -
95% Non-condensing |
Storage
Elevation |
0-50000
feet (0-15000 m) |
