Fast, Everyday Wi-Fi
300Mbps Wireless N USB VDSL/ADSL Modem Router
High-Speed VDSL Modem Router
The latest VDSL2 technology allows the TD-W9970 to deliver impressive VDSL broadband speeds of up to 100Mbps, which is almost 4 times faster than ADSL2+. The integrated DSL port supports all standard DSL connections* for compatibility with most ISPs. The TD-W9970 serves as a DSL modem and wireless router, combining two devices in one.
Wi-Fi Speed Up to 300 Mbps
With 300 Mbps wireless speeds on the 2.4 GHz band and 4 megabit LAN ports, the TD-W9970 is perfect for streaming in HD, online gaming and other bandwidth-intensive applications.

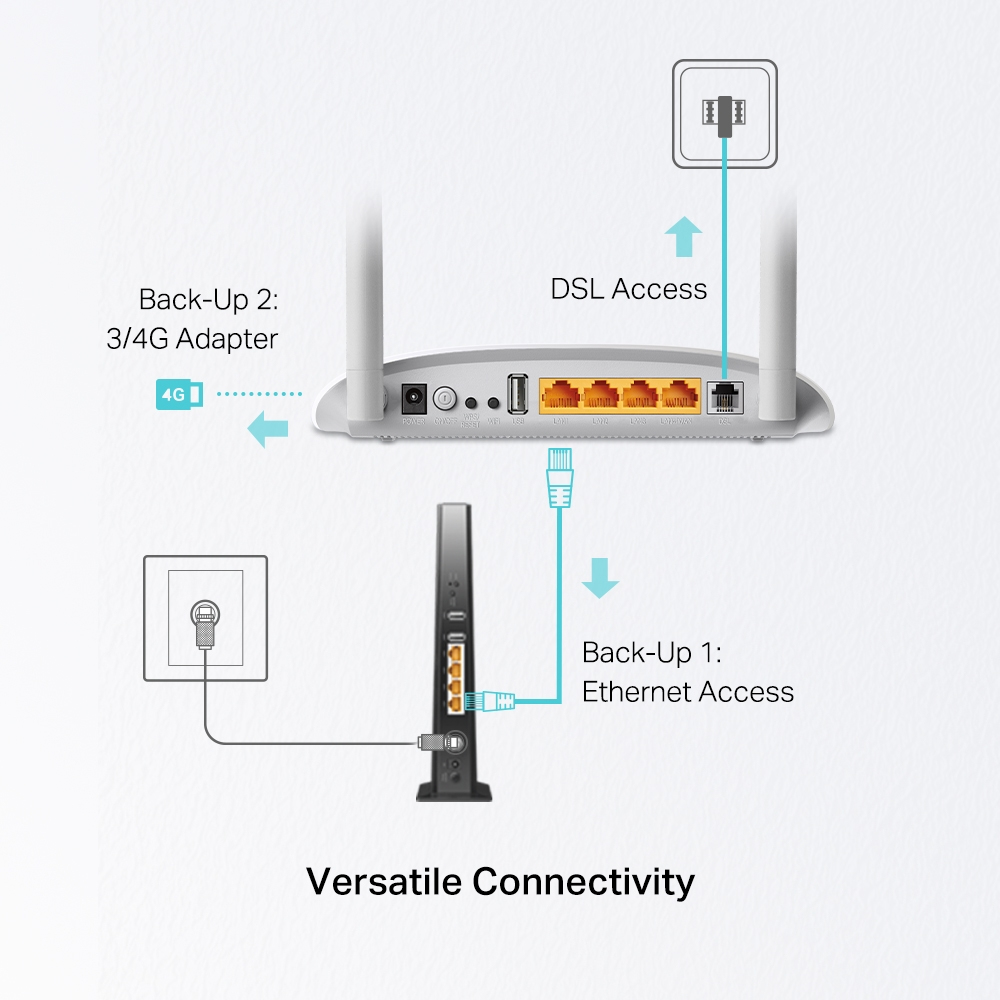

Versatile Connectivity
The TD-W9970 is built to connect you to the internet, no matter your situation. The Ethernet WAN port supports wired connection to cable or fiber modem, letting you take full charge of its wireless capabilities as a router. In case your internet goes down, attach a 3/4G adapter to USB 3.0 port to serve as a backup option so you can get back online in no time.
Easy Setup and Management
Set up the TD-W9970 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.
Powerful Antennas
Two external 4dBi high-gain antennas beam signal to every corner of your home, creating a strong, stable Wi-Fi network.
6kV Lightning Protection
Lightning protection shields TD-W9970 from electrical damage caused by thunderstorms, so even in bad weather, you can enjoy internet with peace of mind.
Secure Surfing
Parental Controls limit the online time and access of specified devices. Guest Network creates a separate Wi-Fi network for visitors, keeping your main network secure.
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Port forwarding | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| USB sharing | Yes |
| Wireless Distribution System (WDS) bridge | Yes |
| Built-in FTP server | Yes |
| Media server | Yes |
| VPN tunnels quantity | 10 |
| VPN Passthrough | Yes |
| VPN support | PPTP, L2TP, IPSec Pass-through |
| DSL features | |
| ADSL | Yes |
| ADSL2 | Yes |
| ADSL2+ | Yes |
| VDSL2 | Yes |

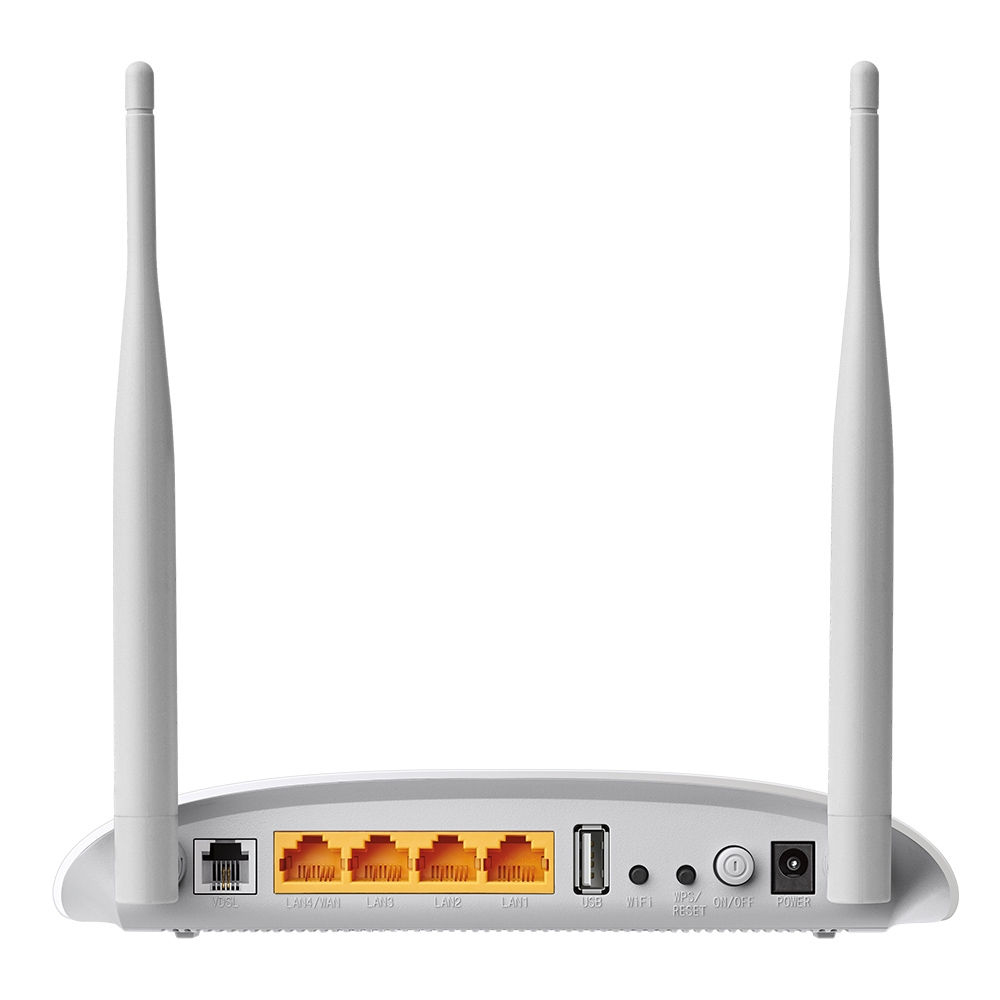

| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| RJ-11 ports quantity | 1 |
| Management features | |
| Web-based management | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| Security | |
| Security algorithms | 128-bit AES, 128-bit WEP, 192-bit AES, 256-bit AES, 3DES, 64-bit WEP, DES, MD5, SHA-1, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall | Yes |
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Parental control | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| URL filtering | Yes |
| DMZ support | No |
| Network address translation (NAT) | Yes |
| Protocols | |
| DHCP client | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Design | |
| Product colour | White |
| Wall mountable | Yes |
| LED indicators | Yes |
| On/off switch | Yes |
| Product type | Tabletop router |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Packaging content | |
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Antenna | |
| Antenna design | External |
| Antenna gain level (max) | 5 dBi |
| Antennas quantity | 2 |
| Features | |
| Firmware upgradeable | Yes |
| Power | |
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP |
| Linux operating systems supported | Yes |
| Mac operating systems supported | macOS |
| Weight & dimensions | |
| Width | 195 mm |
| Depth | 130 mm |
| Height | 36 mm |
| Packaging data | |
| Package width | 260 mm |
| Package depth | 232 mm |
| Package height | 70 mm |
| Package weight | 550 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| WLAN data transfer rates supported | 300 Mbit/s |
| Frequency range | 2.4 - 2.4835 GHz |
| USB ports quantity | 1 |
| USB version | 2.0 |
| xDSL connection | Yes |
| Warranty | |
| Base Warranty | Non Non |
