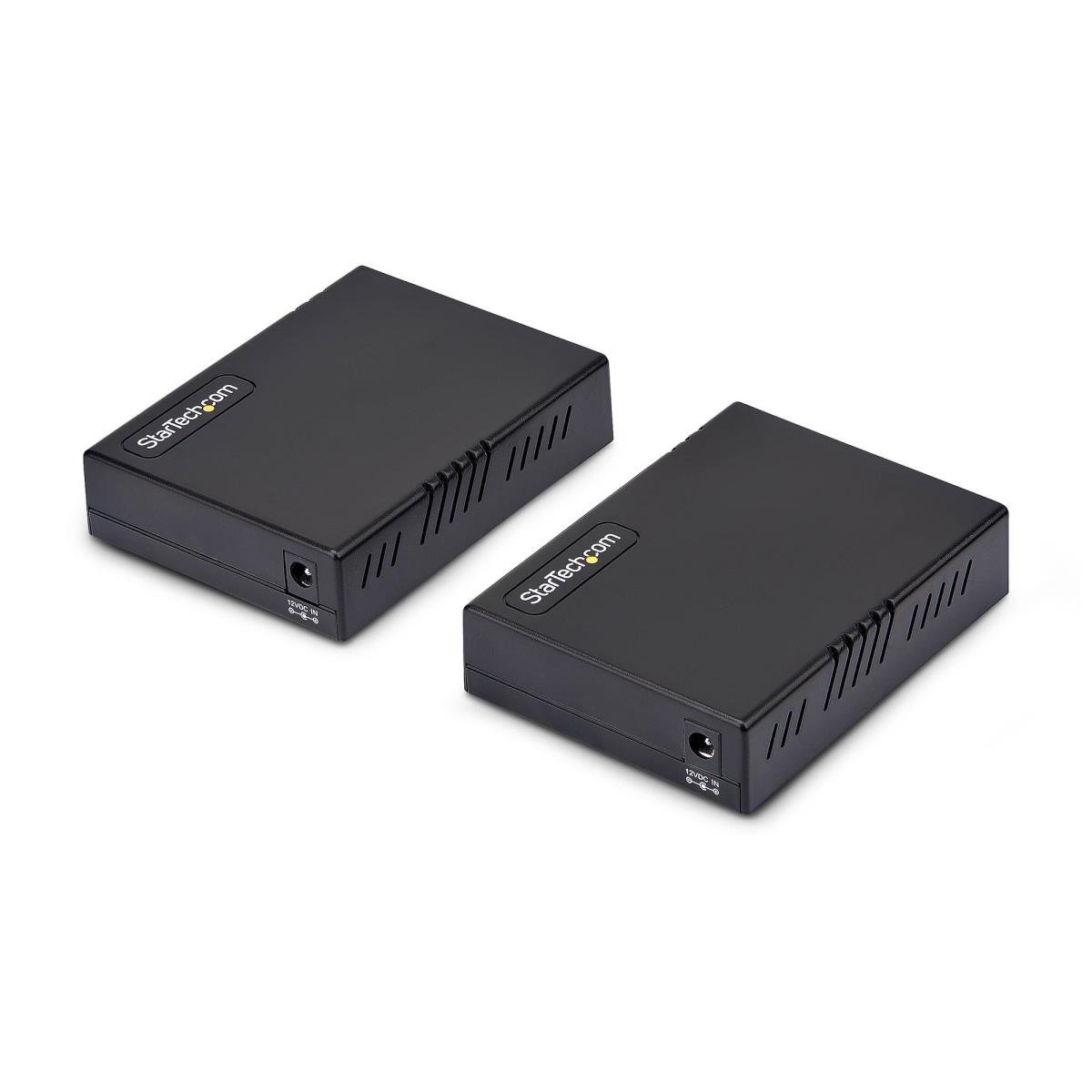

Vdsl2 Ethernet Extender Kit Over Single Pair Wire Up To 0.6mi (1km) Long Range
ITCurry #: 7564C552 | Article #: VDSL-LAN-EXTENDER-EU-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Extend a network up to 0.6 miles (1km) over single pair wire/phone line wire UTP
Extend a network over VDSL2, using Cat5e (or better) UTP Cabling or Single-Pair (or better) Telephone Wire at distances up to 0.6mi (1km).
Extend Network Connectivity
Extend a network over VDSL2 using UTP, CAT5e/6 or RJ11 cabling over distances up to 0.6mi (1km). Speeds of up to 300 Mbps (aggregated) are available at shorter distances. Supports VDSL2 35b/30a/17a and features ITU-T G.993.5 G.Vectoring and G.INP technologies.
Thoughtful Design
The installation can be customized by using DIP switches. Choose between Master or Remote mode, Symmetric or Asymmetric mode, G.INP or Interleave mode, and fine-tune SNR with High and Low options for optimal performance. The Gigabit Ethernet Extender has LEDs that provide a visual indication of network status, including LAN speed, link status, power, and remote/master mode, allowing IT administrators to monitor and assess network connectivity.
Versatile Applications
The Long-Range LAN Extender can be mounted on a wall, using the included hardware, or installed on a shelf or other surface. The kit includes two power adapters, one for each VDSL Extender. The extender works with third-party VDSL2 IP DSLAMs in CPE (RT) mode and extends the network for applications such as remote office or branch locations or IP-based video solutions. The 802.1Q VLAN tag transparency preserves VLAN-tagged traffic across the extension.
| Performance | |
| Type | Network transmitter & receiver |
| Maximum transfer distance | 1000 m |
| Data transfer rate | 300 Mbit/s |
| Cable types supported | Cat5e, Cat6 |
| Chipset | RTL8685FB-CG |
| Ethernet LAN data rates | 10,100,300 Mbit/s |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
| Design | |
| Product colour | Black |
| Rack mounting | No |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 0.5 A |
| Power consumption (typical) | 3.8 W |
| External power adapter | Yes |
| Output current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -10 - 70 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 72 mm |
| Weight | 110 g |
| Packaging content | |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Packaging data | |
| Package width | 180 mm |
| Package depth | 150 mm |
| Package height | 130 mm |
| Package weight | 700 g |
| Certificates | |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Logistics data | |
| Master (outer) case width | 305 mm |
| Master (outer) case length | 425 mm |
| Master (outer) case height | 515 mm |
| Products per master (outer) case | 15 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
