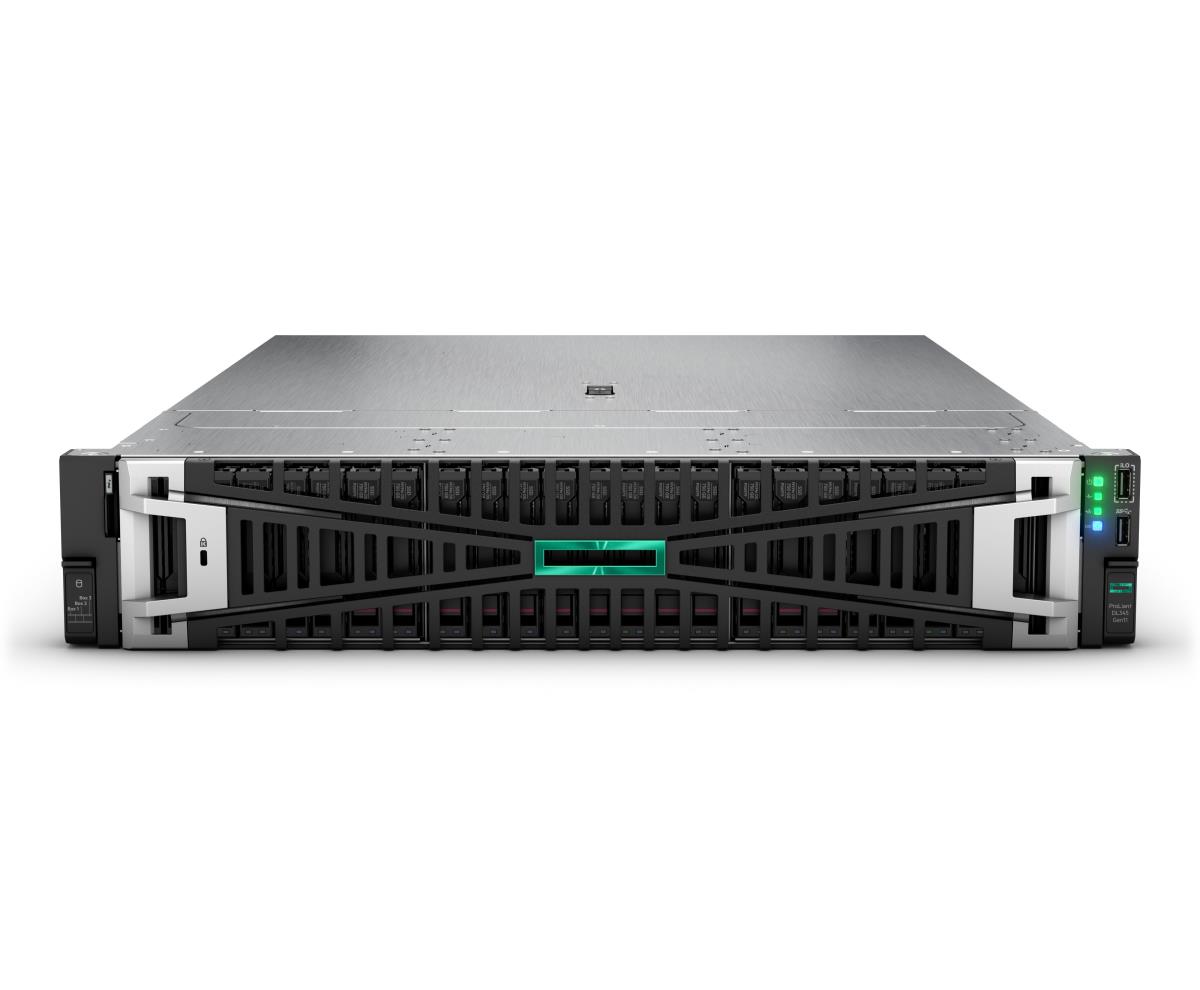

ProLiant DL345 Gen11 - 1p 9115 - 2x32GB-R - 8SFF MR416i-p 2x480GB SSD - 2x1000W PS - EU
ITCurry #: 1171AQH9 | Article #: P81839-425-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Are you looking for a single-socket scalable server solution to power your virtualized data-intense, large-capacity storage workloads while meeting your energy efficiency target? The HPE ProLiant DL345 Gen11 server is a scalable 2U 1P solution that delivers exceptional compute performance and large capacity storage options at 1P economics. Powered by 4th and 5th Generation AMD EPYC™ Processors with up to 160 cores, increased memory bandwidth (up to 3 TB 6400 MT/s), high-speed PCIe Gen5 I/O and EDSFF storage, up to 20 LFF/ 34 SFF/ 36 EDSFF, and up to four GPUs at the front, this server is a superb single-socket 2U solution for your data-intensive workloads. Enhanced security features with the silicon root of trust from HPE are built into the firmware, creating a digital fingerprint for the AMD Secure Processor to validate safe operation prior to boot. This server provides impressive storage performance and options for data-intensive workloads such as software-defined storage.
What is new supporting point:
Powered by the 4th and 5th Generation AMD EPYC™ Processors with 5nm technology that supports up to 160 cores at 400W, 384 MB of L3 cache, and 12 DIMMs for DDR5 6400 MT/s memory.
12 DIMM channels per processor for up to 3 TB total DDR5 6400 MT/s memory with increased memory bandwidth and performance, and lower power requirements.
Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 6x16 PCIe Gen5, two OCP 3.0 slots, and up to 36 EDSFF E3.S 1T NVMe.
Includes HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly from anywhere.
Supports hot-pluggable, high-availability RAID M.2 boot options.
Supports mid/rear drive bay options, total of up to 34 SFF / 20 LFF drives.
| Processor | |
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor generation | AMD EPYCT 9005 Series |
| Processor model | 9115 |
| Processor frequency | 2.6 GHz |
| Processor boost frequency | 4.1 GHz |
| Processor cores | 16 |
| Processor cache | 64 MB |
| Number of processors installed | 1 |
| Processor cache type | L3 |
| Memory | |
| Internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 12x DIMM |
| Memory clock speed | 6400 MHz |
| Memory layout (slots x size) | 2 x 32 GB |
| Maximum internal memory | 3 TB |
| Storage | |
| Total storage capacity | 960 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| Supported SSD sizes | 3.5" |
| Number of SSDs supported | 8 |
| RAID support | Yes |
| Supported RAID controllers | HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller |
| Optical drive type | No |
| Network | |
| LAN controller | Broadcom BCM5719 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Expansion slots | 8 maximum, for detailed descriptions refer to the QuickSpecs |
| VGA (D-Sub) ports quantity | 1 |
| Number of management ports | 1 pc(s) |
| Design | |
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Rack mounting | Yes |
| Performance | |
| Management platform | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses), HPE Compute Ops Management (subscription included) |
| Software | |
| Operating system installed | No |
| Power | |
| Power supply type | 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1000 W |
| Number of main power supplies | 2 |
| Weight & dimensions | |
| Width | 646 mm |
| Depth | 448 mm |
| Height | 87.5 mm |
| Weight | 38 kg |
| Other features | |
| Standard fans | 6x Standard Fans |
| Dimensions (W x D x H) (imperial) | 600.2 x 917.7 x 270 mm (23.6 x 36.1 x 10.6") |
| Storage drive type | 2x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
| Weight (imperial) | 38 kg (83.8 lbs) |
| Number of processors supported | 1 |
| Warranty | |
| Base Warranty | Non Non |
