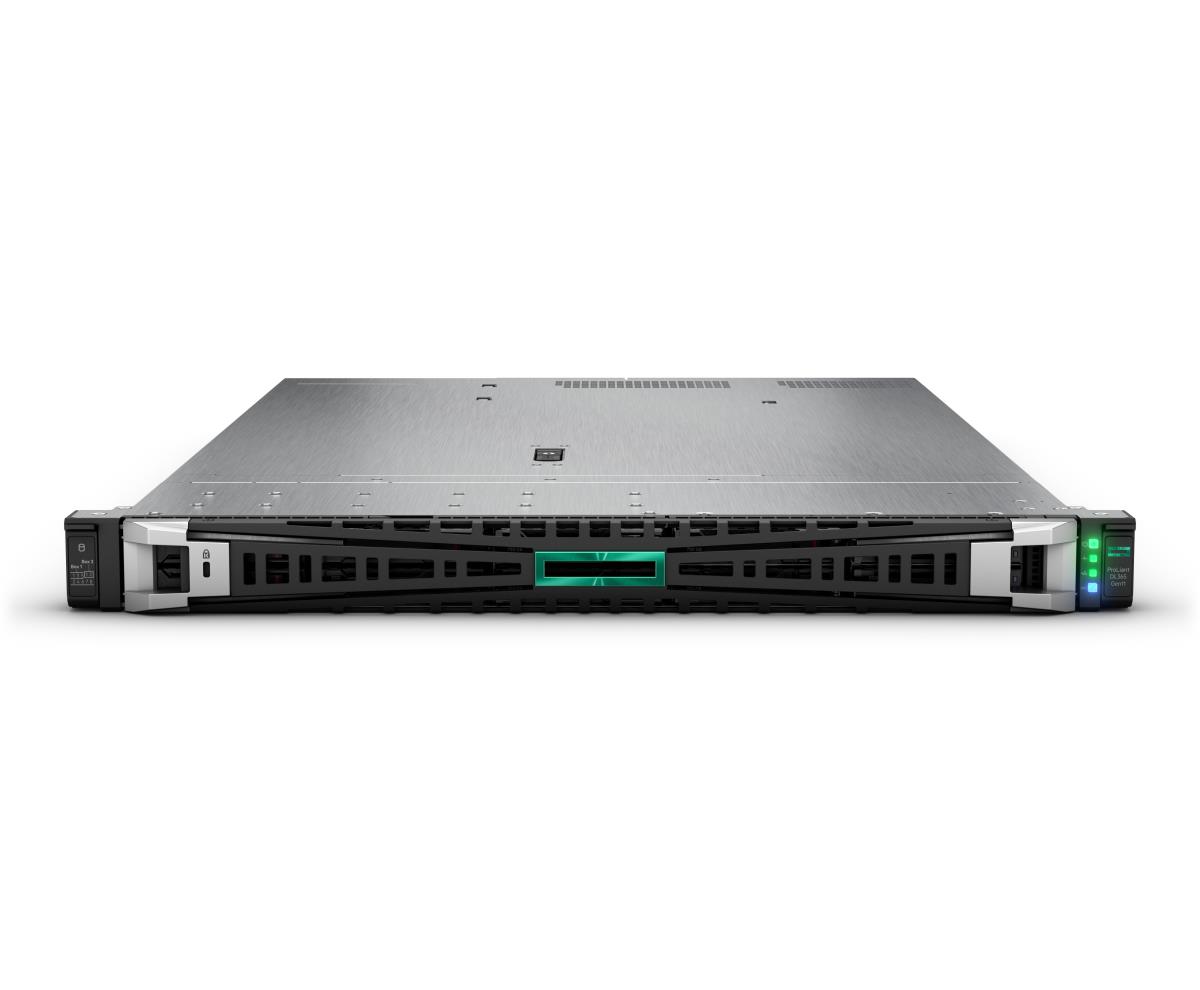

ProLiant DL365 Gen11 - 1p 9115 - 2x32GB-R - 8SFF MR408i-o 2x480GB SSD - 2x1000W PS - EU
ITCurry #: 1171APX8 | Article #: P81840-425-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Are you looking for a scalable, compute-dense solution for high-performance workloads? The HPE ProLiant DL365 Gen11 server is a rack-optimized 1U 2P dense solution that delivers exceptional compute performance, upgraded high-speed data transfer rate and memory depth at 2P compute capability. Powered by 4th & 5th Generation AMD EPYC™ 9004 & 9005 Series Processors with up to 160 cores, increased memory bandwidth and capacity, high-speed PCIe Gen5 I/O, Enterprise and Datacenter Standard Form Factor (EDSFF) and GPU support, the HPE ProLiant DL365 Gen11 server is a superb rack-optimized, 1U 2P, dense solution. Enhanced security features with the HPE silicon root of trust are built into the firmware, creating a digital fingerprint for the AMD Secure Processor to validate safe operation prior to boot. Supports Direct Liquid Cooling (DLC) for enhanced power usage effectiveness and reduce cooling costs.
What is new supporting point:
Powered by 4th and 5th Generation AMD EPYC™ 9004 & 9005 Series Processors with 5nm technology that supports up to 160 cores at 400W, 1152 MB of L3 cache, and 24 DIMMs for DDR5 memory up to 6400 MT/s.
12 DIMM channels per processor for up to 6 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.
Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and 2 OCP slots.
Includes HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly from anywhere.
EDSFF drive support for higher density and performance options.
Supports Direct Liquid Cooling (DLC) for enhanced power usage effectiveness and reduce cooling costs.
| Processor | |
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor generation | AMD EPYCT 9005 Series |
| Processor model | 9115 |
| Processor frequency | 2.6 GHz |
| Processor boost frequency | 4.1 GHz |
| Processor cores | 16 |
| Processor cache | 64 MB |
| Number of processors installed | 1 |
| Processor cache type | L3 |
| Memory | |
| Internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 24x DIMM |
| Memory clock speed | 6400 MHz |
| Memory layout (slots x size) | 2 x 32 GB |
| Maximum internal memory | 6 TB |
| Storage | |
| Total storage capacity | 960 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| Supported SSD sizes | 2.5" |
| Number of SSDs supported | 8 |
| RAID support | Yes |
| Supported RAID controllers | HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller |
| Optical drive type | No |
| Network | |
| LAN controller | Broadcom BCM57416 |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Expansion slots | 2 maximum, for detail descriptions refer to the QuickSpecs |
| VGA (D-Sub) ports quantity | 1 |
| Number of management ports | 1 pc(s) |
| Design | |
| Chassis type | Rack (1U) |
| Cooling type | Active |
| Rack mounting | Yes |
| Performance | |
| Management platform | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, HPE OneView Advanced (require license), and HPE Compute Ops Management |
| Software | |
| Operating system installed | No |
| Power | |
| Power supply type | 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1000 W |
| Number of main power supplies | 2 |
| Weight & dimensions | |
| Width | 649.4 mm |
| Depth | 448.9 mm |
| Height | 42.9 mm |
| Weight | 29.4 kg |
| Other features | |
| Standard fans | 7x Standard Fans |
| Dimensions (W x D x H) (imperial) | 915.9 x 599.9 x 242.1 mm (36.1 x 23.6 x 9.53") |
| Storage drive type | 2x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
| Weight (imperial) | 29.4 kg (64.7 lbs) |
| Number of processors supported | 1 |
| Warranty | |
| Base Warranty | Non Non |
