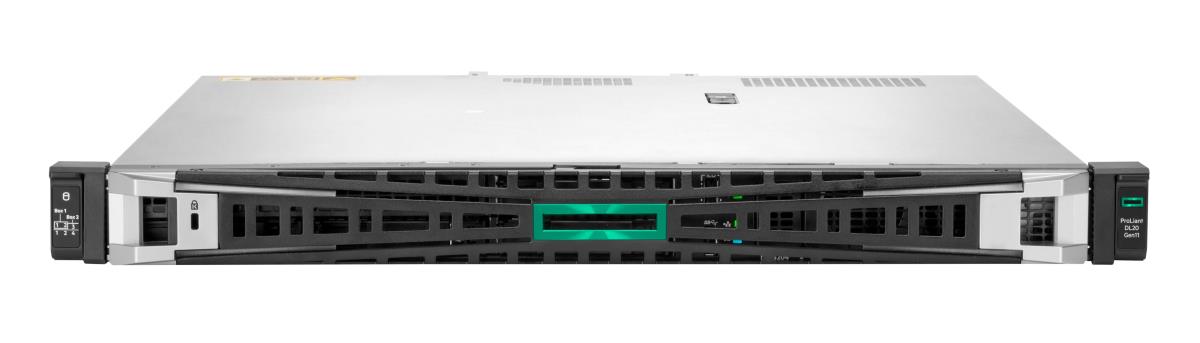

ProLiant DL20 Gen11 - 1p 6333P - 1x32GB-U - 4SFF NS204i-u VROC - 1x800W PS - EU
ITCurry #: 1171ARM4 | Article #: P85574-425-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Are you looking for a compact and versatile 1U server that supports edge workloads like security monitoring in a variety of environments? The reliable HPE ProLiant DL20 Gen11 server delivers a compact and versatile server with enhanced security at an affordable price. Deploy the short-depth rack form factor in small, remote, or branch offices, as a powerful point of sale platform in transport, retail, and hospitality environments or as a flexible configuration for customization in space constrained environments of military and government customers. Blending performance, reliability, and manageability, this one-socket, 1U server featuring Intel Xeon E processors provide unique enterprise-class capabilities at a great value—making it an ideal rack server platform for growing businesses, enterprises, and service providers. Outstanding configuration flexibility caters to a variety of business requirements and a wide range of qualified options fits a variety of needs.
What is new supporting point:
Optional HPE iLO management port as an option kit for faster data transmission with enhanced security.
One PCIe Gen5 slot for greater I/O bandwidth.
One OCP slot for greater I/O bandwidth.
Supports Intel Xeon E-2400 Series processors, up to 8 cores.
HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© Xeon© |
| Processor model | 6333P |
| Processor frequency | 3.1 GHz |
| Processor boost frequency | 5.2 GHz |
| Performance cores | 6 |
| Processor cores | 6 |
| Processor cache | 18 MB |
| Number of processors installed | 1 |
| Processor cache type | L3 |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 4x DIMM |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Maximum internal memory | 128 GB |
| Storage | |
| Supported SSD sizes | 2.5" |
| Number of SSDs supported | 4 |
| RAID support | Yes |
| Supported RAID controllers | HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device |
| Optical drive type | No |
| Graphics | |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| Network | |
| LAN controller | Broadcom BCM5719 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Expansion slots | Two maximum, for detailed descriptions refer to the QuickSpecs. |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Design | |
| Chassis type | Rack (1U) |
| Product colour | Black, Silver |
| Cooling type | Active |
| Rack mounting | Yes |
| Performance | |
| Management platform | HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE Compute Ops Management (optional subscription available) |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | No |
| Power | |
| Power supply type | 1x HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit |
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Number of main power supplies | 1 |
| Weight & dimensions | |
| Width | 434.6 mm |
| Depth | 378.4 mm |
| Height | 43.2 mm |
| Weight | 10.9 kg |
| Other features | |
| Standard fans | 3x High Performance Fans |
| Dimensions (W x D x H) (imperial) | 268 x 693.9 x 586 mm (10.6 x 27.3 x 23.1") |
| Storage drive type | None ship standard, 4 SFF supported |
| Security features | Embedded Trusted Platform Module (TPM) 2.0 enabled by default. For servers shipping to China, the TPM is disabled. For full security features refer to the QuickSpecs. |
| Weight (imperial) | 10.9 kg (24 lbs) |
| Number of processors supported | 1 |
| Warranty | |
| Base Warranty | Non Non |
