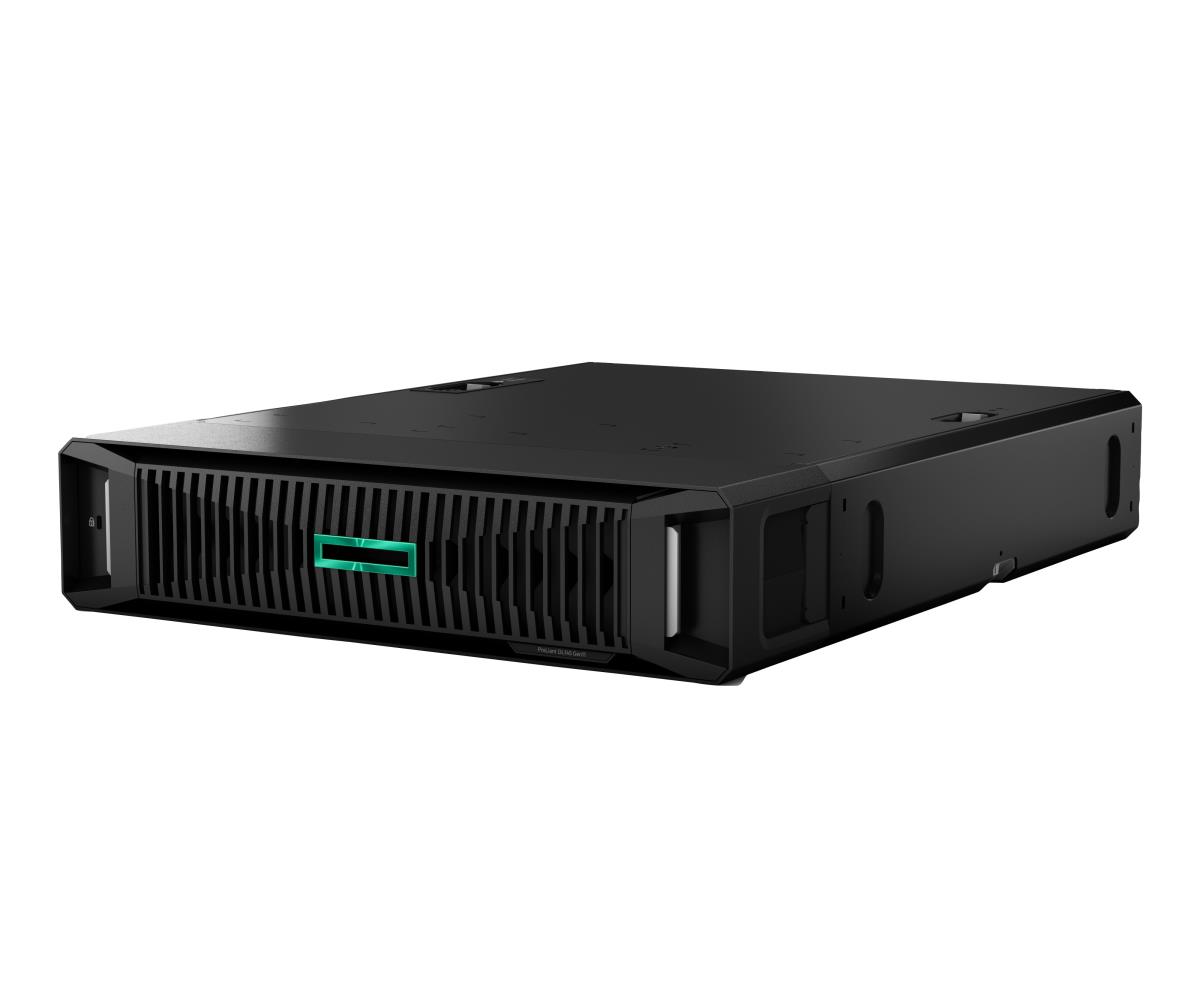

ProLiant DL145 Gen11 - 1p 8124P - 2x32GB-R - 2SFF NS204i-u - 2x1000W PS - EU
ITCurry #: 1171ANJ2 | Article #: P79815-425-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Ready to experience exceptional performance, affordability, and versatility with a modern edge computing server solution? The HPE ProLiant DL145 Gen11 server is a 2U, single processor, robust edge computing server designed to cater to the needs of retail, manufacturing, telecommunications, and various other industries. It offers a compelling alternative to traditional servers with its sleek design, affordable pricing, and quiet operation. Powered by the 4th Generation AMD EPYC™ 8004 Zen4c architecture, this server provides up to 64 energy-efficient cores, PCIe Gen5 speed, and high-performance EDSFF storage. It can operate continuously in temperatures ranging from -5°C to 55°C and withstand high-dust and high-vibration environments. It is engineered for today's hybrid world, allowing enterprises to virtualize traditional IT applications to power their businesses and accelerate AI success.
What is new supporting point:
Operating temperature support up to to 55° C, bezel with air filter, designed to qualify for NEBS Level 3[1].
Various mounting option — Wall, desk, and rack.
Support for 8 to 64 cores and TDP ratings of up to 200W.
AMD EPYC™ 8004 (Siena) processor family, customized for edge computing and environments with physical constraints such as limited power, space, or cooling, 8 to 64 cores, TDP ratings of up to 200W.
Compact size, 15 inches wide, 16 inches deep (without bezel), 20 inches (with bezel).
Support for three single-wide GPUs.
| Processor | |
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor model | 8124P |
| Processor frequency | 2.45 GHz |
| Processor boost frequency | 3 GHz |
| Processor cores | 16 |
| Processor cache | 64 MB |
| Motherboard chipset | AMD SoC |
| Number of processors installed | 1 |
| Memory | |
| Internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory ranking | 2 |
| Memory slots | 6x DIMM |
| ECC | Yes |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 2 x 32 GB |
| Maximum internal memory | 768 GB |
| Storage | |
| Maximum storage capacity | 7.68 TB |
| Total storage capacity | 0 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| Supported SSD sizes | 2.5" |
| Number of SSDs supported | 2 |
| RAID support | Yes |
| RAID levels | 1 |
| Supported RAID controllers | HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device |
| Hot-Plug support | Yes |
| Optical drive type | No |
| Graphics | |
| On-board graphics card | Yes |
| Maximum graphics card memory | 16 MB |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| DisplayPorts quantity | 1 |
| Design | |
| Chassis type | Rack (2U) |
| Rack mounting | Yes |
| Performance | |
| Remote administration | iLO 6 ASIC |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | No |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1000 W |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
| Number of main power supplies | 2 |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 359.4 mm |
| Depth | 406.6 mm |
| Height | 87.5 mm |
| Warranty | |
| Base Warranty | Non Non |
