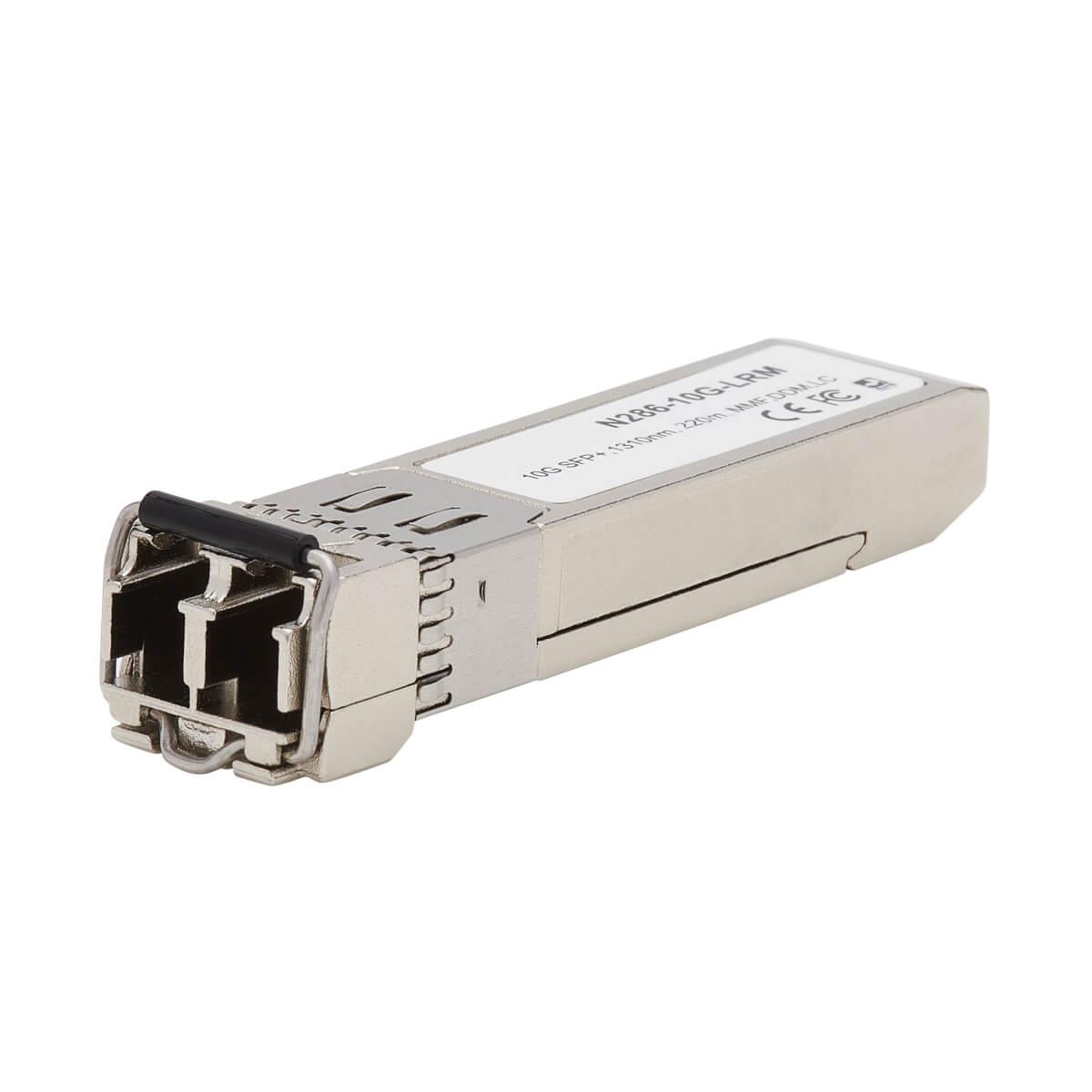

TRIPP LITE Cisco-Compatible SFP-10G-LRM SFP+ Transceiver - 10GBase-LRM, DDM, Multimode LC, 1310 nm, 220m
ITCurry #: 57906510 | Article #: N286-10G-LRM-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
SFP+ Transceiver Designed for Connection to Your Cisco Network Switch or Server
This SFP+ transceiver allows you to connect a 50/125 multimode fiber optic cable to a 10 Gbps network router, server or switch. It transmits data up to 220 meters (721 feet) and supports bi-directional Gigabit Ethernet communication up to 11.1 Gbps. The metal housing protects against electromagnetic interference (EMI) and excessive power dissipation.
Functionally Equivalent to Cisco SFP-10G-LRM Transceiver Module
The MSA-compliant N286-10G-LRM functions just like the equivalent Cisco SFP-10G-LRM transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the SFP-10G-LRM.
Hot-Swappable for Installation Without Network Interruption
This input/output device is fully hot-swappable, so you can install it without a potentially costly 10 Gbps network shutdown or device reboot. Just plug the SFP+ end of the transceiver into your Cisco network device. The other end has an LC duplex connector to link with multimode fiber optic cable (sold separately). A convenient bail clasp latch helps you carefully remove the module from the device.
Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring
DDM support lets you keep track of various operating statuses in real time, including transceiver temperature, input and output power, and supply voltage.
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 50/125 æm |
| SFP transceiver standard | LRM |
| Maximum transfer distance | 220 m |
| Wavelength | 1310 nm |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Brand compatibility | Cisco |
| Certificates | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Minimum operating temperature | -5 øC |
| Maximum operating temperature | 85 øC |
| Operating temperature (T-T) | -5 - 85 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 85% |
| Weight & dimensions | |
| Width | 13.5 mm |
| Depth | 56.6 mm |
| Height | 8.4 mm |
| Weight | 50 g |
| Packaging data | |
| Package width | 114 mm |
| Package depth | 45.2 mm |
| Package height | 21.6 mm |
| Package weight | 30 g |
| Logistics data | |
| Master (outer) case GTIN (EAN/UPC) | 10037332249279 |
| Master (outer) case width | 230.1 mm |
| Master (outer) case length | 130 mm |
| Harmonized System (HS) code | 8517.62.0090 |
| Master (outer) case height | 74.9 mm |
| Master (outer) case gross weight | 430 g |
| Products per master (outer) case | 10 pc(s) |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
