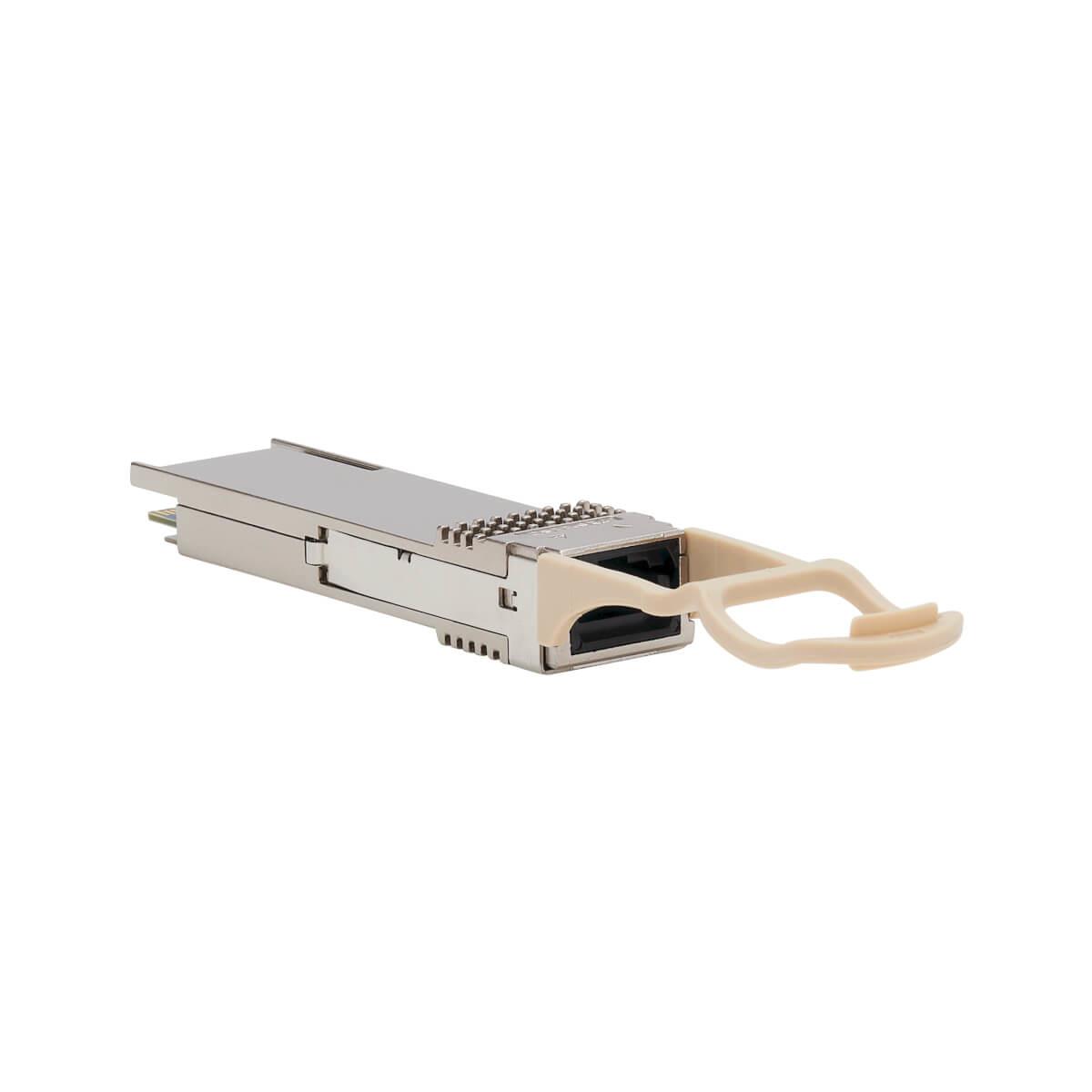

TRIPP LITE Cisco-Compatible QSFP-40G-SR4 QSFP+ Transceiver - 40GBase-SR4, Multimode MTP/MPO, 850 nm, 150m
ITCurry #: 57906516 | Article #: N286-40GSR4-MTP-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
QSFP+ Transceiver Designed for Connection to Your Cisco Network Switch or Server
This QSFP+ transceiver allows you to connect a multimode fiber optic cable to a 40 Gbps network router, server or switch. It transmits data up to 150 meters (492 feet) using an 850 nm wavelength. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.
Functionally Equivalent to Cisco GLC-TE Transceiver Module
The MSA-compliant N286-40GSR4-MTP functions just like the equivalent Cisco QSFP-40G-SR4 transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the QSFP-40G-SR4.
Hot-Swappable for Installation Without Network Interruption
This input/output device is fully hot-swappable, so you can install it without a potentially costly 40 Gbps network shutdown or device reboot. Just plug the QSFP+ end of the transceiver into your Cisco network device. The other end has an MTP/MPO connector to link with multimode fiber cable (sold separately). A push/pull tab connector is easily accessible in high-density data center applications and makes the plug-and-play transceiver easy to install and remove with one hand.
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP+ |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | MPO, MTP |
| SFP transceiver standard | SR4 |
| Maximum transfer distance | 150 m |
| Wavelength | 850 nm |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Easy to install | Yes |
| Brand compatibility | Cisco |
| Certificates | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Minimum operating temperature | 0 øC |
| Maximum operating temperature | 70 øC |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | -20 - 85 øC |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 85% |
| Weight & dimensions | |
| Width | 18.3 mm |
| Depth | 116.3 mm |
| Height | 8.4 mm |
| Weight | 60 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 144.8 mm |
| Package depth | 78.7 mm |
| Package height | 17.8 mm |
| Package weight | 60 g |
| Logistics data | |
| Master (outer) case GTIN (EAN/UPC) | 10037332248623 |
| Master (outer) case width | 185.4 mm |
| Master (outer) case length | 149.9 mm |
| Harmonized System (HS) code | 8517.62.0090 |
| Master (outer) case height | 101.6 mm |
| Master (outer) case gross weight | 680 g |
| Products per master (outer) case | 10 pc(s) |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
