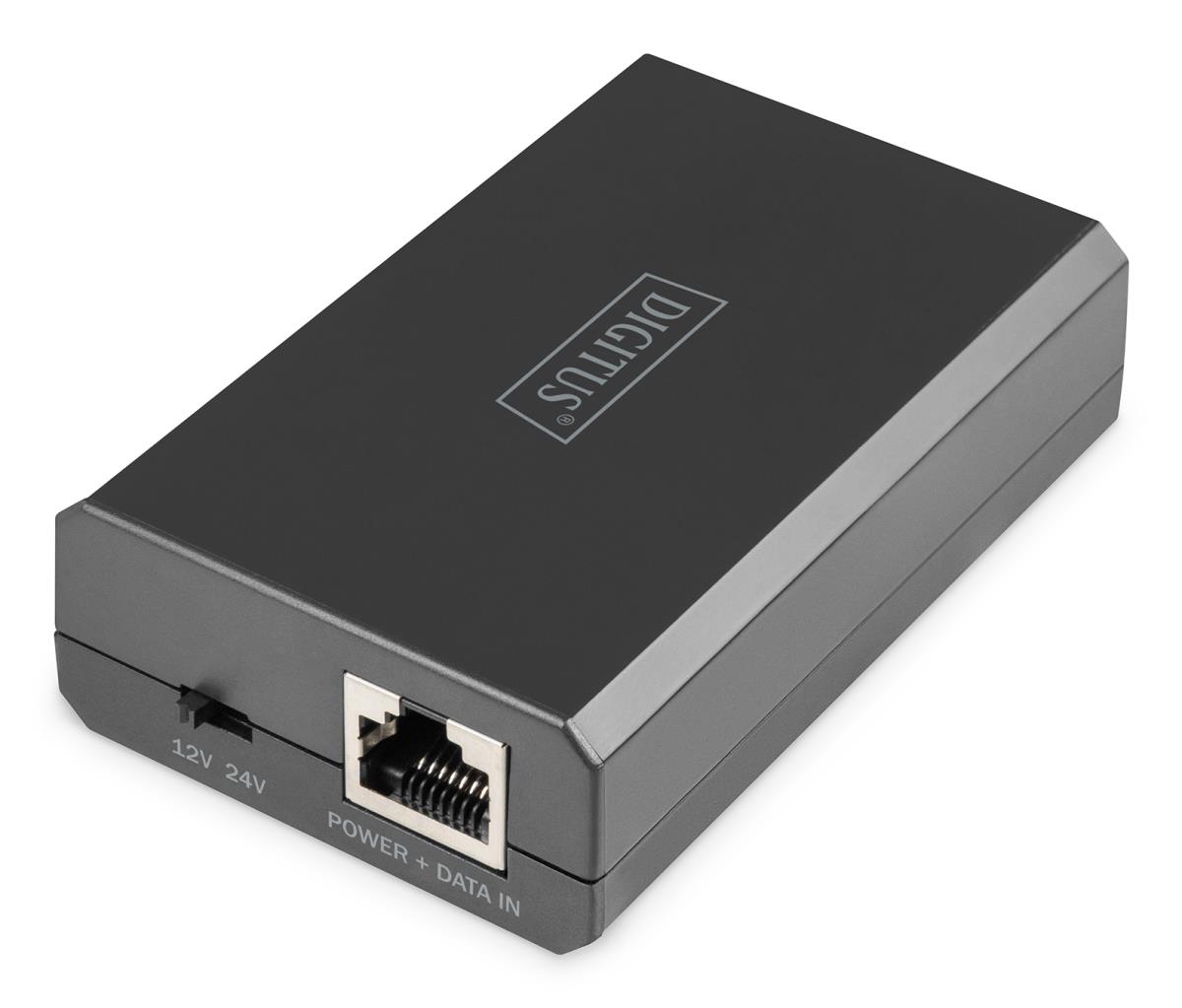

Gigabit Ethernet PoE Splitter 802.3af/at/bt Output: 12V/4.25A 24V/2.125A 51W
ITCurry #: M9239564 | Article #: DN-95211-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The PoE splitter delivers data and power of up to 51W to devices via a single Ethernet cable.
- Ethernet speed: 10/100/1000Mbps Gigabit half/full duplex
- PoE standard: IEEE802.3at/bt

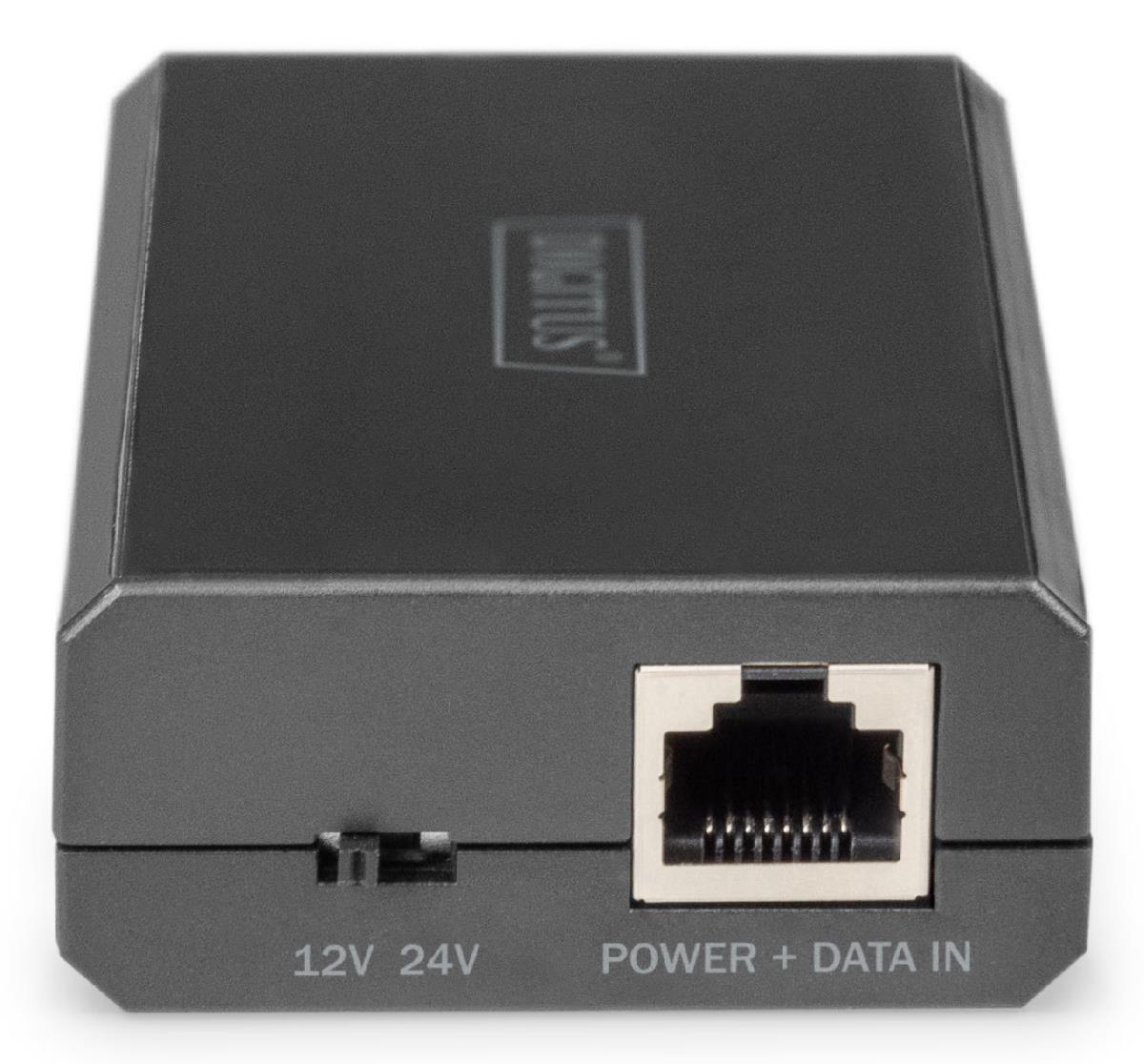

- Input: Power + data input (RJ45)

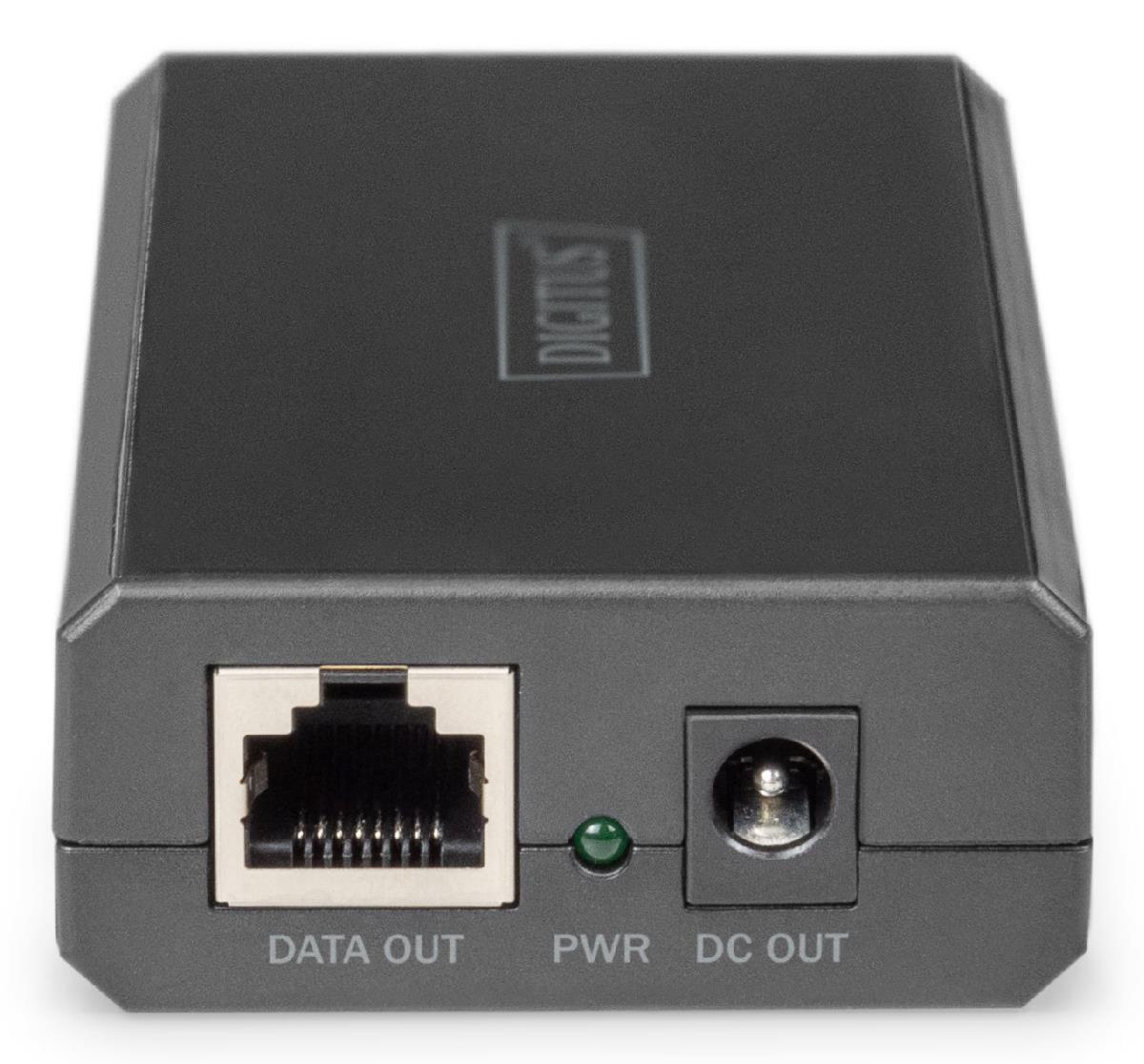

- Output: Data output (RJ45), DC output
- Plug-and-play installation - no configuration required
- Selectable output voltages: 12V/4.25A, 24V/2.125A,
- Splits the 48VDC power into different DC outputs via RJ45 Ethernet cable
- Status LED on the device (PoE ready/PoE in operation)
- Protection through insulation of the circuit
- Maximum output power up to 51W
The PoE splitter supplies data and power via a single Ethernet cable to devices that do not support Power over Ethernet. Simply connect the input of the splitter to a PoE switch or PoE injector and the output side to a non-PoE network device such as an access point, IP phone or camera to provide power and data. The extender is self-powered via PoE, so no additional power supply is required. The output voltage can be regulated to 12V or 24V via a dip switch. This splitter extends your network wherever you want to place network devices for which no sockets are available. are available.
| Network | |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3bt |
| Duplex system | Full, Half |
| Features | |
| Product colour | Black |
| Plug and Play | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power | |
| Power over Ethernet (PoE) voltage | 48 V |
| Output power | 51 W |
| Input voltage | 36 - 57 V |
| Output current | 4.25 A |
| DC output voltage | 24 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Weight & dimensions | |
| Width | 55 mm |
| Depth | 80 mm |
| Height | 23 mm |
| Weight | 80 g |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Power cord included | Yes |
| Quick installation guide | Yes |
| Packaging content | 1x Gigabit PoE Splitter 1x QIG 1x RJ45 Ethernet cable 1x DC power cable |
| Packaging data | |
| Package width | 105 mm |
| Package depth | 25 mm |
| Package height | 150 mm |
| Package weight | 160 g |
| Logistics data | |
| Customs product code (TARIC) | 8544421000 |
| Master (outer) case width | 278 mm |
| Master (outer) case length | 317 mm |
| Master (outer) case height | 545 mm |
| Master (outer) case gross weight | 15.5 kg |
| Master (outer) case volume | 48028.67 cmü |
| Products per master (outer) case | 100 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
