Unmanaged Industrial Gigabit Power Over Ethernet Switch 8 Port 802.3af/at Poe+ - Wall Mountable
ITCurry #: 75646198 | Article #: IES81000POE-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Connect power and Gigabit Ethernet data to 8 PoE-enabled devices, with 30W per-port output - Wall Mountable

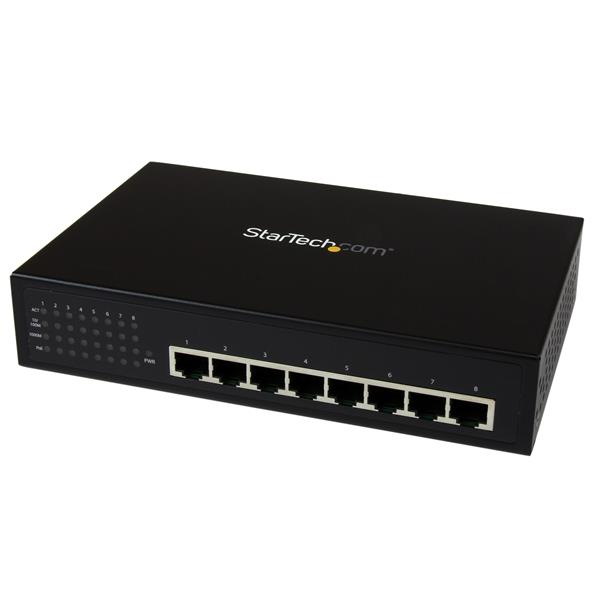

The IES81000POE 8-Port Gigabit Power over Ethernet Switch lets you connect Gigabit Ethernet and power to up to eight PoE-enabled devices, or a mixture of PoE and non-PoE components.
Giving you the freedom to place your equipment in locations where power outlets are not available, this PoE+ switch complies with IEEE 802.3af and 802.3at standards and supplies up to 30 W per port, with a total power budget of 120 W.
A true unmanaged switching solution, the 8 PSE (Power Sourcing Equipment) ports sense whether the connected devices are PoE-ready or require data connectivity only, and also auto-negotiate between 10/100/1000 Mbps network speed and duplex.
The Gigabit Ethernet switch features a sturdy, wall-mountable metal enclosure for durability, and front panel LEDs for quick indication of connection speed and status.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Position your network devices where power outlets aren’t available, with 30 Watts per-port from the switch
- Reduce expenses by using existing standard Cat5/5e/6 Ethernet cabling to deliver power and data
- Provides durable performance in harsh environments with a sturdy steel construction
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | N |
| Full duplex | Y |
| Auto MDI/MDI-X | Y |
| Data transmission | |
| Switching capacity | 2 Gbit/s |
| Packet buffer memory | 0.128 MB |
| Design | |
| Rack mounting | N |
| Product colour | Black |
| LED indicators | Activity, Link, PoE |
| Power | |
| AC input voltage | 110 - 240 V |
| Input current | 2 A |
| Power consumption (typical) | 120 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 øC |
| Storage temperature (T-T) | -20 - 90 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 188 mm |
| Depth | 119 mm |
| Height | 38 mm |
| Weight | 750 g |
| Packaging data | |
| Manual | Y |
| Package width | 197 mm |
| Package depth | 371 mm |
| Package height | 69 mm |
| Package weight | 1.75 kg |
| Warranty | |
| Base Warranty | Non Non |
