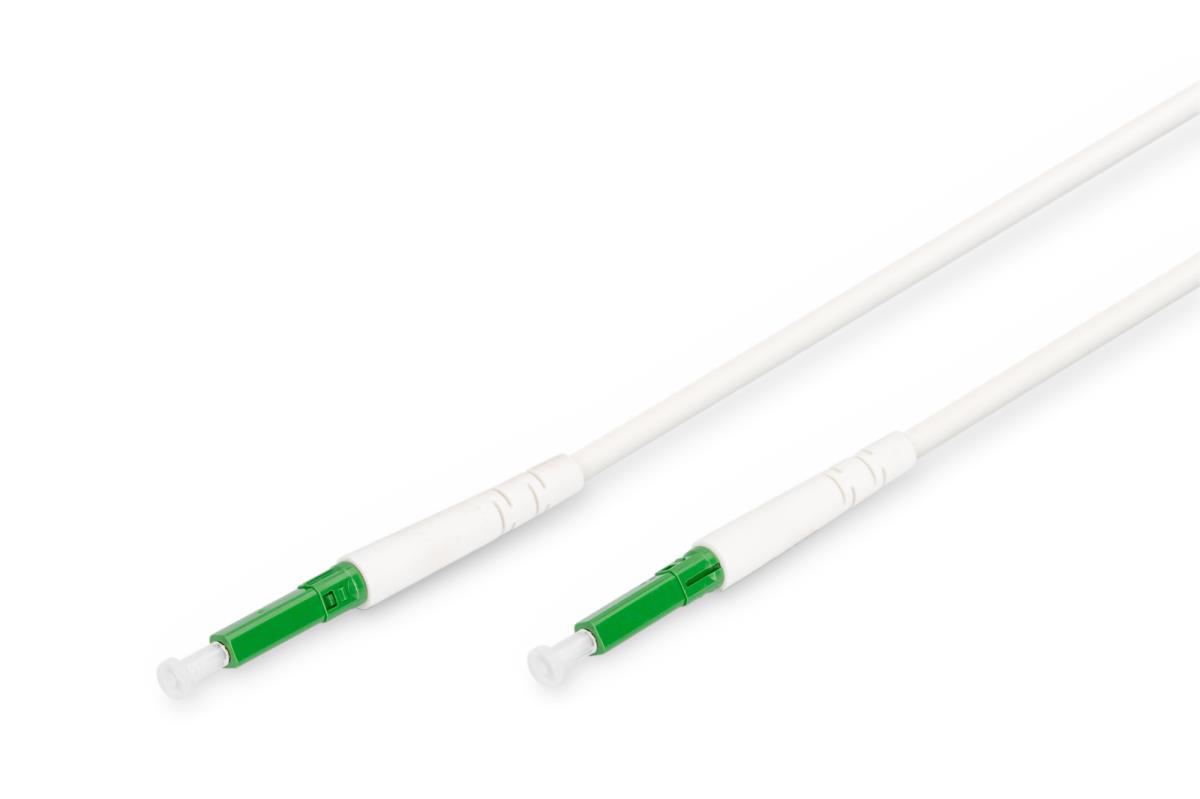

FTTH Preterminated cable - Singlemode - 1 Core Blowable - LC-APC to LC-APC - 50m
ITCurry #: M9239742 | Article #: DK-3901LCA-50-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The pre-assembled, blow-in cable is characterized by high flexibility, low friction and prefabricated connectors. It enables fast and reliable installation without splicing work on site. Ideally suited for FTTH applications.
- Pre-assembled with high-performance connectors - no splicing or on-site assembly required
- Bend-insensitive fiber ensures reliable performance even in tight installation areas with minimal signal loss
- Compact design enables air-assisted blow-in installation in microducts
- Ideal for FTTH network expansion and last-mile connections
The blow-in cable is a specialized fiber optic cable designed for efficient and fast installation using air pressure blow-in technology in microducts. This cable comes with factory pre-terminated polished connectors, eliminating the need for on-site splicing and significantly reducing installation time and potential points of failure. It enables fast and uninterrupted installation of fiber optic connections to homes and businesses. It ensures high-quality, fast and low-latency connections within complex network infrastructures. The cable offers a future-proof solution for modern fiber optic networks by optimally combining efficiency, reliability and scalability. By using pre-terminated, blow-in technology, installers and network operators can significantly reduce installation times while ensuring long-term stable performance in demanding broadband applications.
| Features | |
| Cable length | 50 m |
| Fibre optic type | G.657.A2 |
| Cable shape | Round |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Cable type | LC/APC |
| Product colour | White |
| Fiber mode structure | Single-mode |
| Insertion loss | 0.3 dB |
| Return loss | 60 dB |
| Jacket material | Aramid |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Weight & dimensions | |
| Cable diameter | 2.8 mm |
| Bending radius | 1 cm |
| Packaging data | |
| Package width | 230 mm |
| Package depth | 340 mm |
| Package height | 35 mm |
| Package weight | 390 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
