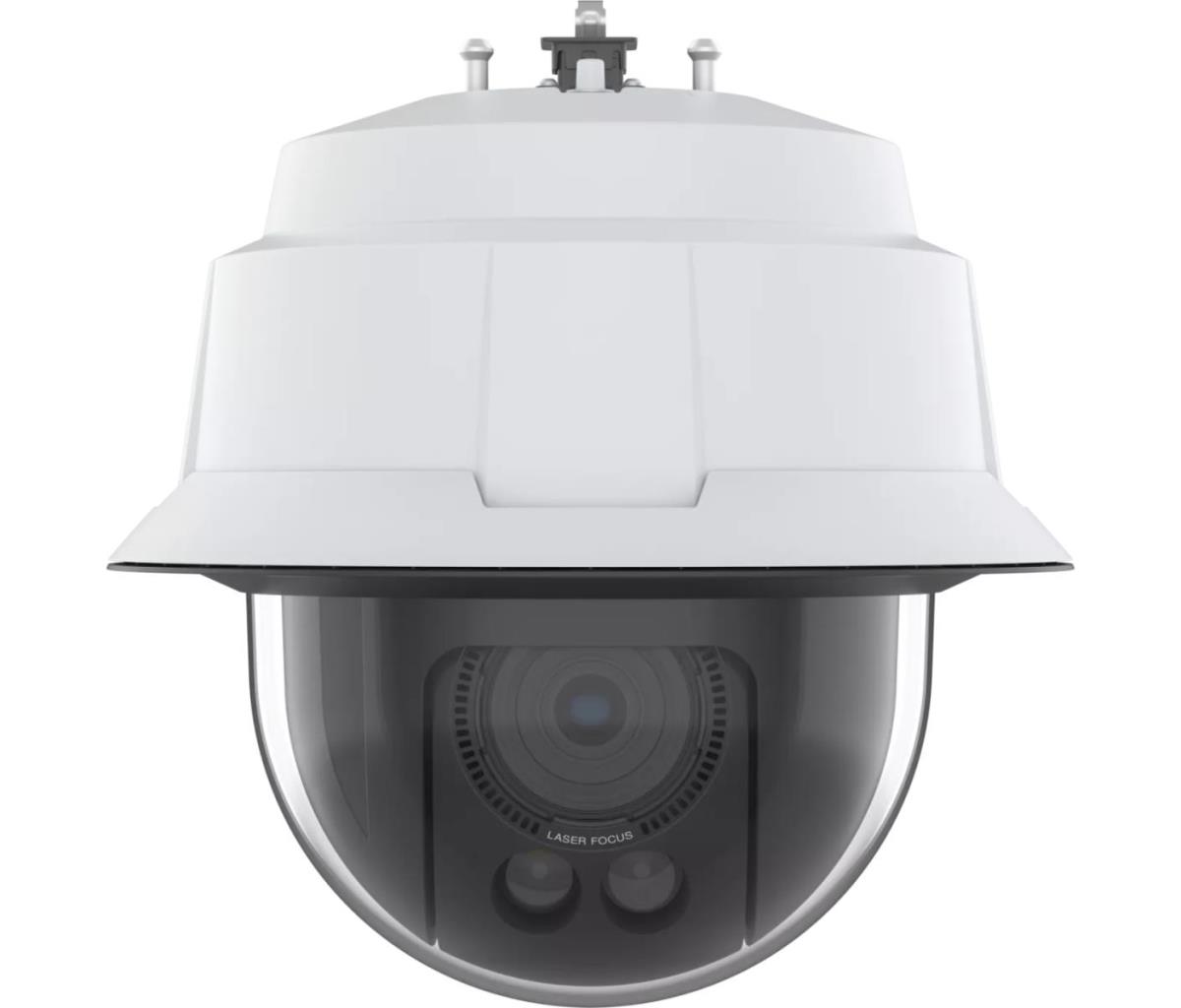

AXIS Q6088-E PTZ Camera
This high-resolution, light-sensitive camera offers excellent image quality and laser focus for precise focus every time. It supports AV1 codec and provides accelerated performance to run impressive analytics applications on the edge.
Great high-resolution details
Built on ARTPEC-9, this next-generation outdoor camera offers outstanding high-resolution image quality in 4K at 60 fps. It features a light-sensitive ½” sensor to deliver clear, bright images and better handling of shadows—ideal in urban areas. With 34x optical zoom, you can easily follow fast-moving objects. Plus, laser focus ensures precise focus every time. Lightfinder 2.0 and Forensic WDR deliver true colors and great detail in challenging light or near darkness. Furthermore, Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements.
Powerful, next-generation analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It also delivers valuable metadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. AXIS Object Analytics comes preinstalled to detect, classify, track, and count humans, vehicles, and different types of vehicles. It also comes with AXIS Image Health Analytics. Autotracking 2 with click-and-track functionality enables active object tracking, and an orientation aid enables dynamic text overlays. What’s more, chameleon masking safeguards privacy.
Robust with strong cybersecurity
Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations. With IP66-, IK10-, NEMA 4x, and NEMA TS2-ratings, it’s both impact and weather-resistant. The camera’s operating temperature is -50 to 50 °C (-58 to 122 °F), while Arctic Temperature Control allows it to power up at as low as -40 °C (-40 °F). With shock detection, you'll be informed if the camera has been hit. And defog functionality ensures clear images despite fog or smog. Furthermore, it offers support for fiber connection, PoE, audio, four I/O ports, and smart restart with the included midspan.
| Performance | |
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | Preset point |
| Auto-tracking | Yes |
| Tour recording | Yes |
| Preset points | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Certification | CE, FCC, ICES, KC, VCCI |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White, Black |
| Housing material | Polycarbonate (PC), Aluminium |
| Protection features | Wear resistant |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Fog proof | Yes |
| Camera | |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.01 lx |
| Lens viewing angle, horizontal | 60.8ø |
| Lens viewing angle, vertical | 36.5ø |
| Tilt angle range | -90 - 0ø |
| Tilt speed | 500 ø/sec |
| Pan range | 0 - 360ø |
| Pan speed | 500 ø/sec |
| Camera pixel size | 2.9 æm |
| Camera shutter speed | 1/59000 - 2 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2 mm (1 / 2") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Optical zoom | 32x |
| Digital zoom | 12x |
| Number of lenses | 1 |
| Focal length range | 6.64 - 225.5 mm |
| Auto focus | Yes |
| Maximum aperture number | 5.1 |
| Minimum aperture number | 1.7 |
| Detect distance (wide) | 92.6 m |
| Detect distance (tele) | 3118.4 m |
| Observe distance (wide) | 36.7 m |
| Observe distance (tele) | 1237.5 m |
| Recognize distance (wide) | 18.5 m |
| Recognize distance (tele) | 623.6 m |
| Identify distance (wide) | 9.3 m |
| Identify distance (tele) | 311.8 m |
| Closest focusing distance | 3 m |
| Video | |
| Maximum resolution | 3840 x 2160 pixels |
| Video compression formats | H.264, H.265, MPEG4, H.262, M-JPEG |
| Supported graphics resolutions | 640 x 360, 3840 x 2160 |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Image quality adjustment | Saturation, Contrast, Brightness, Sharpness |
| Text caption overlay | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.1AE, IEEE 802.1x, IEEE 802.1ar, IEEE 802.3bt |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Streaming method | Multicast |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Flash memory | 8192 MB |
| RAM capacity | 4096 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Password protection | Yes |
| Security algorithms | HTTPS, TLS |
| HTTPS encryption | Yes |
| Alert notification type | |
| Intelligent Video Surveillance (IVS) system features | Crossing line, Abandoned object |
| Pixel counter | Yes |
| Human and vehicle targets classification | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 11.7 W |
| Power consumption (max) | 51 W |
| Operational conditions | |
| Operating temperature (T-T) | -50 - 55 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 264 mm |
| Depth | 264 mm |
| Height | 279 mm |
| Weight | 4.1 kg |
| Sustainability | |
| Compliance certificates | Trade Agreements Act (TAA), RoHS, REACH |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Doesn't contain | PVC/BFR, CFR |
| Warranty | |
| Base Warranty | Non Non |
