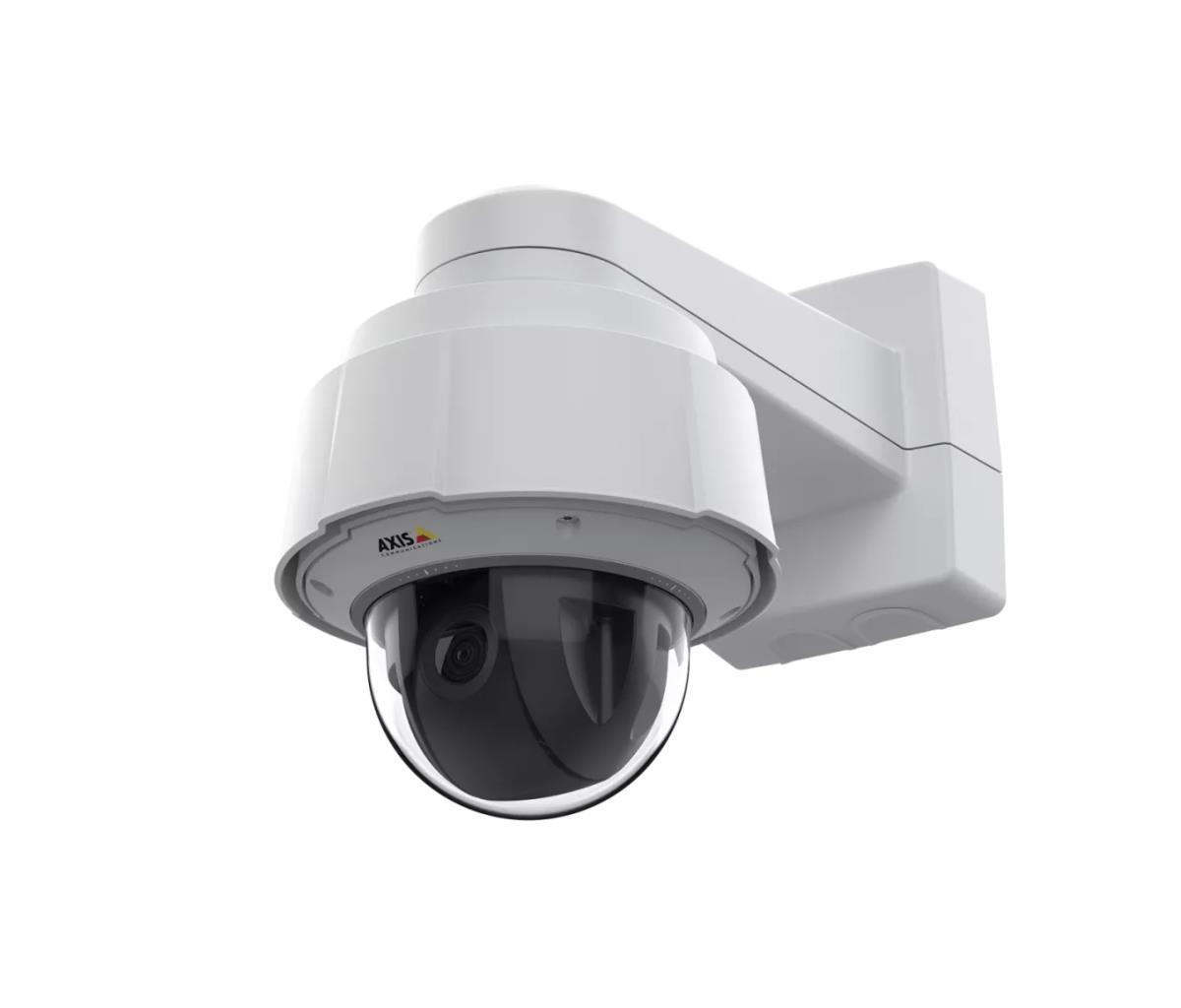

Q6078-e 50hz Ptz Network Camera
ITCurry #: 13836542 | Article #: 02147-301-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Outdoor-ready PTZ with UHD 4K
This robust, high-performance PTZ camera offers UHD 4K with 20x optical zoom for outstanding video quality. It’s ideal for demanding situations in wide, outdoor areas such as cities, airports, and critical infrastructure applications.
Great overviews and superior detail
Based on a powerful Axis chipset, AXIS Q6078-E offers UHD 4K resolution and 20x optical zoom for outstanding video quality. Ideal for wide-area coverage, it delivers great overviews, and you can zoom in for detailed views with the clearest, sharpest colors. Featuring Axis Zipstream technology with support for H.264 and H.265 it preserves all the important forensic details while significantly reducing bandwidth and storage requirements.
Whenever, wherever it’s needed
This outdoor, vandal-resistant camera is IP66, NEMA 4X, and IK10-rated to protect against dust, rain, snow, and impacts. Arctic temperature control ensures startup from a deeply frozen state and operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). Autotracking 2 with click and track functionality and an orientation aid allows for active object tracking and quick orientation. Additionally, where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Furthermore, AXIS Q6078-E features AXIS Object Analytics allowing you to detect and classify humans and vehicles, all tailored to your specific needs.
Designed with cybersecurity in mind
AXIS Q6078-E is packed with built-in cybersecurity features to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensures only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.
| Performance | |
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | Preset point |
| Tour recording | Yes |
| Preset points | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Languages support | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
| Certification | EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 50121-4, IEC 62236-4 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KCC KN32 Class A, KN35 USA: FCC Part 15 Subpart B Class A, IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IS 13252, IEC/EN 60529 IP66/IP67, NEMA TS 2 (2.2.7-2.2.9), IEC 62262 IK10, ISO 4892-2, EN 50121-4, IEC 62236-4, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-60, IEC 60068-2-78, NEMA 250 Type 4X, NIST SP500-267, ETSI EN 303 645, BSI IT Security Label, FIPS 140 |
| Design | |
| Form factor | Dome |
| Mounting type | Wall |
| Product colour | White, Black |
| Housing material | Aluminium, Polycarbonate (PC), Metal |
| International Protection (IP) code | IP66, IP67 |
| IK code | IK10 |
| Camera | |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.002 lx |
| Lens viewing angle, horizontal | 68.3 - 4.2ø |
| Lens viewing angle, vertical | 42.1 - 2.34ø |
| Tilt angle range | 0.05 - 450ø |
| Pan range | 0 - 360ø |
| Camera shutter speed | 1/10000 - 1 s |
| Image sensor | |
| Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Optical zoom | 20x |
| Number of lenses | 1 |
| Focal length range | 4.4 - 88.4 mm |
| Auto focus | Yes |
| Maximum aperture number | 2 |
| Minimum aperture number | 3.8 |
| Night vision | |
| Night vision | Yes |
| Video | |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | H.264, H.265, MJPG |
| Video compression formats | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 3840 x 2160, 320 x 180 |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Image stabilizer | Yes |
| Image quality adjustment | Brightness, Sharpness, White balance |
| Text caption overlay | Yes |
| Bit rate control | Adaptive Bit Rate (ABR), Variable Bit Rate (VBR) |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Quality of Service (QoS) support | Yes |
| Storage | |
| Built-in HDD | No |
| Compatible memory cards | SD, SDHC, SDXC |
| Flash memory | 512 MB |
| RAM capacity | 2000 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Password protection | Yes |
| Video motion detection | Yes |
| IP address filtering | Yes |
| Alert notification type | |
| Privacy protection | Yes |
| Intelligent Video Surveillance (IVS) system features | Crossing line, Human detection, Vehicle detection |
| Pixel counter | Yes |
| Digest authentication | Yes |
| Management features | |
| Cloud-managed | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 16 W |
| Power consumption (max) | 51 W |
| Operational conditions | |
| Operating temperature (T-T) | -50 - 50 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 10 - 100% |
| Weight & dimensions | |
| Height | 271 mm |
| Diameter | 23.2 cm |
| Weight | 3.75 kg |
| Sustainability | |
| Compliance certificates | CB, CE, KCC, RCM, UL, VCCI |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Other features | |
| Doesn't contain | PVC |
| Warranty | |
| Base Warranty | Non Non |
