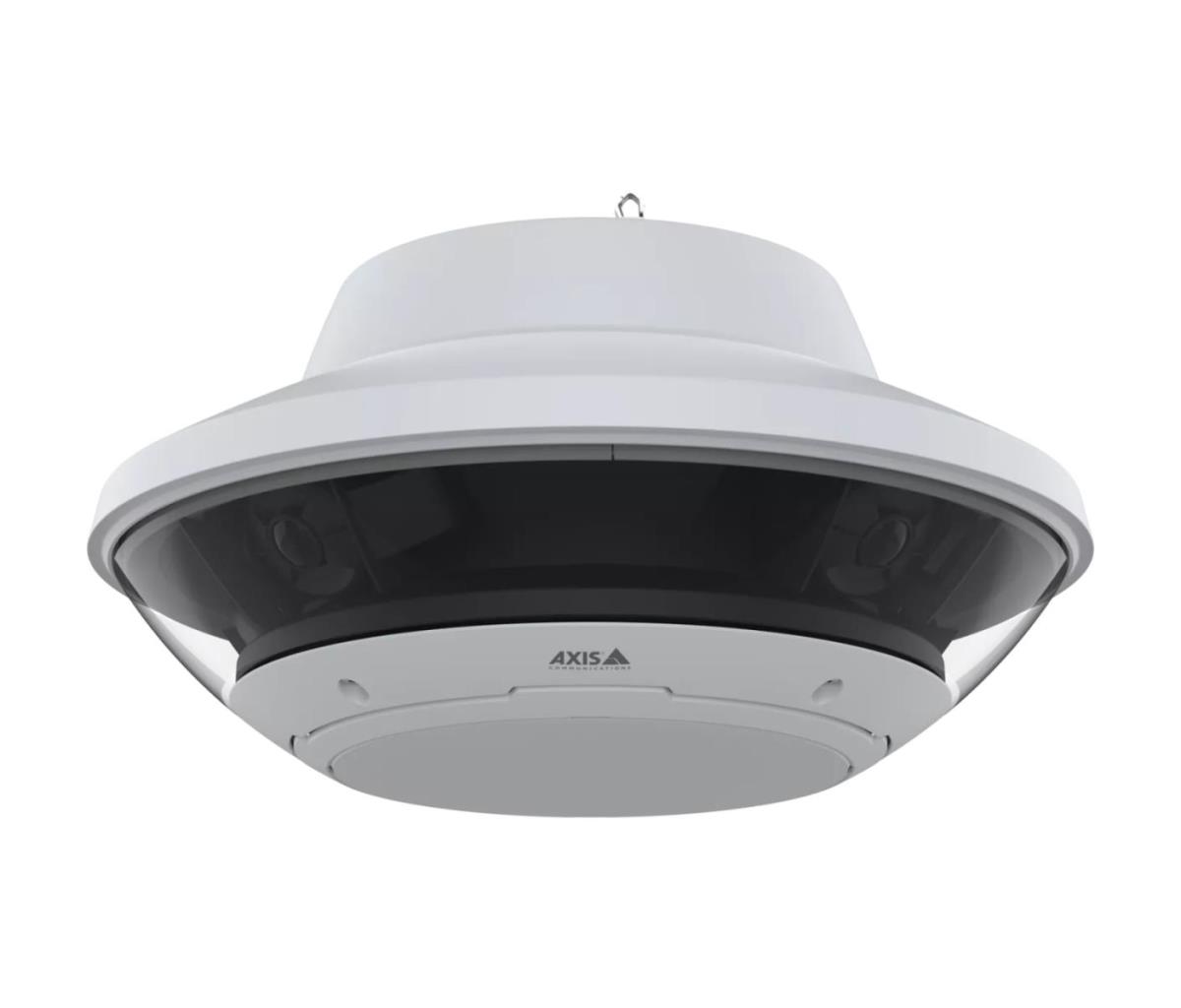

AXIS Q6020-E Panoramic Camera
Designed for operation with AXIS Q60 PTZ Series, this multidirectional camera delivers both 360° overview and great details. With a USB port, installers can insert a Wi-Fi dongle and quickly configure cameras while on site.
See it all
This multidirectional camera offers four 5 MP sensors and delivers 360° overview for total situational awareness. With four ½” sensors, it ensures clear, bright images and better handling of shadows even in challenging light conditions, often reducing the need for IR illumination in dark scenes. This camera is specially designed for operation with AXIS Q60 PTZ Series to capture high-resolution overviews and great details in one complete camera solution. You can move from overview to zoomed-in detailed views with just one mouse click and autopilot enables automatic PTZ tracking. It’s also easy to change lenses and adjust the field of view. For instance, you can use a wide-angle lens to monitor wide open areas, or a tele lens to get great details from a distance.
Powerful and secure
Built on a dual system-on-chip (SoC), this powerful camera features a deep learning processing unit (DLPU) that lets you run advanced features and powerful analytics at the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and types of vehicles. This DLPU also delivers valuable metadata facilitating efficient forensic search capabilities in live or recorded video. Axis Edge Vault safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified. Furthermore, privacy masking with mosaic lets you pixelate whole areas of the scene.
Cost-efficient installation and operation
Using the same bracket, power supply, and network cable as the integrated PTZ camera, there's no extra equipment required for AXIS Q6020-E. With four camera heads in one camera, it ensures fast, accurate, and cost-effective installation. It also features a USB port so installers can insert a Wi-Fi dongle and quickly see the camera view as they adjust it. This makes it easy to configure cameras while on site. Autofocus and auto-alignment functionality let you automatically adjust the camera sensors and PTZ camera, eliminating the need for hands-on fine-tuning. Furthermore, Axis Zipstream significantly lowers bandwidth and storage requirements without compromising image quality.
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Auto-tracking | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Certification | UL/cUL, CE, KC, EAC, VCCI, RCM, TAA |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Black, White |
| LED indicators | Yes |
| Housing material | Aluminium, Polycarbonate (PC), Polymer |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Camera | |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.03 lx |
| Angle of rotation | 190ø |
| Lens viewing angle, horizontal | 360ø |
| Lens viewing angle, vertical | 84ø |
| Tilt angle range | -40 - 75ø |
| Pan range | -180 - 180ø |
| Camera pixel size | 2.9 æm |
| Camera shutter speed | 1/66500 - 2 s |
| Number of Privacy masking areas | 32 |
| Image sensor | |
| Number of sensors | 4 |
| Optical sensor size | 25.4 / 2 mm (1 / 2") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Number of lenses | 4 |
| Detect distance | 46.1 m |
| Observe distance | 19.4 m |
| Recognize distance | 10 m |
| Lens diameter | 3.7 mm |
| Auto focus | Yes |
| Maximum aperture number | 2 |
| Identify distance | 5.1 m |
| Closest focusing distance | 1 m |
| Video | |
| Maximum resolution | 2592 x 1944 pixels |
| Total megapixels | 5 MP |
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Supported graphics resolutions | 320 x 240, 2592 x 1944 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness, White balance |
| Text caption overlay | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Audio | |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Network | |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1AE, IEEE 802.1x, IEEE 802.3bt |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Streaming method | Multicast |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8000 MB |
| RAM capacity | 8000 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Yes |
| Security | |
| Video motion detection | Yes |
| Security algorithms | EAP-TLS, HTTPS, MSCHAPv2, PEAP, TLS |
| Alert notification type | |
| Privacy protection | Yes |
| Human and vehicle targets classification | Yes |
| Management features | |
| Behavior analysis | Line crossing detection |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 14.3 W |
| Power consumption (max) | 47.3 W |
| Operational conditions | |
| Operating temperature (T-T) | -50 - 55 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 361 mm |
| Depth | 361 mm |
| Height | 179.1 mm |
| Weight | 4 kg |
| Sustainability | |
| Compliance certificates | REACH, RoHS |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Doesn't contain | CFR, PVC/BFR |
| Warranty | |
| Base Warranty | Non Non |
