P3277-lve Mic Dome Camera
ITCurry #: 13836876 | Article #: 03213-001-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

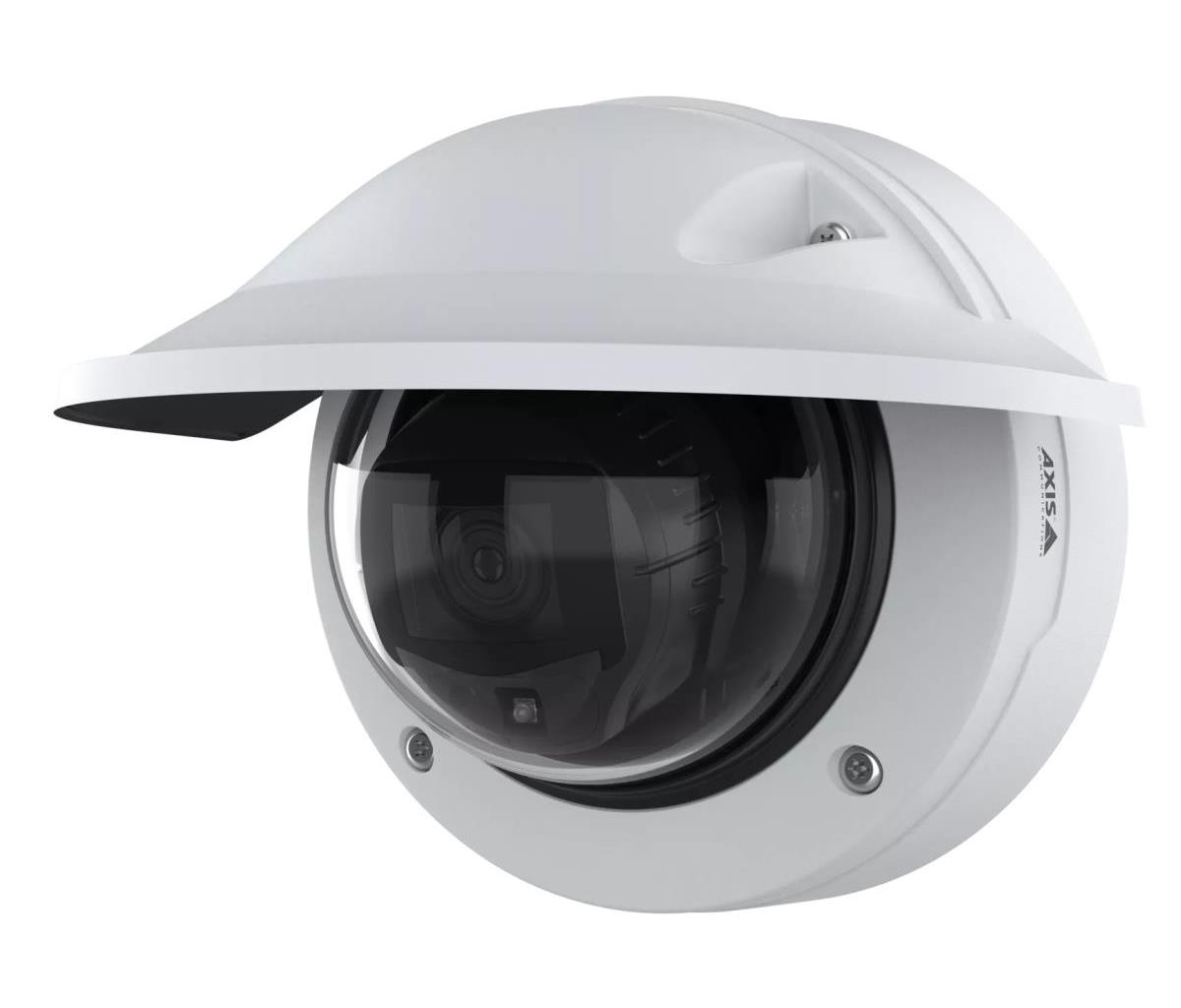

Built on ARTPEC-9, this robust AI-powered dome camera with support for AV1 codec delivers excellent 5 MP image quality in any light conditions. Plus, it's available with a built-in microphone, so it's out-of-the-box-ready for AXIS Audio Analytics.
Excellent image quality
AXIS P3277-LVE offers excellent image quality and forensic details in 5 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. Furthermore, this dome camera includes a built-in audio jack so it’s possible to connect a microphone for audio support.
Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. And, AXIS P3277-LVE Mic is available with a built-in microphone, so it’s out-of-the-box-ready for AXIS Audio Analytics. Furthermore, with AXIS Live Privacy Shield, it’s easy to remotely monitor activities while protecting privacy.
Robust with strong security
This robust, IK10-, IP66-, and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It features a built-in weathershield and has an operating temperature range from -40°C to 50 °C (-40°F to 122°F). And a built-in intrusion switch can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What’s more, this dome camera is easy to install, maintain, and operate.
| Performance | |
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Alarm input/output | Yes |
| Processor model | ARTPEC-9 |
| Built-in processor | Yes |
| Dynamic range | 120 dB |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| LED indicators | Yes |
| Housing material | Plastic, Polycarbonate (PC) |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Camera | |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.03 lx |
| Angle of rotation | 95ø |
| Lens viewing angle, horizontal | 104 - 34ø |
| Lens viewing angle, vertical | 76 - 26ø |
| Tilt angle range | -45 - 80ø |
| Pan range | -190 - 190ø |
| Camera pixel size | 2 æm |
| Camera shutter speed | 1/30500 - 2 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Focal length range | 3 - 8.5 mm |
| Auto focus | Yes |
| Maximum aperture number | 2.58 |
| Minimum aperture number | 1.38 |
| Detect distance (wide) | 60 m |
| Detect distance (tele) | 170 m |
| Observe distance (wide) | 24 m |
| Observe distance (tele) | 67 m |
| Recognize distance (wide) | 12 m |
| Recognize distance (tele) | 34 m |
| Identify distance (wide) | 6 m |
| Identify distance (tele) | 17 m |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 40 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 2592 x 1944 pixels |
| Total megapixels | 5 MP |
| Video compression formats | H.264, H.265, M-JPEG |
| Video recording | Yes |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Gain control type | Auto |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness, White balance |
| Text caption overlay | Yes |
| Audio | |
| Audio system | 2-way |
| Audio system full duplex | Yes |
| Built-in microphone | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1AE, IEEE 802.1ar, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Wi-Fi | No |
| Bluetooth | No |
| Quality of Service (QoS) support | Yes |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| RAM capacity | 2048 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Terminal block port | Yes |
| DC-in jack | Yes |
| Security | |
| Video motion detection | Yes |
| Network access storage (NAS) | Yes |
| Management features | |
| Cloud-managed | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (typical) | 4.7 W |
| Power consumption (max) | 12.6 W |
| DC output voltage | 12 |
| DC output current | 0.025 A |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 50 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 850 g |
| Packaging content | |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Manual | Yes |
| Warranty | |
| Base Warranty | Non Non |
