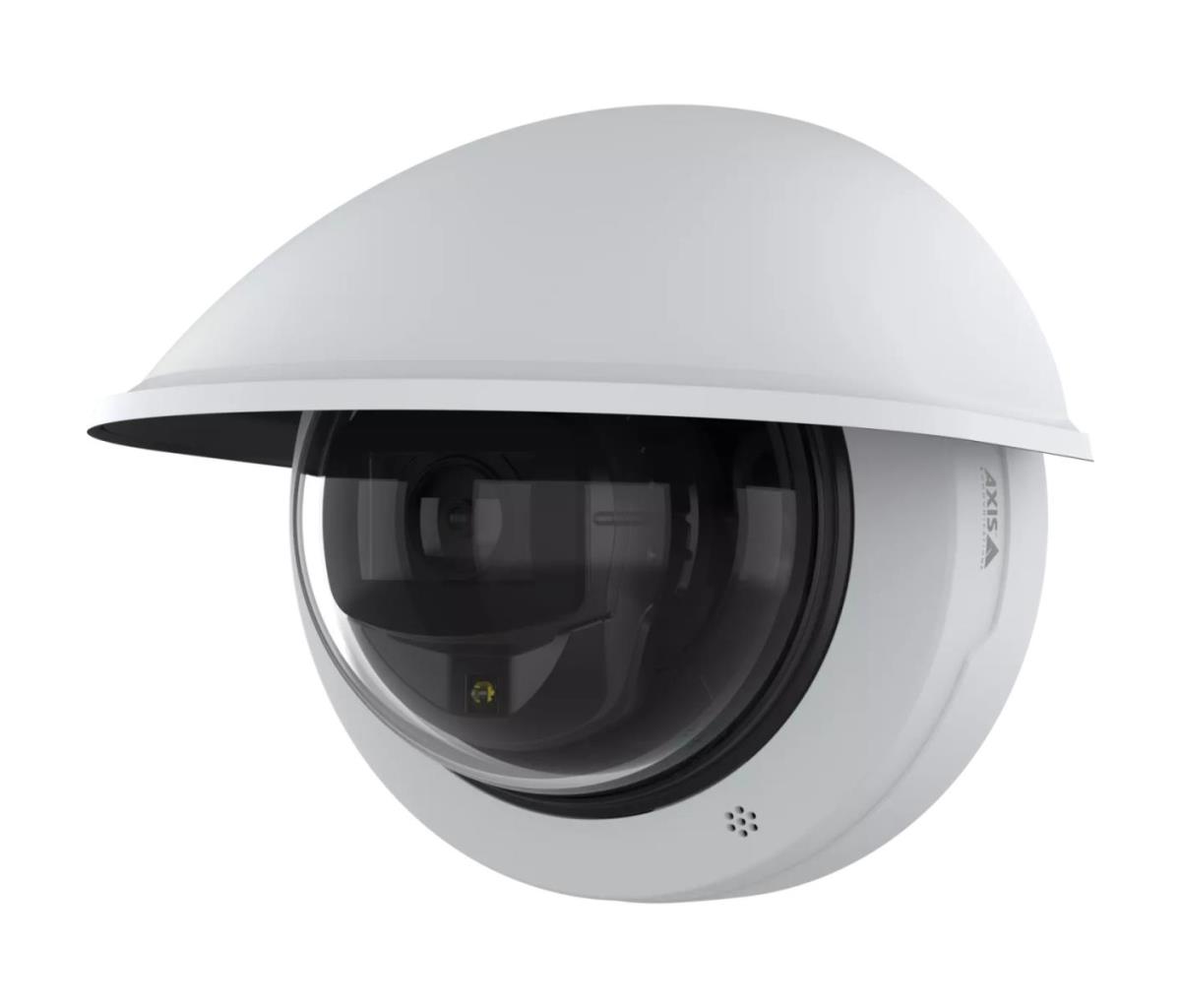

AXIS M4225-LVE Dome Camera
This compact, varifocal dome camera offers great images in 2 MP. It comes preinstalled with AXIS Object Analytics, as well as AXIS Audio Analytics to detect and classify specific sounds as well as sudden changes in sound volume.
Great images, every time
AXIS M4225-LVE delivers great image quality in 2 MP. Featuring a varifocal lens with 100°-38° field of view and remote zoom and focus capabilities, it can be adapted for close-ups and overviews without the need for hands-on fine tuning. Thanks to Lightfinder 2.0 and Forensic WDR, it provides details even in challenging light conditions. Plus, OptimizedIR allows for surveillance in total darkness without the need for extra lighting. Furthermore, Axis Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
Powerful with strong security
Featuring a deep learning processing unit (DLPU), AXIS M4225-LVE lets you run advanced features and powerful analytics on the edge. For instance, it comes preinstalled with AXIS Object Analytics to detect, classify, track, and count objects such as humans and vehicles. It includes an acoustic sensor, so it’s out-of-the-box-ready for AXIS Audio Analytics which can detect and classify specific sounds as well as sudden changes in sound volume. In addition, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified secure cryptographic key storage and operations.
Small and discreet
This compact and discreet dome camera blends in with any environment. There’s also a smoked dome available as an accessory, so you can disguise which way the camera is pointing. This IP66- and IK10-rated camera has an operating temperature range from -30°C to 50°C (-22°F to 122°F). Plus, the included weathershield offers extra protection.
| Performance | |
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Auto-tracking | Yes |
| Tour recording | Yes |
| Preset points | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Design | |
| Form factor | Dome |
| Mounting type | Wall |
| Product colour | Black, White |
| LED indicators | Yes |
| Housing material | Plastic, Polycarbonate (PC) |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Weatherproof | Yes |
| Camera | |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.03 lx |
| Angle of rotation | 360ø |
| Lens viewing angle, horizontal | 100ø |
| Lens viewing angle, vertical | 52ø |
| Tilt angle range | -10 - 65ø |
| Pan range | -180 - 180ø |
| Camera pixel size | 2.9 æm |
| Camera shutter speed | 1/20000 - 1.5 s |
| Panoramic camera | |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Focal length range | 3.2 - 7.2 mm |
| Auto focus | Yes |
| Maximum aperture number | 2.7 |
| Minimum aperture number | 2.9 |
| Detect distance (wide) | 43.7 m |
| Detect distance (tele) | 101.8 m |
| Observe distance (wide) | 17.4 m |
| Observe distance (tele) | 40.4 m |
| Recognize distance (wide) | 8.8 m |
| Recognize distance (tele) | 20.4 m |
| Identify distance (wide) | 4.4 m |
| Identify distance (tele) | 10.2 m |
| Closest focusing distance | 1 m |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Supported graphics resolutions | 320 x 240, 640 x 360, 1280 x 960, 1920 x 1080 (HD 1080) |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Flip & mirror | Yes |
| Text caption overlay | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Audio | |
| Audio detection | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Streaming method | Multicast |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8000 MB |
| RAM capacity | 1000 MB |
| Security | |
| Security algorithms | EAP-TLS, HTTPS, MSCHAPv2, PEAP, TLS |
| Privacy protection | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Line crossing detection, Moving object |
| Human and vehicle targets classification | Yes |
| Management features | |
| Cloud-managed | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 2.7 W |
| Power consumption (max) | 10.5 W |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 112 mm |
| Height | 126 mm |
| Weight | 540 g |
| Sustainability | |
| Compliance certificates | BSMI, CE, EAC, RCM, REACH, RoHS, Trade Agreements Act (TAA), UKCA, UL, VCCI, cUL |
| Packaging content | |
| Number of cameras | 1 |
| Sun shield included | Yes |
| Manual | Yes |
| Other features | |
| Doesn't contain | Brominated Flame Retardant (BFR), CFR, PVC |
| Warranty | |
| Base Warranty | Non Non |
