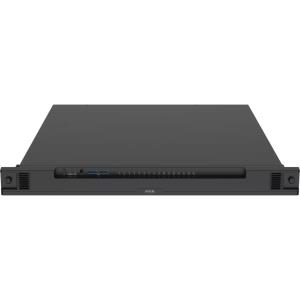

AXIS Camera Station S2224 Mk II Rack Appliance
This 24-channel rack appliance includes everything you need to run your complete surveillance system such as AXIS Camera Station Pro licenses, a 24-port PoE switch, and 12 TB of storage. It comes with pre-loaded software and tools to minimize installation time.
Powerful and versatile
This rack appliance is ideal in larger installations such as manufacturing sites and commercial buildings. With 24 channels and AXIS Camera Station Pro licenses included, it gives you complete control, and you can run your entire solution on-premises. It comes with two empty bays for easy storage expansion, and support for AXIS Camera Station Cloud Storage if recording in the cloud is preferred. Plus, it supports multiple RAID configurations (levels 0/1/5/10) for flexible system storage and redundancy. Built using powerful components, this powerful recorder supports AI applications such as Smart search 2. Furthermore, the built-in switch features an additional uplink port for easy and cost-efficient system expansion using AXIS S30 Recorder Series.
Easy to install and maintain
It comes preloaded with software and tools to help you set up and maintain your system. For instance, AXIS Recorder Toolbox includes an intuitive wizard to set up hostname, network settings, and date and time settings. It also includes a dashboard providing information on the built-in switch including uptime, current configuration, and basic settings. This all-in-one device provides everything you need to support your operations and update and maintain your system — all from one supplier. What’s more, advanced replacement service (RMA) and a 5-year hardware warranty ensure trouble-free ownership and better control over total costs.
Created with cybersecurity in mind
This reliable recording solution offers high-security features and standards. It offers an encrypted operating system and recordings with a FIPS 140-2 Level 2 certified TPM. Produced in a TAA-designated country, this appliance complies with NDAA FY19 and FY2023 and comes with a Software Bill of Materials (SBOM), ensuring compliance with strict regulations. Secure boot protects the system and ensures the recorder only runs a trusted operating system. Furthermore, the connected devices are physically isolated from the external network, reducing the risk of cyberattacks from the corporate network or the internet.
| Performance | |
| Video input channels | 24 channels |
| Number of simultaneously playbacked channels | 48 channels |
| Maximum resolution | 7680 x 4320 pixels |
| Supported resolutions | 7680 x 4320, 3840 x 2160, 1920 x 1080, 1280 x 720 |
| Internal memory | 16000 MB |
| Internal memory type | DDR5 |
| Maximum frame rate | 30 fps |
| Wireless LAN features | |
| Wi-Fi | No |
| Hard drive | |
| Number of HDDs installed | 2 |
| HDD capacity | 6 TB |
| Number of HDDs supported | 4 |
| Total installed storage capacity | 2 GB |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Solid state drive | |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 24 |
| Power over Ethernet (PoE) | Yes |
| HDMI ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Fiber ports quantity | 1 |
| Networking standards | IEEE 802.3at |
| Features | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Certification | FIPS 140-2 Level 2, EN 55035, EN 55032 Class A EN 61000-3-2, EN 61000-3-3, RCM AS/NZS CISPR 32 Class A, ICES(A)/NMB(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, CNS 15936, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, RCM AS/NZS 62368. 1:2018, IS 13252 |
| Processor | |
| Built-in processor | Yes |
| Power | |
| Power consumption (max) | 130 W |
| Power consumption (typical) | 110 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Total Power over Ethernet (PoE) budget | 260 W |
| System requirements | |
| Windows operating systems supported | Windows 11 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 65 øC |
| Storage relative humidity (H-H) | 10 - 90% |
| Technical details | |
| Compliance certificates | BIS, BSMI, CE, Federal Communications Commission (FCC), KC, Norma Oficial Mexicana (NOM), RCM, Trade Agreements Act (TAA), UL, VCCI, cUL |
| Weight & dimensions | |
| Width | 476 mm |
| Depth | 440 mm |
| Height | 45 mm |
| Weight | 11 kg |
| Packaging content | |
| Cables included | AC |
