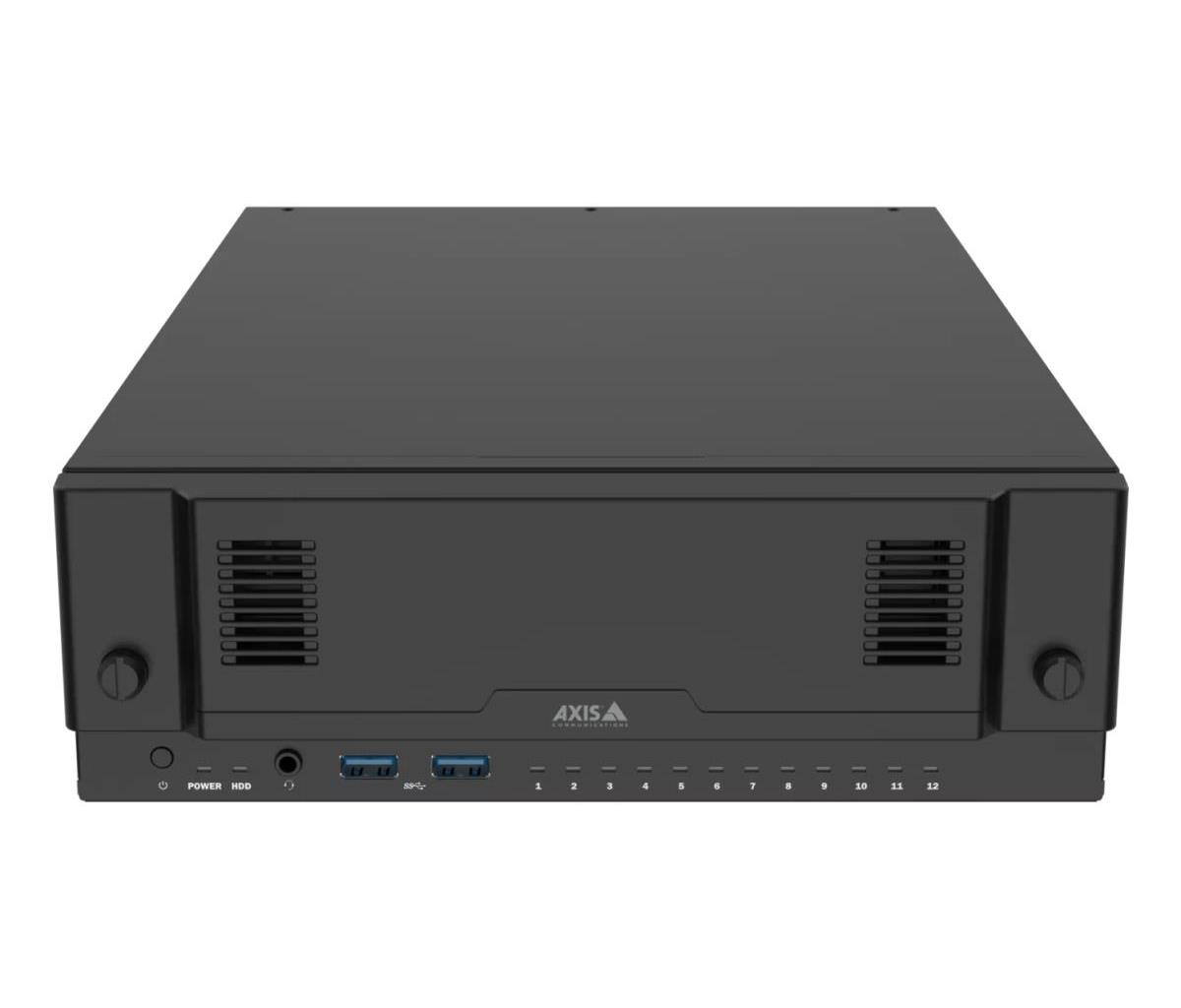

AXIS Camera Station S2212 Mk II Standalone Appliance
This 12-channel standalone appliance includes everything you need to run your complete surveillance system such as AXIS Camera Station Pro licenses, a 12-port PoE switch, and 6 TB of storage. It comes with pre-loaded software and tools to minimize installation time.
Powerful and versatile
This standalone appliance is compact and silent and won’t disturb local operations, ideal for example, in coffee shops, retail stores, and offices. With 12 channels and AXIS Camera Station Pro licenses included, it gives you complete control, and you can run your entire solution on-premises. And, it provides 10 AXIS Audio Manager Pro licenses when installing the software to the server. It comes with one empty bay for easy storage expansion, and support for AXIS Camera Station Cloud Storage if recording in the cloud is preferred. Built using powerful components, it supports AI applications such as Smart search 2. Furthermore, the built-in switch features an additional uplink port for easy and cost-efficient system expansion using AXIS S30 Recorder Series.
Easy to install and maintain
It comes preloaded with software and tools to help you set up and maintain your system. For instance, AXIS Recorder Toolbox includes an intuitive wizard to guide you setting up hostname, network settings in different environments, and date and time settings. It also includes a dashboard providing information on the built-in switch configuration, PoE management functions and troubleshooting tools. This all-in-one device provides everything you need to support your operations and update and maintain your system — all from one supplier. What’s more, advanced replacement service (RMA) and a 5-year hardware warranty ensure trouble-free ownership and better control over total costs.
Created with cybersecurity in mind
This reliable recording solution offers high-security features and standards. It offers an encrypted operating system and recordings with a FIPS 140-2 Level 2 certified TPM. Produced in a TAA-designated country, this appliance complies with NDAA FY19 and comes with a Software Bill of Materials (SBOM), ensuring compliance with strict regulations. Secure boot protects the system and ensures the recorder only runs a trusted operating system. Furthermore, the connected devices are physically isolated from the external network, reducing the risk of cyberattacks from the corporate network or the internet.
| Performance | |
| Video input channels | 12 channels |
| Video recording modes | 720p, 1080p |
| Maximum resolution | 1920 x 1080 pixels |
| Maximum frame rate | 30 fps |
| Input bandwidth | 192 Mbit/s |
| Wireless LAN features | |
| Security algorithms | FIPS 140-2 |
| Hard drive | |
| Number of HDDs installed | 1 |
| HDD capacity | 6 TB |
| Number of HDDs supported | 2 |
| Total installed storage capacity | 6 TB |
| Maximum storage capacity | 12000 TB |
| Solid state drive | |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 14 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 12 |
| HDMI output | Yes |
| HDMI ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Fiber ports quantity | 1 |
| Networking standards | IEEE 802.3at |
| Features | |
| Certification | UL/cUL, BIS, CE, KC, VCCI, RCM, BSMI, FCC, NOM |
| Processor | |
| Built-in processor | Yes |
| Power | |
| Power consumption (max) | 95 W |
| Power consumption (typical) | 75 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Total Power over Ethernet (PoE) budget | 135 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 65 øC |
| Storage relative humidity (H-H) | 10 - 90% |
| Technical details | |
| Compliance certificates | Electromagnetic Compatibility (EMC), Trade Agreements Act (TAA) |
| Weight & dimensions | |
| Width | 230 mm |
| Depth | 330 mm |
| Height | 78 mm |
| Weight | 5.8 kg |
| Warranty | |
| Base Warranty | Non Non |
