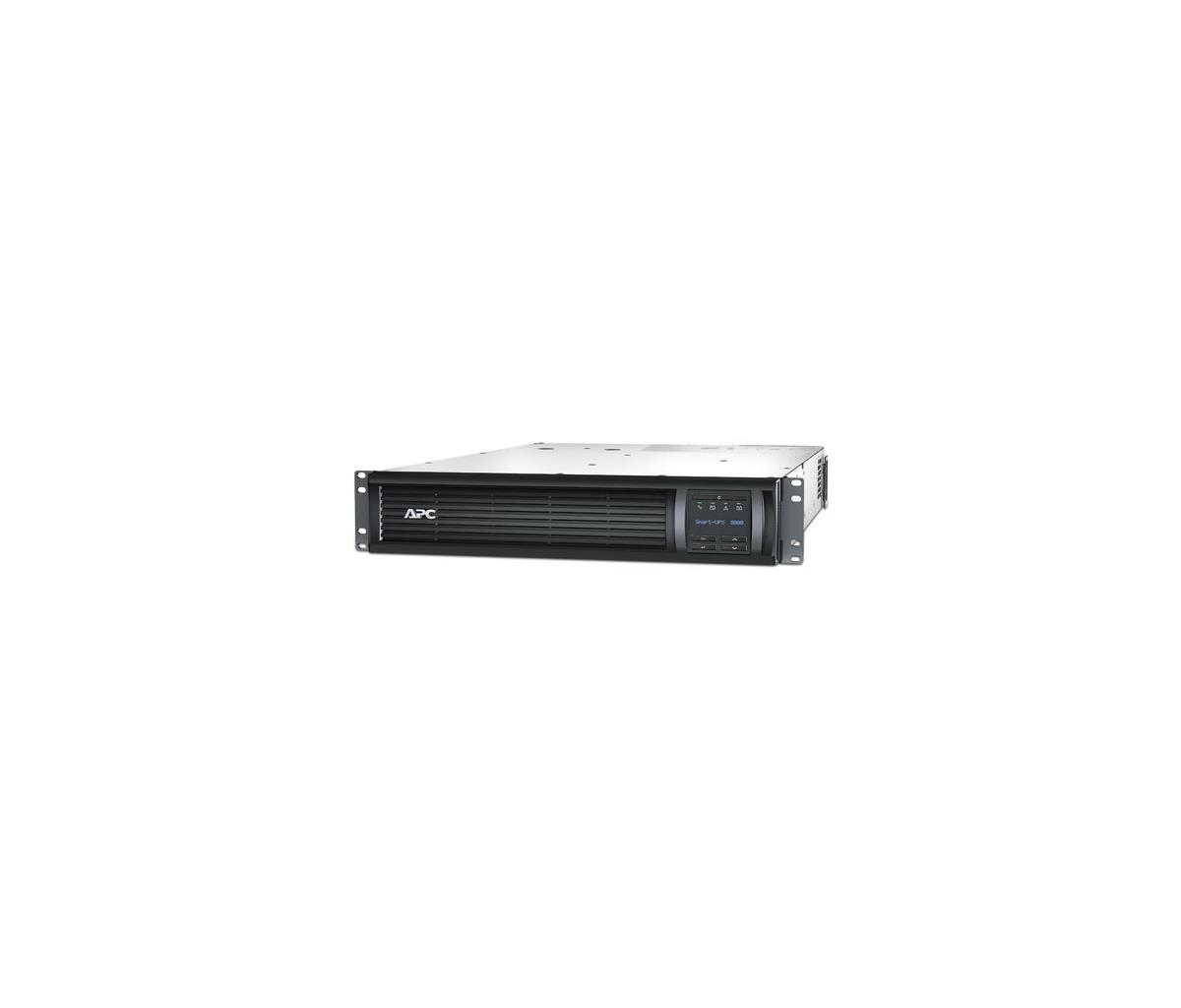

Smart UPS 3000va/2700watts Input:120v/ Output:120v Rm 2u LCD
ITCurry #: 0280A740 | Article #: SMT3000RM2U-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Outlet group control
Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).
Sequenced shutdown and restart
Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).
InfraStruXure Central compatible
Enables centralized management via APC InfraStruXure® Central.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Sine wave output
Eliminates humming and heat generated when powering tubelights and fans.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Disconnected battery notification
Warns when a battery is not available to provide backup power.
| Features | |
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Input operation voltage (min) | 75 V |
| Input operation voltage (max) | 154 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 120 V |
| Surge energy rating | 459 J |
| Efficiency | 98% |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Ports & interfaces | |
| AC outlet types | NEMA 5-15R, NEMA 5-20R |
| AC outlets quantity | 8 AC outlet(s) |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 2U |
| Cable length | 2.44 m |
| Product colour | Black |
| Certification | CSA,FCC 15 A,UL 1778 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -15 - 45 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Width | 480 mm |
| Depth | 683 mm |
| Height | 86 mm |
| Weight | 44.3 kg |
| Package weight | 51.7 kg |
| Other features | |
| Battery type | RBC43 |
| Interface | USB |
| Nominal output voltage | 120 V |
| Nominal input voltage | 120 V |
| Package dimensions (WxDxH) | 600 x 980 x 254 mm |
| Warranty | |
| Base Warranty | Non Non |
