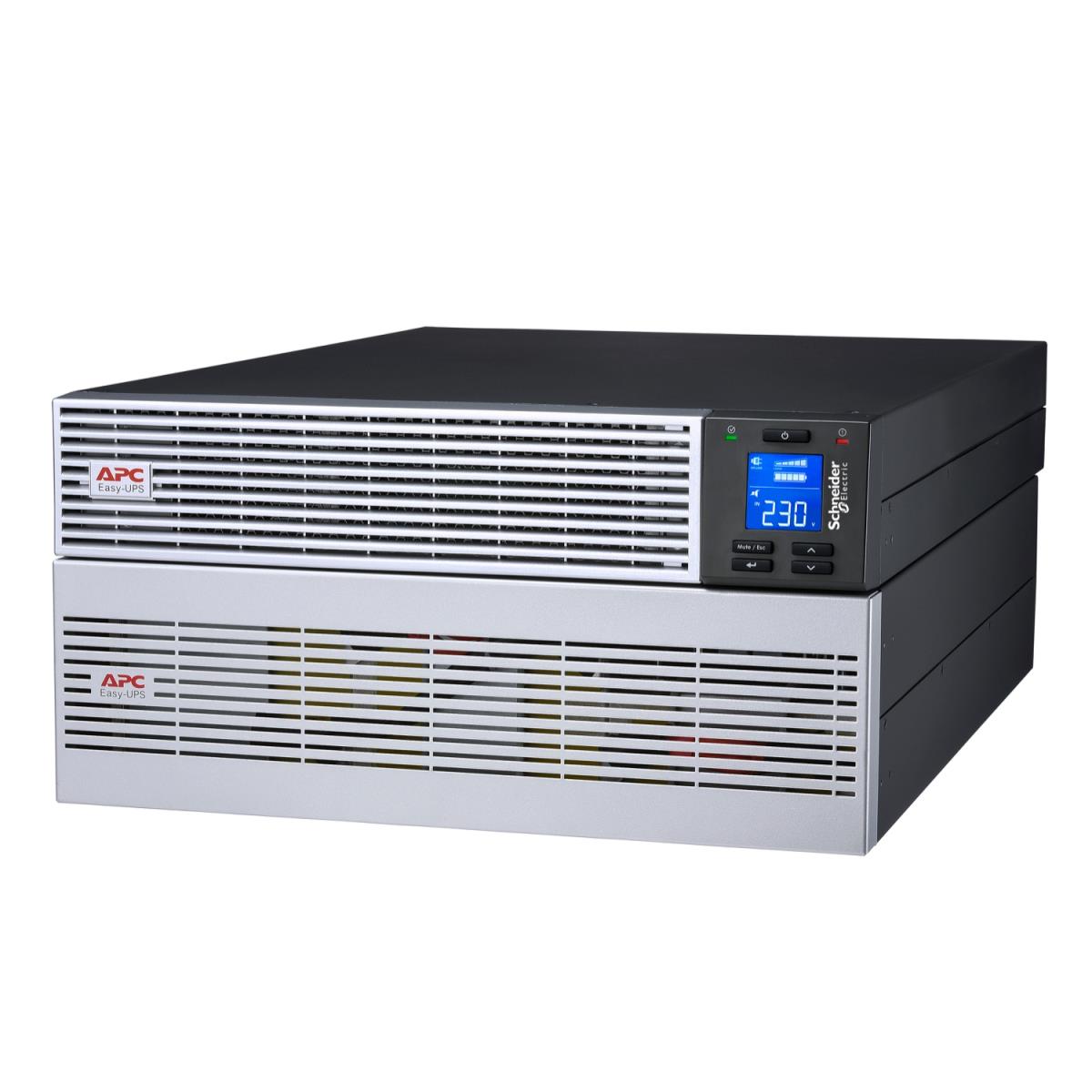

Easy UPS On-Line, 6kVA/6kW, Lithium-ion, Rack/Tower 5U, 230V, 1 Hard wire (1P+N+E) outlet, Intelligent Card Slot, Extended runtime, W/ Rail Kit
ITCurry #: 0280M198 | Article #: SRVL6KRILRK-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Single Phase True Double-conversion On-Line UPS Lithium-Ion battery has a lifetime of eight to ten years which offers reliable support and extends the useful life of your UPS. 230V 6000VA Extendeded runtime model with rail kit Longer runtime and faster recharge time compared to VRLA generation. More real output power in watts 0.9 PF Up to 93.5% efficiency in on-line double conversion mode and up to 97% in ECO mode saves utility and cooling costs without compromising performance or reliability. Its dimensions are 438mm (width) x 686.4mm (depth) x 133mm (height) 5U in total which includes 2U Power module and 3U external battery pack. The net weighs is 69.7kg. Up to 3 external lithium-ion battery packs support at maximum. It's ideal for Micro Data Center and Server room, Industrial Automation , Equipment Manufacturing. CB, CE, UN38.3 External Battery Pack, Managemnt Card (Network Management card, Dry contact card, modbus Card) options are available. Rack/ Tower convertible design with default accessory kit.
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 6 kVA |
| Output power | 6000 W |
| Waveform | Sine |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 230 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 600 J |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Single-phase input voltage supported | 230 V |
| Efficiency | 93.5% |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Noise level | 57.3 dB |
| Audible alarm modes | Alarm when on battery, Overload alarm |
| Ports & interfaces | |
| USB port | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery voltage | 48 V |
| Battery life (max) | 10 year(s) |
| Battery recharge time | 5 h |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 5U |
| Product colour | Black, Silver |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 50 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainable packaging | No |
| SCIP number | 780cb2d6-f852-4c3c-987f-e705629194ca |
| Take-back system | No |
| Packaging without single use plastic | No |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | CB; CE; UKCA; RCM; IRAM; TISI; UN 38.3; IEC 62619 |
| Packaging content | |
| Cables included | Phone (RJ-11), RJ-45, RS-232, USB cable |
| Manual | Yes |
| Weight & dimensions | |
| Width | 438 mm |
| Depth | 685 mm |
| Height | 217 mm |
| Weight | 69.2 kg |
| Packaging data | |
| Package width | 600 mm |
| Package depth | 800 mm |
| Package height | 652 mm |
| Package weight | 8.59 kg |
| Logistics data | |
| Customs product code (TARIC) | 8504409590 |
| Total carbon footprint (kg of CO2e) | 789.2474559231015 |
| Country of origin | China |
| Other features | |
| Output connection type | hard wire 3-wire (1P + N + E) for 1 zone(s) |
| Output voltage | 230 V |
| Mounting | horizontal and vertical |
| Warranty | |
| Base Warranty | Non Non |
