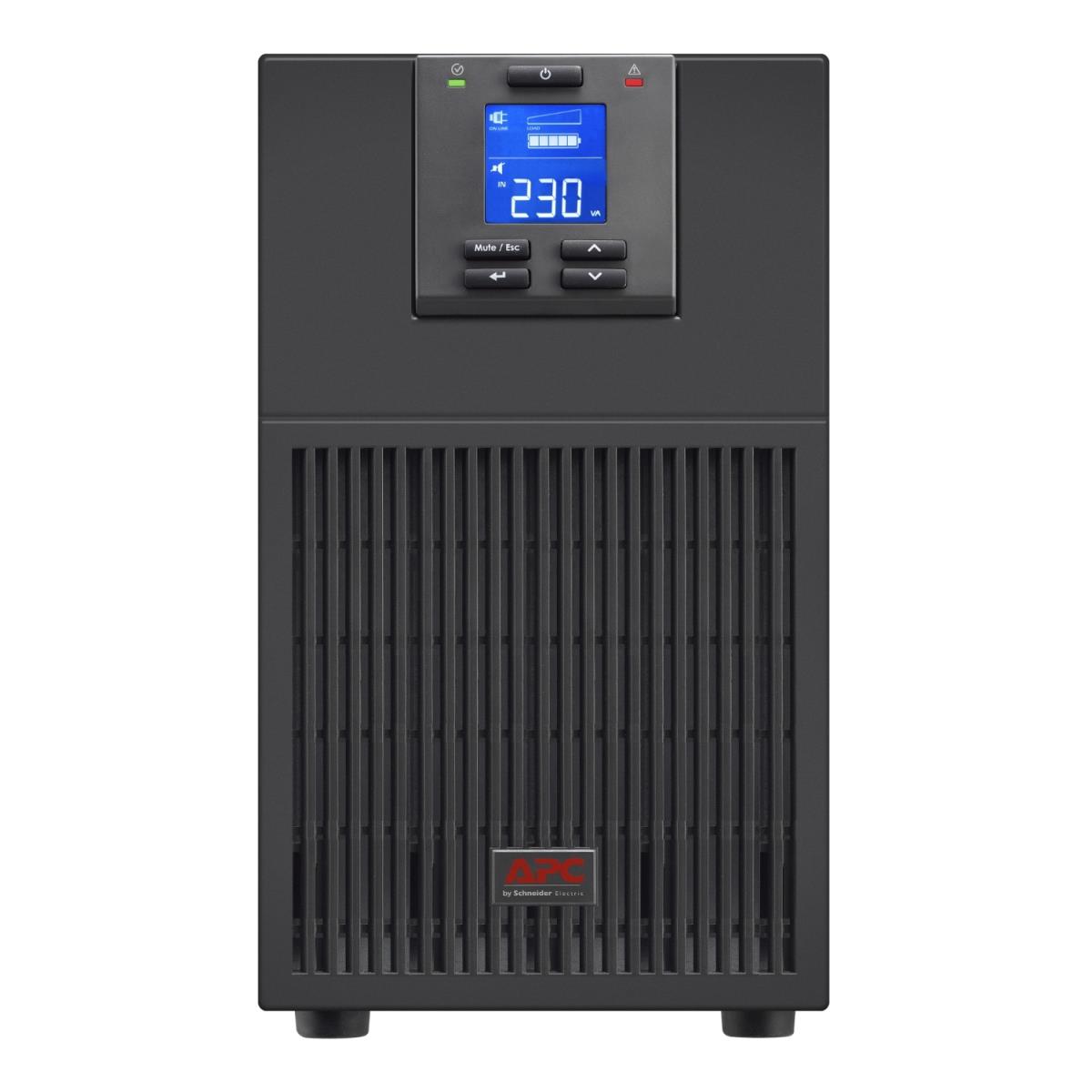

Easy UPS On-Line, 1000VA/900W, Tower, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD
ITCurry #: 0280L681 | Article #: SRV1KI-E-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

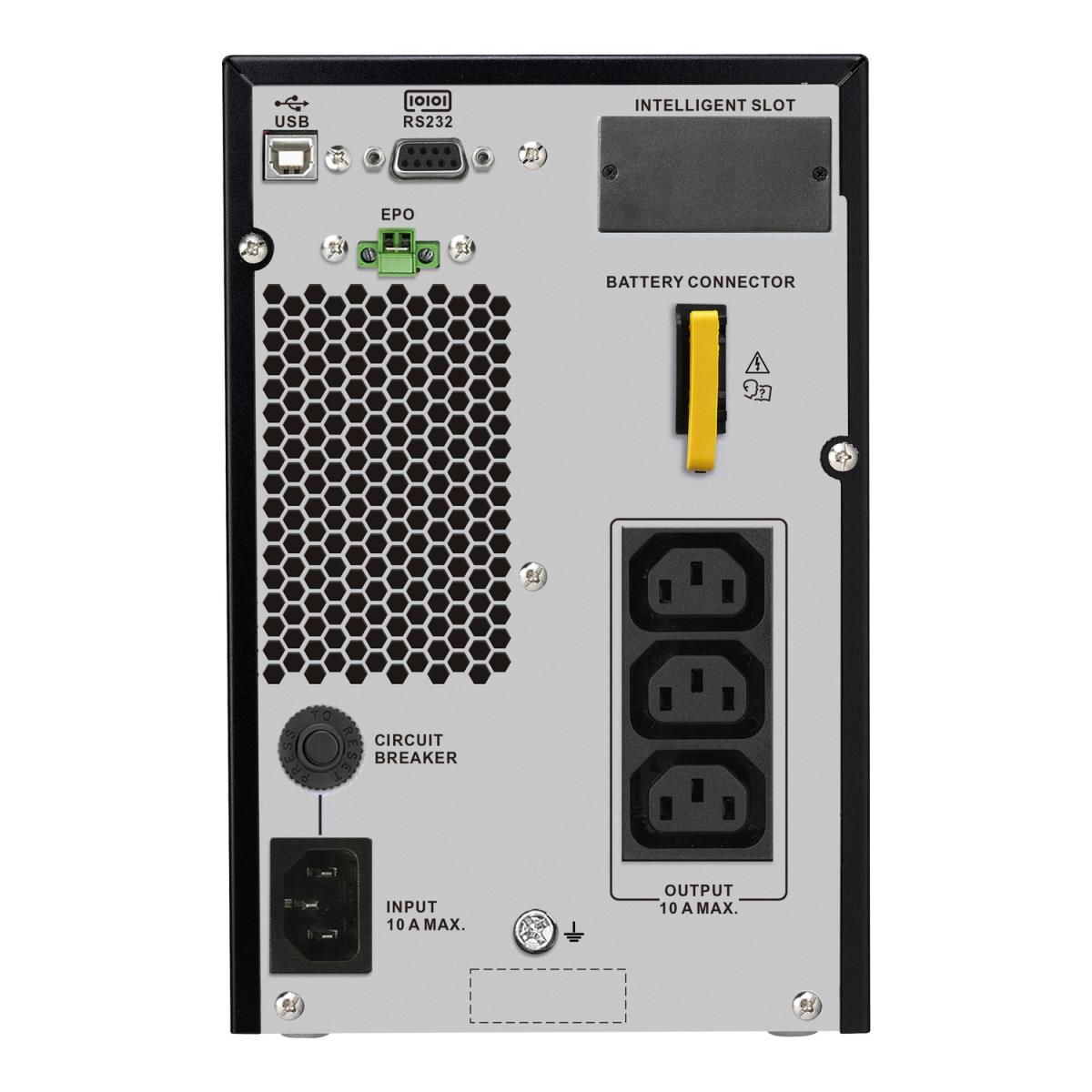

his APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV203. The Easy UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1 kVA |
| Output power | 900 W |
| Waveform | Sine |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 285 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 945 J |
| Heat dissipation | 380 BTU/h |
| Efficiency | 88% |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 50 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Power source type | AC |
| Detachable power cord | Yes |
| Ports & interfaces | |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 3 AC outlet(s) |
| USB port | Yes |
| USB port type | USB Type-B |
| RS-232 ports | 1 |
| Emergency Power Off (EPO) connector | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 24 V |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 4 h |
| Design | |
| Form factor | Tower |
| Cable length | 1.5 m |
| Product colour | Black |
| Control type | Buttons |
| Display type | LCD |
| LED indicators | Status |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 50 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Certification | CE UKCA TISI |
| Packaging content | |
| Rack mount kit | No |
| Cables included | Input power cable, Output power cable, RS-232, USB cable |
| Manual | Yes |
| Weight & dimensions | |
| Width | 145 mm |
| Depth | 288 mm |
| Height | 223 mm |
| Weight | 9.6 kg |
| Packaging data | |
| Package width | 235 mm |
| Package depth | 365 mm |
| Package height | 330 mm |
| Package weight | 10.9 kg |
| Warranty | |
| Base Warranty | Non Non |
