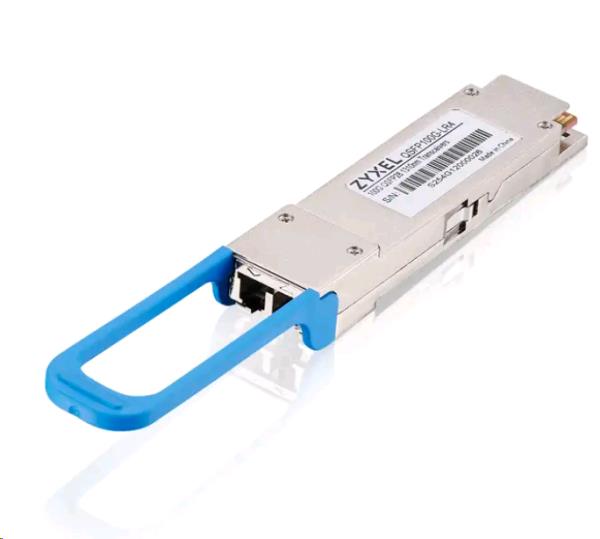

Transceiver Module 100g Qsfp28 1310nm Longrange
ITCurry #: 62306055 | Article #: QSFP100G-LR4-ZZ0101F-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The Zyxel transceiver family follows industry standards to assure compatibility with switches from other manufacturers without barrier set by proprietary technologies. The comprehensive product range including 1/10/25/100GbE transceivers, also Direct Attached Cable 1M/3M allows users to plug the proper model onto the network to extend the physical coverage easily
Hot-swappable design facilitates network maintenance
Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be freely added when required, and infrastructure upgrades or transceiver repairs can be done easily by just replacing the transceiver instead of the whole device.
Bi-directional transceivers maximizes usage of existing fiber plant
Traditional fiber optic networking requires two strands of fiber to accomplish communications, in which one strand is reserved for sending signals, while the other is for receiving. On the other hand, bi-directional, dual-wavelength transceivers can establish communications over just one strand of fiber by using two separate optical wavelengths: one receives and the other transmits signals. Transmission capacity can be expanded immediately without additional cost laying new fiber.
Supporting Digital Diagnostics Monitoring Interface (DDMI) SFP enhances management capability
The enhanced digital interface enables a real time link to be established between the switch and the SFP transceiver. This enables the switch to access operating parameters within the fiber link. This includes digital features such as soft control and monitoring of SFP I/O signals. In addition, the DDMI functionality enables the capability to implement digital alarms and warnings. This feature ensures that the business can be proactive in preventative maintenance of the network and ensure business continuity.
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP28 |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LR4 |
| Wavelength | 1310 nm |
| Ethernet interface type | 100 Gigabit Ethernet |
| Networking standards | IEEE 802.3z |
| Fiber ethernet cabling technology | 100GBASE |
| Duplex system | Full |
| Features | |
| Product colour | Silver |
| Form factor | QSFP28 |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Easy to install | Yes |
| Brand compatibility | MSA Compliant |
| Power | |
| Input voltage | 3.135 - 3.465 V |
| Operational conditions | |
| Minimum operating temperature | 0 øC |
| Maximum operating temperature | 70 øC |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Weight & dimensions | |
| Width | 118.4 mm |
| Depth | 19 mm |
| Height | 9.5 mm |
| Weight | 45 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
