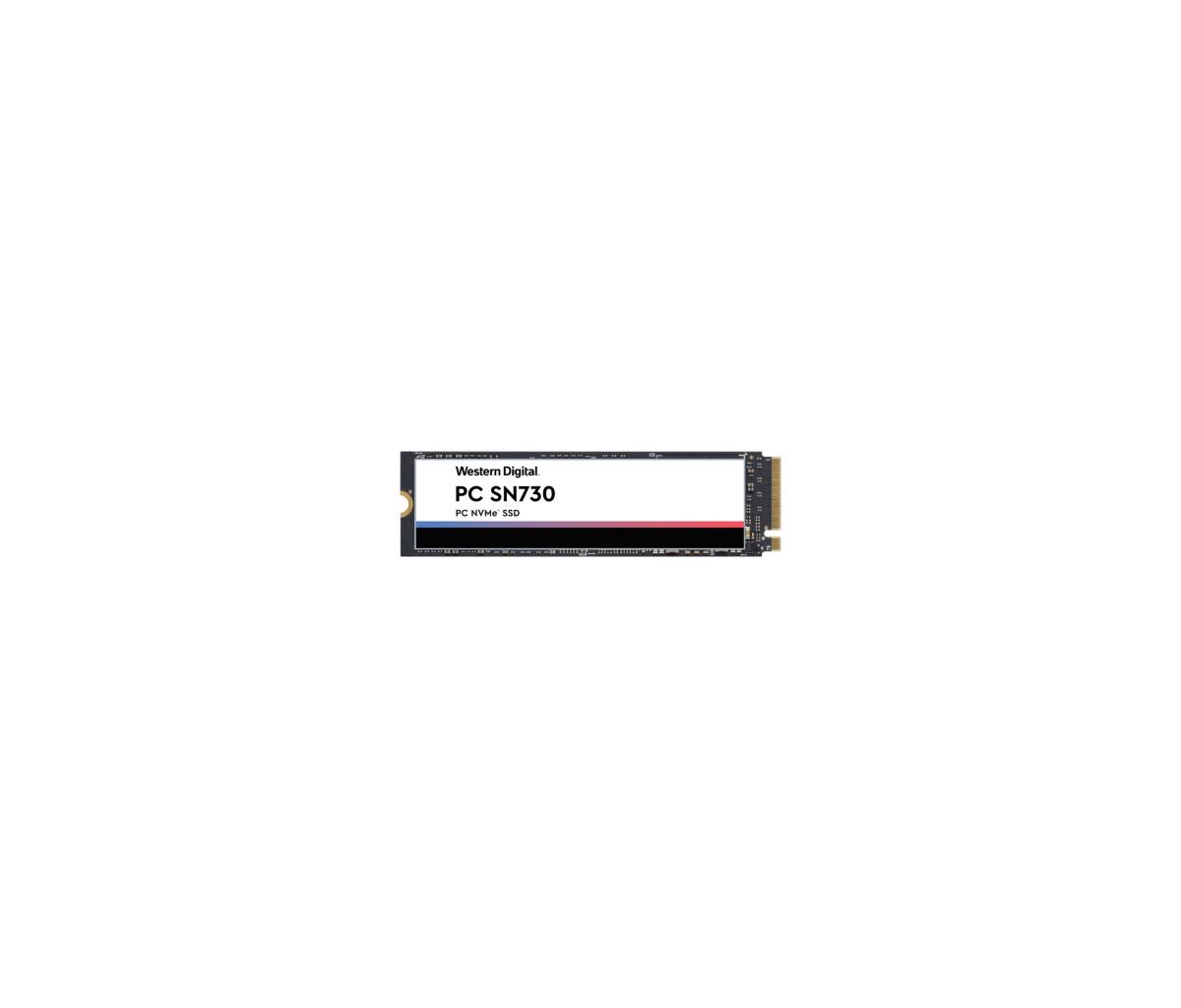

SSD SN730 512GB Pci-e M.2 2280
ITCurry #: 60506080 | Article #: SDBPNTY-512G-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Introducing a New Layer of Performance
With future-ready, scalable NVMe architecture, the Western Digital PC SN730 NVMe SSD is breaking through performance limits of client computing, enabling partners to support higher storage applications in today’s mobile and ultra-thin computing markets. With Sequential Read speeds up to 3,400 MB/s (1TB and 512GB models), the Western Digital PC SN730 NVMe SSD is a fully integrated solution that includes an in-house controller, firmware, and extensive testing providing extended supply longevity in a robust and reliable design.
High Speed
Sequential Read/Write speeds up to 3,400/3,100 MB/s (1TB model)
Low Power
Hardware accelerated architecture enables very low latency and low power
Increased Performance
Scalable NVMe architecture enables an efficient qualification process and maintains significantly higher performance over SATA
Addressing Fast Data at the Edge
Designed for essential applications that require both high performance and low power, the Western Digital PC SN730 dishes out cutting-edge systems that run highest-intensity applications such as 4K/VR video editing, as well as ultra-thin, ultra-mobile or in-field systems without sacrificing performance and capacity.
| Features | |
| NVMe version | 1.3 |
| SSD capacity | 512 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 3.0 |
| NVMe | Yes |
| Memory type | 3D NAND |
| Component for | PC |
| Read speed | 3400 MB/s |
| Write speed | 2700 MB/s |
| Random read (4KB) | 460000 IOPS |
| Random write (4KB) | 400000 IOPS |
| PCI Express interface data lanes | x4 |
| Mean time between failures (MTBF) | 1750000 h |
| TBW rating | 300 |
| Certification | FCC, UL, TUV, KCC, BSMI, VCCI, C-Tick |
| Power | |
| Operating voltage | 3.3 V |
| Current | 1.9 A |
| Power consumption (average) | 0.1 W |
| Power consumption (sleep) | 0.0035 W |
| Weight & dimensions | |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.38 mm |
| Weight | 7.3 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | -55 - 85 øC |
| Operating vibration | 5 G |
| Non-operating vibration | 4.9 G |
| Operating shock | 1500 G |
| Warranty | |
| Base Warranty | Non Non |
