ACS 8000 48-Port Dual-AC Console Server
ITCurry #: N6414945 | Article #: ACS8048DAC-400-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

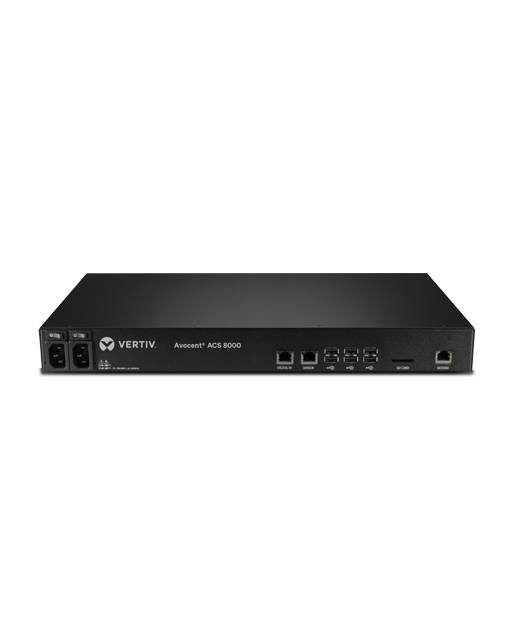

The Avocent ACS 8000 advanced console server offers upgraded and advanced features, that deliver scalable and high-performance solutions for IT administrators. The console server features a dual ARM core processor platform with dual Gigabit Ethernet ports and dual Gigabit fiber ports for redundancy. In addition, there is a sensor port, to connect a variety of sensors for monitoring and logging on the appliance. The serial ports are auto sensing for pin-out and the Avocent ACS 8000 advanced console server also offers robust features to meet the requirements of the demanding data center management applications. Features combine automated discovery tools to ease identification of servers, routers, switches and power devices, connected to any serial port, saving time at initial configuration and installation. To comply with existing data center network access policy, the Avocent ACS 8000 advanced console server provides customizable, multiple access levels for secure management. The console servers provide a complete solution for secure, remote control with advanced console server features, such as enhanced security, data logging and event monitoring. In addition, the Avocent ACS 8000 advanced console server supports network standards, such as Internet Protocol version 6 (IPv6).
| Technical details | |
| Rack mounting | Yes |
| Internal modem | No |
| Event logging | Yes |
| Security | |
| Security algorithms | SNMP, SSH, SSH-2, WPA2-RADIUS |
| IP address filtering | Yes |
| Ports & interfaces | |
| Console port | RS-232 |
| Serial ports quantity | 48 |
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| AC outlet types | C13 coupler |
| Software | |
| Operating system installed | Embedded LINUX |
| Weight & dimensions | |
| Dimensions (WxDxH) | 438 x 241 x 44.5 mm |
| Weight | 3.4 kg |
| Power | |
| Power source type | AC |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 11 W |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | FCC Class A UL (USA) CE Class A (EU) cUL (Canada) ICES-003 (Canada) EN-60950 (EU) VCCI (Japan) CB RCM (Australia) Customs Union (CU) KCC (Korea) |
| Memory | |
| Internal memory | 1000 MB |
| Flash memory | 16000 MB |
| Warranty | |
| Base Warranty | Non Non |
