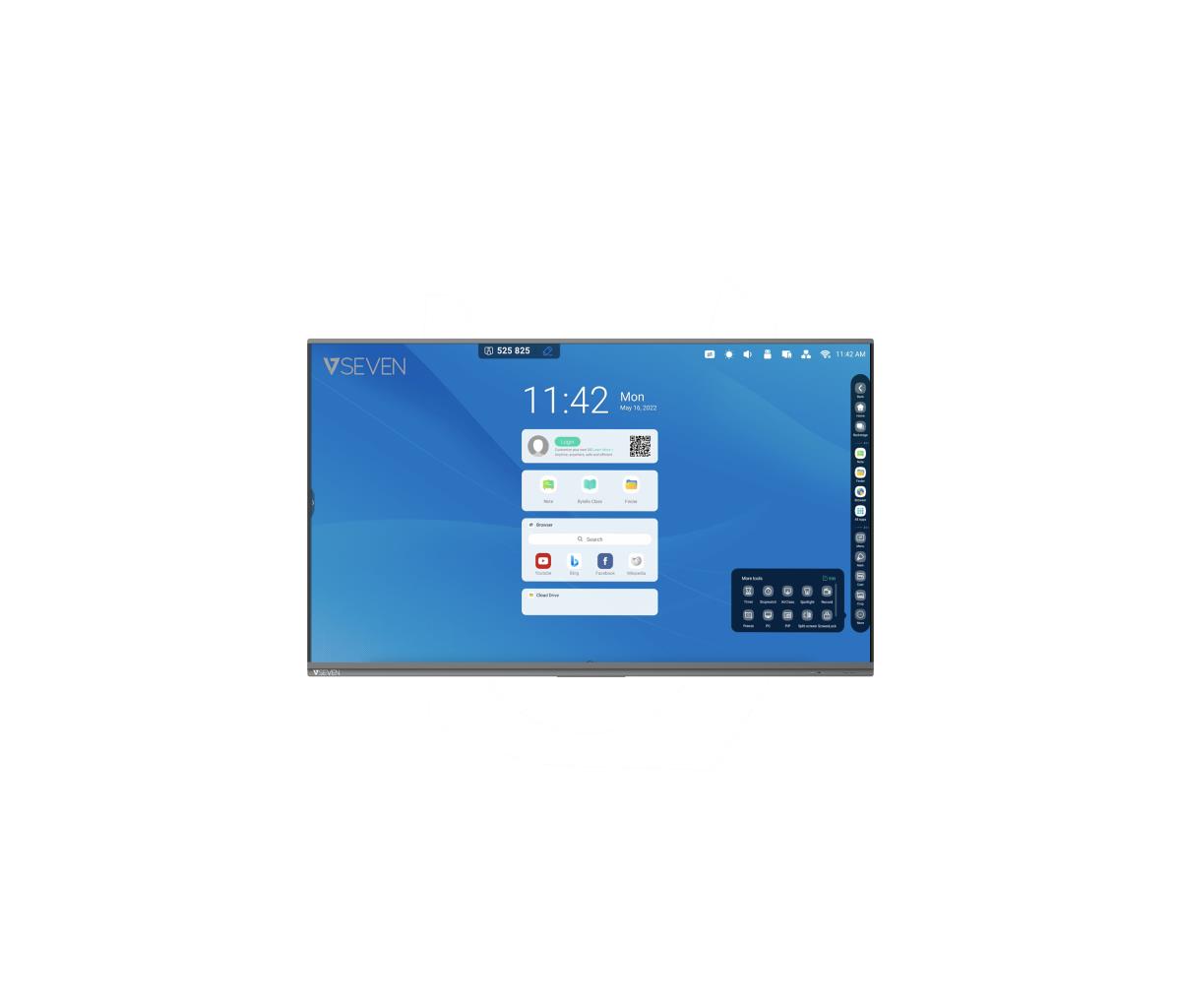

Interactive Flat Panel (ifp) - Ifp7502-v7pro - 75in - 4k 20 Point Touch - Android 11
ITCurry #: 89026561 | Article #: IFP7502-V7PRO-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
V7 PRO Interactive Flat Panel 4K displays allow users to easily collaborate, save and share ideas interactively and digitally in meeting rooms and classrooms. The system uses a powerful quad core processor and graphics chipset with increased memory. It is optimal for the built-in multi-window multitasking applications for leading classrooms or meetings including whiteboard, note taking, web browser, screen sharing and recording, and more. With Bytello Share, you can share and receive content between the IFP and Windows, Mac OS, Chrome OS, Android, and iOS Devices using the included application or using Miracast, ChromeCast or AirPlay (up to 9 devices split screen at one time). Bytello DMS software included for bulk remote management, status monitoring, volume control, broadcasting and more. With one USB-C cable users can share content, allow 2-way touch, and charge your device with 65W Power Delivery. Connect to a variety of resources and provide a great interactive multimedia environment with 20 point touch, two 16 watt speakers, and a multitude of ports including USB, video, Bluetooth and wired/wireless networking.
| Display | |
| Display diagonal | 190.5 cm (75") |
| Display brightness | 410 cd/mý |
| Display number of colours | 1.07 billion colours |
| Display resolution | 3840 x 2160 pixels |
| Anti-glare screen | Yes |
| Panel type | IPS |
| LED backlighting type | Direct-LED |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 4000:1 |
| Response time | 8 ms |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 20 |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Pixel pitch | 429.6 x 429.6 mm |
| Computer system | |
| User memory | 64 GB |
| RAM capacity | 8 GB |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 32 W |
| Network | |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 3.0 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ports & interfaces | |
| Interface | USB / Bluetooth |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A Touch ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-C |
| HDMI ports quantity | 3 |
| USB Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| OPS slot | 120 |
| Audio output | 1 |
| RS-232 ports | 1 |
| Ergonomics | |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 800 x 400 mm |
| Certification | CE, Energy Star, FCC, RoHS, UL, TUV, WEEE |
| Power | |
| Power consumption (max) | 535 W |
| Power consumption (typical) | 305 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
| System requirements | |
| Mobile operating systems supported | Android 11.0 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 60 øC |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 85.7 mm |
| Depth | 1709.1 mm |
| Height | 1019.5 mm |
| Weight | 49.5 kg |
| Technical details | |
| Compliance certificates | CE, RoHS, WEEE |
| Packaging data | |
| Package width | 225 mm |
| Package depth | 1863 mm |
| Package height | 1140 mm |
| Package weight | 63.9 kg |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Manual | Yes |
| USB cable length | 1.8 m |
| Cables included | HDMI, USB Type-C |
| Remote control included | Yes |
| Batteries included | Yes |
| Quick start guide | Yes |
| Stylus included | Yes |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Logistics data | |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
